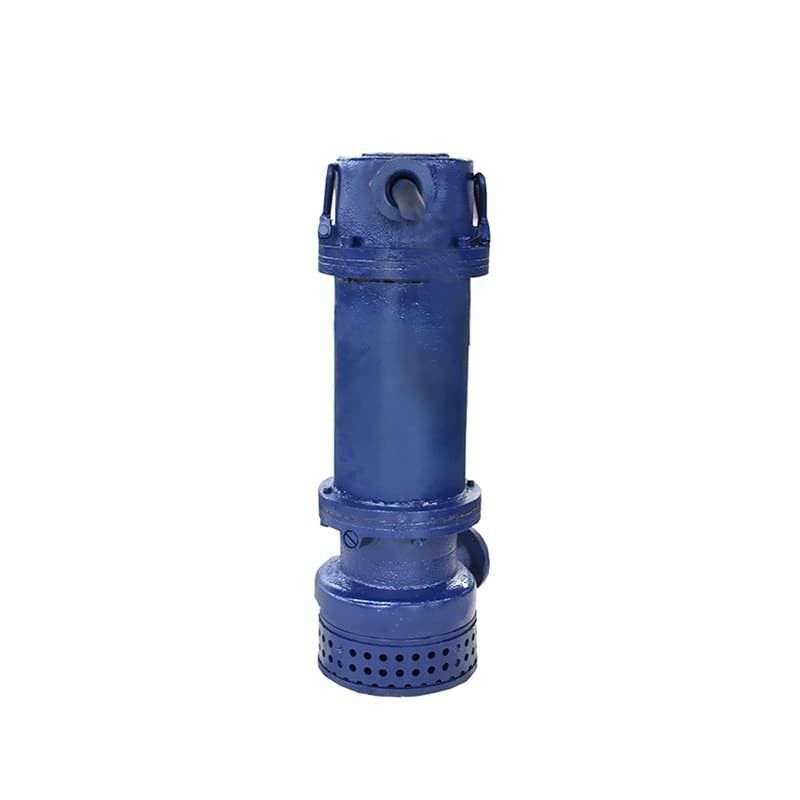

2.2kw 1.6hp 35m³/h 7m Explosion-Proof Submersible Sump Pumps submersible slurry pump Low Head High Discharge Pump For Sewage Water

The WQB35-7-2.2 is an efficient submersible pump designed to meet low flow requirements, suitable for various applications such as light industrial drainage, wastewater treatment, and agricultural irrigation. This pump offers a maximum flow rate of 35 cubic meters per hour (m³/h) with a head reaching up to 7 meters, powered by a robust 2.2 kW motor, ensuring stability and efficiency when handling fluids containing a small amount of suspended particles. The overcurrent components can be made from high-quality materials like 304 or 316 stainless steel, providing excellent corrosion resistance, making it ideal for long-term reliable operation even in environments with chemical substances.

The WQB35-7-2.2 features an optimized hydraulic design that effectively reduces the risk of clogging and enhances overall efficiency. It also comes equipped with high-performance mechanical seals to ensure leak-free operation, thereby reducing maintenance frequency and extending the lifespan of the pump. To further enhance reliability, users can opt for an intelligent monitoring system that provides real-time data on critical parameters such as temperature, pressure, and vibration. This enables preventive maintenance, minimizing downtime due to unexpected failures. The compact design facilitates easy installation and maintenance, making it particularly suitable for use in space-constrained settings.

• Applicable to explosion-proof marked products in areas with explosion-proof requirements.
• Power supply voltage: 380V,400V,440V,460V,660V,50Hz,60Hz,customizable options are available.
• Transport medium temperature: 0-40°C (for temperatures exceeding this limit, alternative pump models suitable for hot water are available).
• PH value of transported medium: 4-10.
• Medium density: ≤1100Kg/m³.
• Maximum submersion depth: 10m.

• The flow parts adopt QBQ surface treatment process, which has excellent wear and corrosion resistance.
• The thickened impeller, pump body, and pump cover effectively extend the service life of the components.
• Suitable for long-term use in environments with corrosive liquids and abrasive particles (such as sediments and gravel).
• The bottom inlet and bottom outlet design ensures strong clogging resistance and high flow capacity, making it suitable for a wider range of applications.
• Simple strcuture, lightweight, easy to install and maintain.
• The pump equipped with cooling jacket, which has high heat dissipation efficiency,could not fully submerged in the medium.

FAQ


Q1: What material options are available for the WQB series pumps?
A: The overcurrent components of the WQB series pumps can be made from 304 or 316 stainless steel, duplex stainless steel, or high-chromium alloys. These materials offer excellent resistance to corrosion and wear, ensuring long-term use even in harsh conditions.

Q2: How do you perform routine maintenance on the WQB series pumps?
A: Routine maintenance involves regular inspections of seals, bearings, and other critical components. It is recommended to establish a maintenance schedule based on specific application conditions and replace parts with OEM-recommended components to ensure optimal performance.

Q3: Can the WQB series pumps handle fluids containing solid particles?
A: Yes, the WQB series pumps are designed with special hydraulic structures that can effectively handle fluids containing a certain proportion of solid particles, but it is important not to exceed the maximum allowable particle size.

Q4: How do you correctly install the WQB series pumps?
A: During installation, ensure that the pump body is vertically placed in the liquid and that the power cables are connected properly. It is recommended to follow specific application conditions and the manufacturer's guidelines for installation.

Q5: What guarantees do I have when buying your products?

A: Our after-sales service implements the "2-4-24 standard". 2-hour response, telephone remote guidance within 4 hours, and solutions within 24 hours. If there is a need, we can provide door-to-door after-sales service.

Q6: I want to be your dealer, what are the conditions?

A: No problem at all, dear, it is recommended that you purchase a sample first to try it out. If you have any special needs and modification suggestions, our technical team is at your service at any time. Looking forward to our further cooperation!
