4kw 3hp 20m³/h 30m Explosion-Proof Submersible Sump Pumps submersible slurry pump Low Head High Discharge Pump For Sewage Water

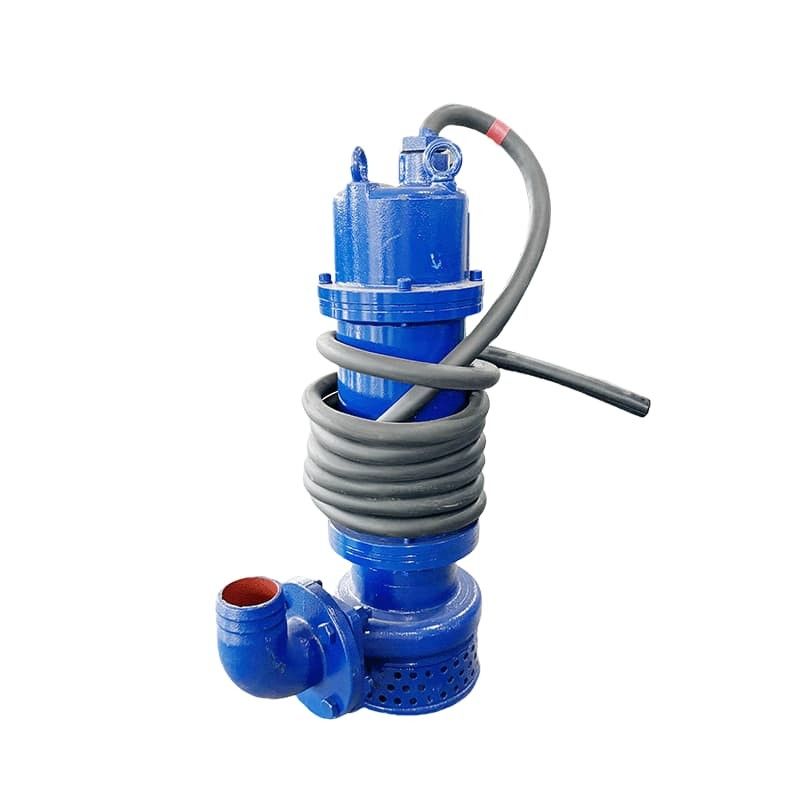

The WQB20-30-4 is an efficient submersible pump designed to meet medium head requirements, suitable for a variety of applications such as wastewater treatment, industrial drainage, and water removal at construction sites. This pump offers a maximum flow rate of 20 cubic meters per hour (m³/h) with a head reaching up to 30 meters, powered by a robust 4 kW motor, ensuring stability and efficiency when handling complex fluids. The overcurrent components are made from high-quality materials like 304 or 316 stainless steel, providing excellent corrosion resistance, making it ideal for long-term reliable operation in harsh environments.

The WQB20-30-4 features innovative hydraulic design that effectively reduces the risk of clogging and enhances energy efficiency. It also comes equipped with high-performance sealing technology to ensure leak-free operation, thereby reducing maintenance frequency and extending the lifespan of the pump. To further enhance reliability, users can opt for an intelligent monitoring system that provides real-time data on critical parameters such as temperature, pressure, and vibration. This enables predictive maintenance, minimizing unexpected downtime. The compact design facilitates easy installation and maintenance, making it particularly suitable for use in space-constrained areas.

• Applicable to explosion-proof marked products in areas with explosion-proof requirements.
• Power supply voltage: 380V,400V,440V,460V,660V,50Hz,60Hz,customizable options are available.
• Transport medium temperature: 0-40°C (for temperatures exceeding this limit, alternative pump models suitable for hot water are available).
• PH value of transported medium: 4-10.
• Medium density: ≤1100Kg/m³.
• Maximum submersion depth: 10m.

• The flow parts adopt QBQ surface treatment process, which has excellent wear and corrosion resistance.
• The thickened impeller, pump body, and pump cover effectively extend the service life of the components.
• Suitable for long-term use in environments with corrosive liquids and abrasive particles (such as sediments and gravel).
• The bottom inlet and bottom outlet design ensures strong clogging resistance and high flow capacity, making it suitable for a wider range of applications.
• Simple strcuture, lightweight, easy to install and maintain.
• The pump equipped with cooling jacket, which has high heat dissipation efficiency,could not fully submerged in the medium.

FAQ


Q1: What material options are available for the WQB series pumps?
A: The overcurrent components of the WQB series pumps can be made from 304 or 316 stainless steel, duplex stainless steel, or high-chromium alloys. These materials offer excellent resistance to corrosion and wear, ensuring long-term use even in harsh conditions.

Q2: How do I place an order?
A: Send us an inguiry - Tell us your needs and usage scenarios - Customize drawings and samples - Discuss details - Modify and confirm - Sign a contract/Deposit - Mass production - Final payment and delivery - Further cooperation.

Q3: How to transport?
A: We have a variety of transportation options. If there is a port in your area, sea transportation is an economical choice. If you are in a hurry to use it, we can ship it by air for you. If you don’t have your own freight forwarder, we can contract the relevant work from departure to arrival at the destination port.

Q4: How do you perform routine maintenance on the WQB series pumps?
A: Routine maintenance involves regular inspections of seals, bearings, and other critical components. It is recommended to establish a maintenance schedule based on specific application conditions and replace parts with OEM-recommended components to ensure optimal performance.

Q5: What guarantees do I have when buying your products?

A: Our after-sales service implements the "2-4-24 standard". 2-hour response, telephone remote guidance within 4 hours, and solutions within 24 hours. If there is a need, we can provide door-to-door after-sales service.

Q6: I want to be your dealer, what are the conditions?

A: No problem at all, dear, it is recommended that you purchase a sample first to try it out. If you have any special needs and modification suggestions, our technical team is at your service at any time. Looking forward to our further cooperation!
