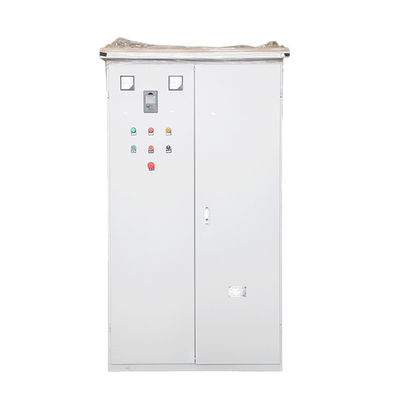

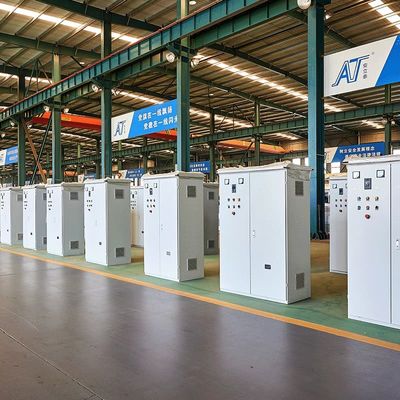

Submersible pump control cabinet Customizable center console

The Variable Frequency Drive (VFD) Control Cabinet is meticulously designed and manufactured by technical personnel who have absorbed advanced domestic and international experiences in pump control over years of production and application, continuously improving and optimizing the design.

The VFD Control Cabinet is primarily used to adjust the operating frequency of equipment, reduce energy consumption, and enable smooth startup,minimizing the damage caused by high inrush currents during direct motor startup.It features analog input, PID control, pump switching control, communication capabilities, macro functions, and multi-stage speed control, making it widely applicable for automatic control in various agricultural and industrial production scenarios. The VFD Control Cabinet mainly controls the operational status of the motor by adjusting the frequency and voltage, achieving precise control over motor speed and torque.The key functions include overload, short-circuit, phase loss protection, as well as leak detection for the pump body, motor overheating, and various other protective features. It supports both single and multiple pump control modes, main and standby pump switching, and various starting methods.

• Level control: The control cabinet is equipped with a level float switch, which automatically controls the operation of the water supply and drainage pumps based on changes in the liquid level.
• Pressure control: An external electric contact pressure gauge or pressure controller can be connected to automatically start or stop the pump based on changes in the pipeline pressure.
• Temperature control: Cn external temperature controller is connected to start or stop the pump based on a preset temperature range, applicable in environments where temperature control is required.
• Time control: The control panel of the cabinet is equipped with a time-setting button and a display, allowing the user to control the start and stop of the pump according to a set schedule. this is suitable for various time-based or regular intermittent operation control.

• Power supply: 380V, 660V, 1140V (-10%, +15%), 50Hz.
• Applicable motor: General squirrel-cage asynchronous motors.
• Starting frequency: Can be started frequently, not exceeding 20 times per hour.
• Altitude not exceeding 2000m (please derate if the altitude exceeds 2000m).
• Ambient temperature: Between -25°C and +40°C.
• Relative humidity: Not exceeding 95%, with no condensation.
• Vibration less than 0.5G.

1. The variable frequency control cabinet has the following protections:grounding protection, overvoltage protection, overcurrent protection, undervoltage protection, phase loss protection, short-circuit protection, overfrequency protection, stall protection,inverter overload protection, motor overload protection, and overheating protection for semiconductor devices. The variable frequency control cabinet is usually designed with circuit breaker components which are connected to the incoming power supply. They can help the variable frequency control cabinet complete the on-off operation of the circuit and provide protection when there is a short circuit or overload in the circuit and the inverter. In addition, the variable frequency cabinet can cut off the power supply during motor maintenance to ensure the safety of operators.
2. The variable frequency speed regulation function of the variable frequency control cabinet:There is a potentiometer for variable frequency speed regulation set on the control panel of the variable frequency control cabinet. It can send instruction signals to the motor according to the output frequency set by the operator to control the rotational speed of the motor. Some products in the variable frequency control cabinet are equipped with the power frequency switching function to ensure that when the inverter fails, the motor can be switched back to the power frequency power supply through the automatic control loop.

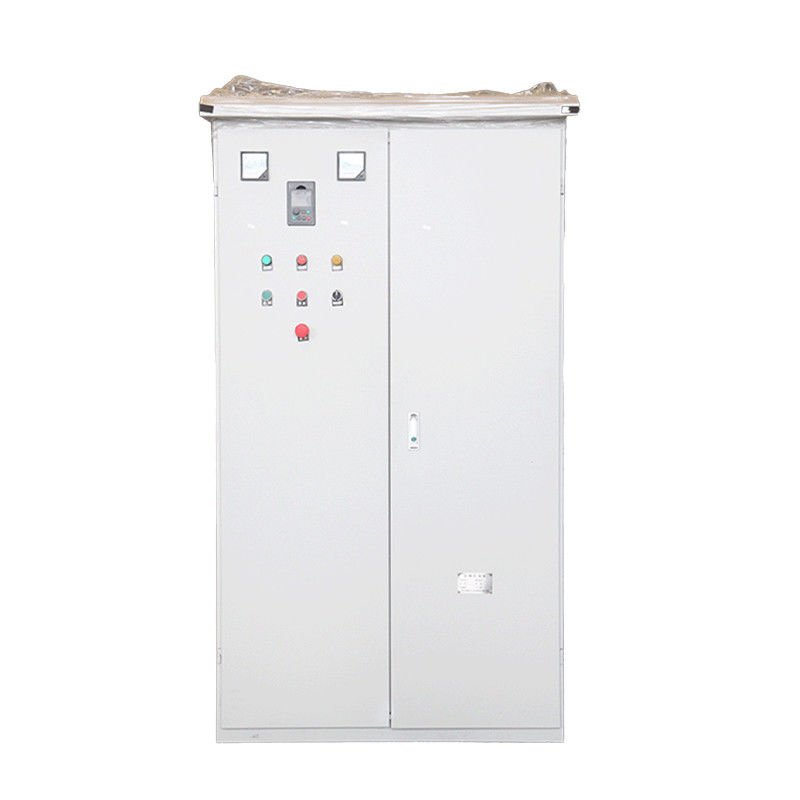

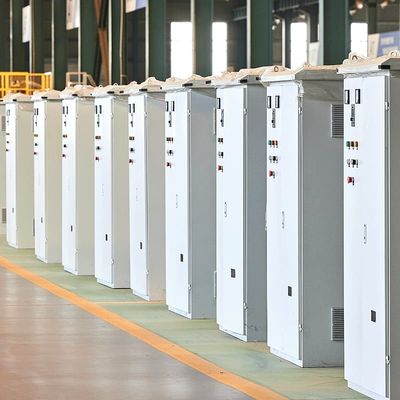

3. The intuitive control function of the variable frequency control cabinet:The cabinet body of the variable frequency control cabinet is designed with display devices and an operation panel. They are connected to the electrical components inside the variable frequency control cabinet, which can intuitively display the operating status of the variable frequency control cabinet. Meanwhile, it is convenient for operators to control the operation of the variable frequency device and conduct on-site operations on the controlled equipment such as motors. On the cabinet body of the variable frequency control cabinet,various instruments and indicator lights are also installed, such as voltmeters, ammeters, frequency meters, power indicator lights, alarm indicator lights, running indicator lights, and power frequency indicator lights. The running and operating status of the variable frequency control cabinet can be directly reflected on various instruments and indicator lights,realizing real-time monitoring of the working status of the inverter.
4. The safety protection function of the variable frequency control cabinet:The variable frequency control cabinet concentrates various electrical components including inverters inside the cabinet body. This can reduce the impact of the external environment on the electrical components, lower the degree of environmental pollution on the electrical components, and also reduce the risk of electric shock for the operators of the variable frequency control cabinet. Therefore, it has a good safety protection effect.
