3550kw 2600hp 1500m³/h 560m head BQ series high voltage explosion proof submersible electric pump high head Efficient

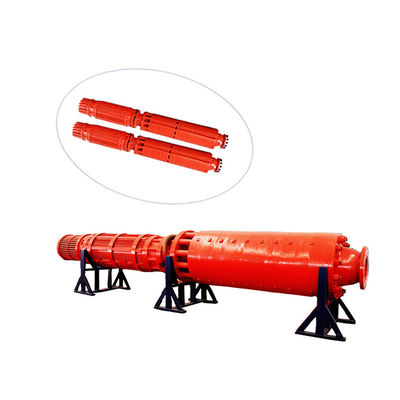

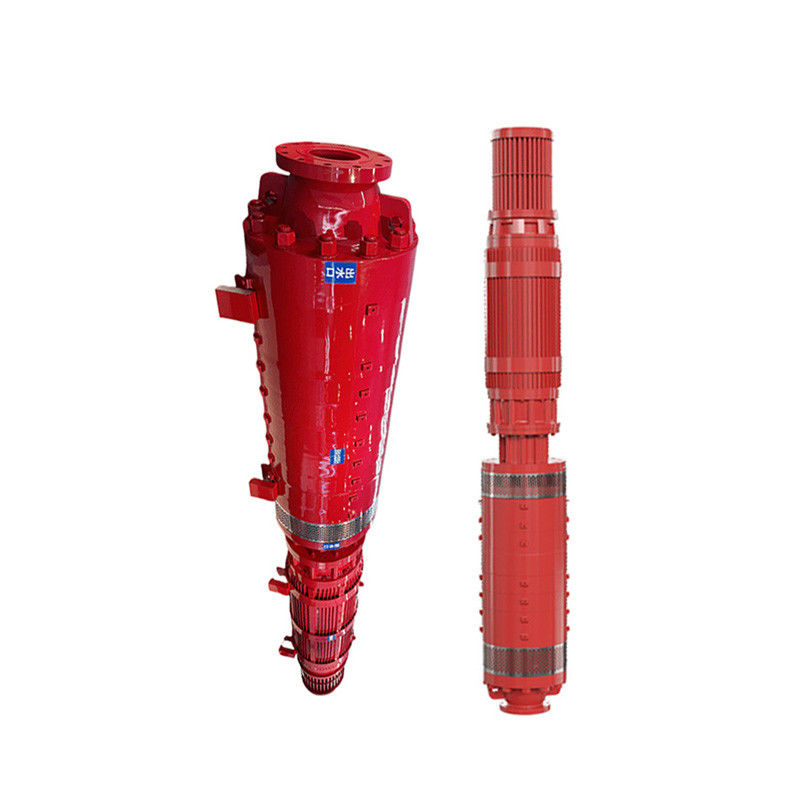

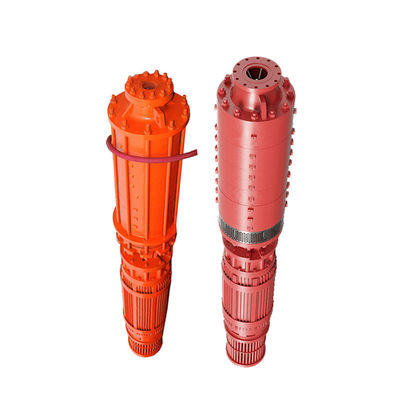

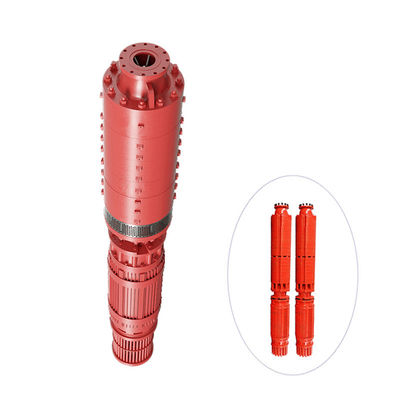

The BQ1500-560/8-3550/WS model from the BQ series of mining explosion-proof submersible pumps is a highly specialized unit designed to meet the rigorous demands of deep mine dewatering and industrial water management. Featuring an impressive 3550 kW motor, this pump can achieve flow rates up to 1500 cubic meters per hour (m³/h) with a maximum head of 560 meters. The eight-stage impeller configuration ensures optimal fluid handling and consistent performance across varying conditions.

Built for durability and reliability, the BQ1500-560/8-3550/WS incorporates high-strength alloys and advanced sealing technologies that protect against corrosion and wear, ensuring long-term operation in harsh environments. This model's sophisticated explosion-proof design allows it to operate safely in areas where flammable gases or explosive dusts are present, making it ideal for use in mines and other hazardous locations.

Additionally, the BQ1500-560/8-3550/WS is equipped with an intelligent control system that provides real-time monitoring and diagnostics. This system enables operators to track key performance indicators and receive alerts for any anomalies, facilitating proactive maintenance and reducing the risk of unexpected downtime. With its blend of power, efficiency, and smart technology, the BQ1500-560/8-3550/WS offers unparalleled performance and safety for demanding applications such as deep mine drainage and large-scale industrial water supply systems.

• Medium: PH 4-10
• Environmental temperature: ≤50°C
• Solid Content: ≤10%
• Installation type: vertical, horizontal or inclined
• Submergence depth: ≤1000m, but the minimum submerged water level should not be below the upper plane of the discharge flange of the check valve.
• Can be customized based on the user's specific operating environment.

This series of products is designed and manufactured in accordance with GB3836.1-2010 Explosive Environment.

Part 1: General requirements for equipment and GB3836.2-2010 Explosive Environment;
Part 2: Equipment protected by flameproof enclosure "d" Standard regulations, explosion-proof type is flameproof type, flameproof mark Exdl, suitable for normal production drainage of mines containing explosive gas environments such as methane or coal dust, and emergency rescue and drainage of permeable mines, drainage and mine restoration.

• The impeller features a back-facing structure, achieving axial force balance, stable operation, and extended service life.
• Suitable for horizontal, inclined, and vertical installation scenarios.
• Equipped with a high-efficiency hydraulic model for enhanced pump efficiency.
• Designed with a water-filled motor and self-circulating water cooling system for effective heat dissipation.
• No overload at any head points design ensures safe operation.
• Key components are made of wear-resistant ZG1Cr13Mo material, extending service life and reducing pump lifting and disassembly frequency.
