| Brand Name: | ATPUMP |
| Model Number: | BQ100-850/10-500/WS |
| MOQ: | 1 |
| Price: | USD 999-71999 / set |
| Packaging Details: | Wooden box |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

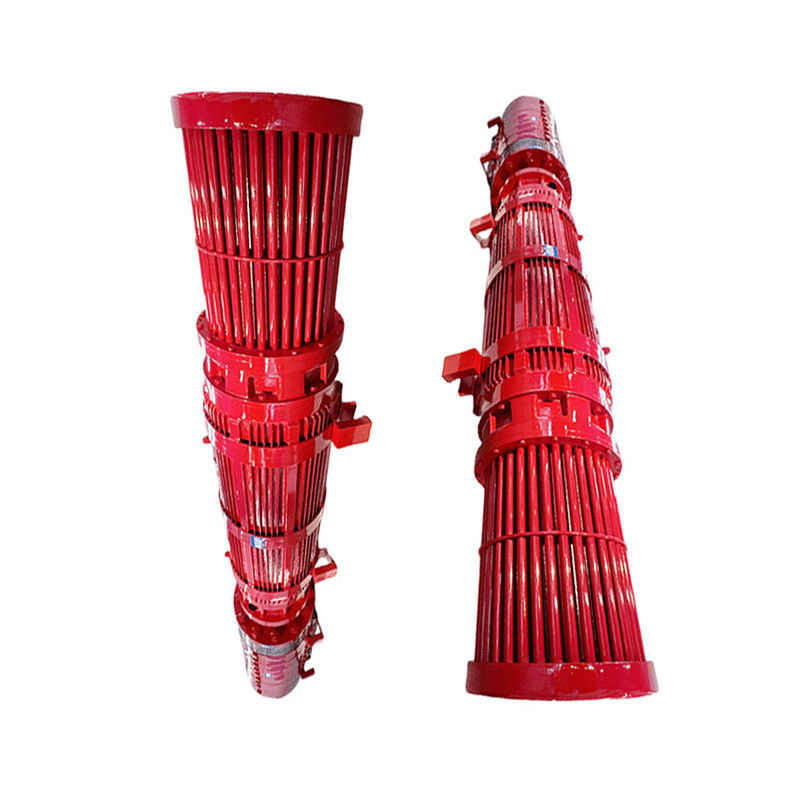

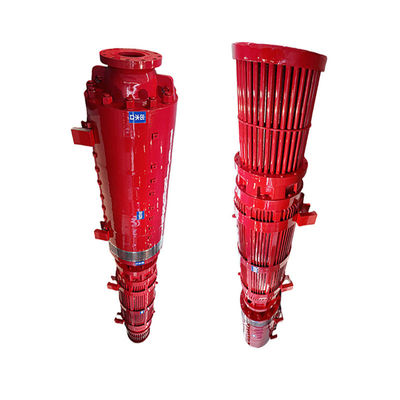

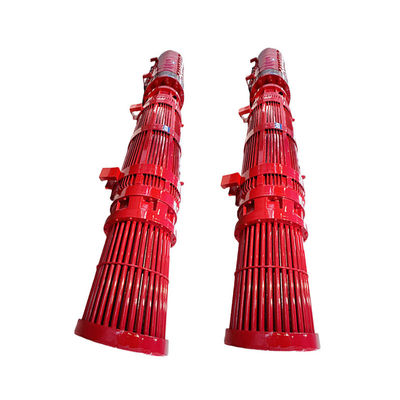

500kw 370hp 100m³/h 850m head BQ series high voltage explosion proof submersible electric pump high head Efficient
The BQ series submersible pump is an industrial-grade device designed for efficient drainage, widely used in complex environments such as mines, tunnels, and construction sites. Its unique double-suction impeller structure significantly increases flow rate and head while reducing energy consumption. The pump body is made of high-hardness alloy, offering excellent wear and corrosion resistance for harsh working conditions. The motor integrates an intelligent protection system, monitoring voltage, current, and temperature in real time to ensure safe operation. The BQ series also supports customized configurations to meet diverse drainage needs. With its compact design and easy maintenance, it further reduces operational costs. Whether for daily operations or emergency rescue, the BQ series submersible pump delivers outstanding performance and reliability, earning the trust of industry users.
| No. |
Model |
Rated flow
(m³/h)
|
Rated head
(m)
|
Impeller
grade
|
Efficiency
(%)
|
Synchronous
speed
(r/min)
|
Rated power
(kW)
|
Rated voltage
(kV)
|
Outlet
diameter
(mm)
|
|
1 |
BQ100-850/10-500/WS
|
100 |
850 |
10 |
71.32 |
1500 |
500 |
6/10 |
100 |
This series of products is designed and manufactured in accordance with GB3836.1-2010 Explosive Environment.
Part 1: General requirements for equipment and GB3836.2-2010 Explosive Environment;
Part 2: Equipment protected by flameproof enclosure "d" Standard regulations, explosion-proof type is flameproof type, flameproof mark Exdl, suitable for normal production drainage of mines containing explosive gas environments such as methane or coal dust, and emergency rescue and drainage of permeable mines, drainage and mine restoration.
Q1: What if the model I need is not in your catalog?
A: We can accept customization, including but not limited to flow rate, head, material, function, etc. You only need to tell me the relevant information, and we have a professional technical team to provide you with plans and drawings.
Q2: How do I place an order?
A: Send us an inguiry - Tell us your needs and usage scenarios - Customize drawings and samples - Discuss details - Modify and confirm - Sign a contract/Deposit - Mass production - Final payment and delivery - Further cooperation.
Q3: How to transport?
A: We have a variety of transportation options. If there is a port in your area, sea transportation is an economical choice. If you are in a hurry to use it, we can ship it by air for you. If you don’t have your own freight forwarder, we can contract the relevant work from departure to arrival at the destination port.
Q4: Why choose you?
A: ATPUMP has been working with top domestic experts to develop and upgrade products since 2005. So far, it has participated in thousands of projects and cooperated with many major domestic projects. In China, we are the only one that can manufacture 1.5-4500kW products. We are the first choice for many domestic companies and projects, which proves that we have sufficient technical strength and quality support.
Q5: What guarantees do I have when buying your products?
A: Our after-sales service implements the "2-4-24 standard". 2-hour response, telephone remote guidance within 4 hours, and solutions within 24 hours. If there is a need, we can provide door-to-door after-sales service.
Q6: I want to be your dealer, what are the conditions?
A: No problem at all, dear, it is recommended that you purchase a sample first to try it out. If you have any special needs and modification suggestions, our technical team is at your service at any time. Looking forward to our further cooperation!
