| Brand Name: | ATPUMP |
| Model Number: | BQ100-600/7-400/WS |
| MOQ: | 1 |
| Price: | USD 999-71999 / set |
| Packaging Details: | Wooden box |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

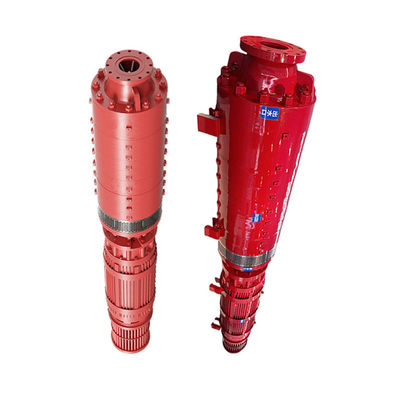

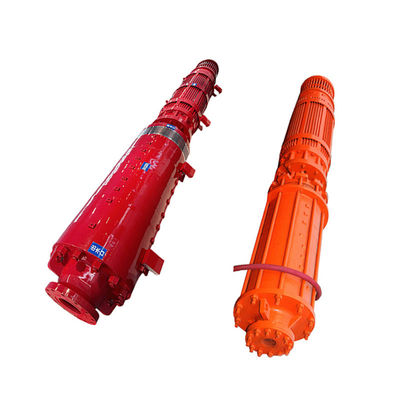

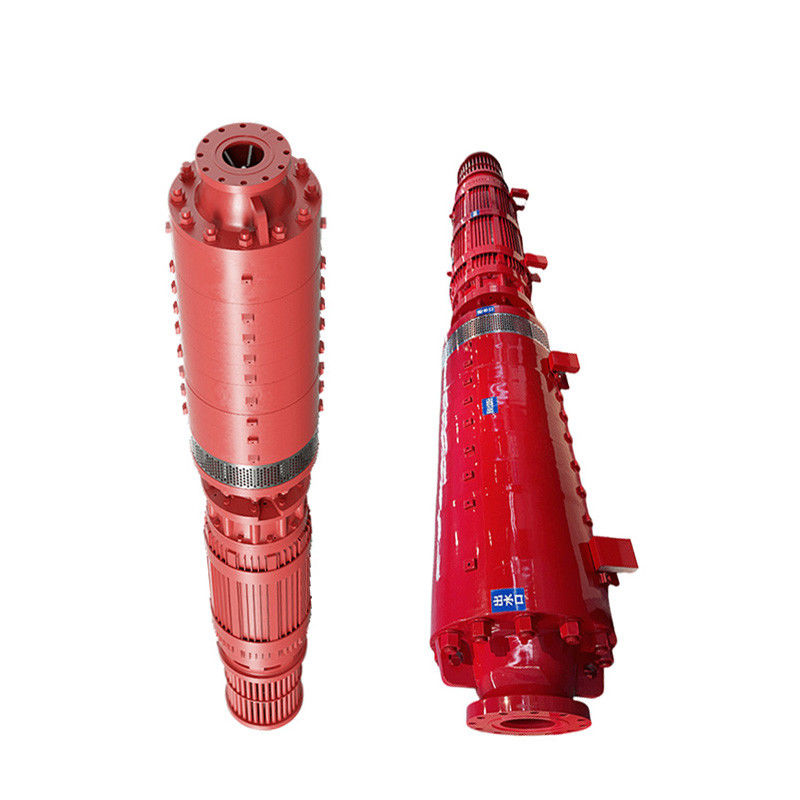

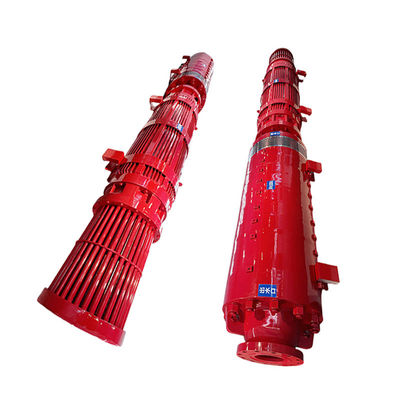

400kw 300hp 100m³/h 600m head BQ series high voltage explosion proof submersible electric pump high head Efficient
The BQ series submersible pump is a high-efficiency drainage solution designed for complex working conditions such as mines, tunnels, and construction sites. Constructed with high-strength wear-resistant materials, it offers excellent abrasion and corrosion resistance, ensuring long-term stability in harsh media containing sand and mud. Equipped with a high-efficiency motor and multiple sealing systems, the BQ series guarantees safe and reliable operation in deep-water environments. Its modular design simplifies installation and maintenance, significantly reducing operational costs. Whether for routine drainage or emergency rescue, the BQ series submersible pump delivers exceptional performance and durability, making it the preferred choice for industry users.
| No. |
Model |
Rated flow
(m³/h)
|
Rated head
(m)
|
Impeller
grade
|
Efficiency
(%)
|
Synchronous
speed
(r/min)
|
Rated power
(kW)
|
Rated voltage
(kV)
|
Outlet
diameter
(mm)
|
| 1 |
BQ100-600/7-400/WS
|
100 | 600 | 7 | 71.32 | 1500 | 400 | 6/10 | 100 |
This series of products is designed and manufactured in accordance with GB3836.1-2010 Explosive Environment.
Part 1: General requirements for equipment and GB3836.2-2010 Explosive Environment;
Part 2: Equipment protected by flameproof enclosure "d" Standard regulations, explosion-proof type is flameproof type, flameproof mark Exdl, suitable for normal production drainage of mines containing explosive gas environments such as methane or coal dust, and emergency rescue and drainage of permeable mines, drainage and mine restoration.
Q1: What if the model I need is not in your catalog?
A: We can accept customization, including but not limited to flow rate, head, material, function, etc. You only need to tell me the relevant information, and we have a professional technical team to provide you with plans and drawings.
Q2: How do I place an order?
A: Send us an inguiry - Tell us your needs and usage scenarios - Customize drawings and samples - Discuss details - Modify and confirm - Sign a contract/Deposit - Mass production - Final payment and delivery - Further cooperation.
Q3: How to transport?
A: We have a variety of transportation options. If there is a port in your area, sea transportation is an economical choice. If you are in a hurry to use it, we can ship it by air for you. If you don’t have your own freight forwarder, we can contract the relevant work from departure to arrival at the destination port.
Q4: Why choose you?
A: ATPUMP has been working with top domestic experts to develop and upgrade products since 2005. So far, it has participated in thousands of projects and cooperated with many major domestic projects. In China, we are the only one that can manufacture 1.5-4500kW products. We are the first choice for many domestic companies and projects, which proves that we have sufficient technical strength and quality support.
Q5: What guarantees do I have when buying your products?
A: Our after-sales service implements the "2-4-24 standard". 2-hour response, telephone remote guidance within 4 hours, and solutions within 24 hours. If there is a need, we can provide door-to-door after-sales service.
Q6: I want to be your dealer, what are the conditions?
A: No problem at all, dear, it is recommended that you purchase a sample first to try it out. If you have any special needs and modification suggestions, our technical team is at your service at any time. Looking forward to our further cooperation!
