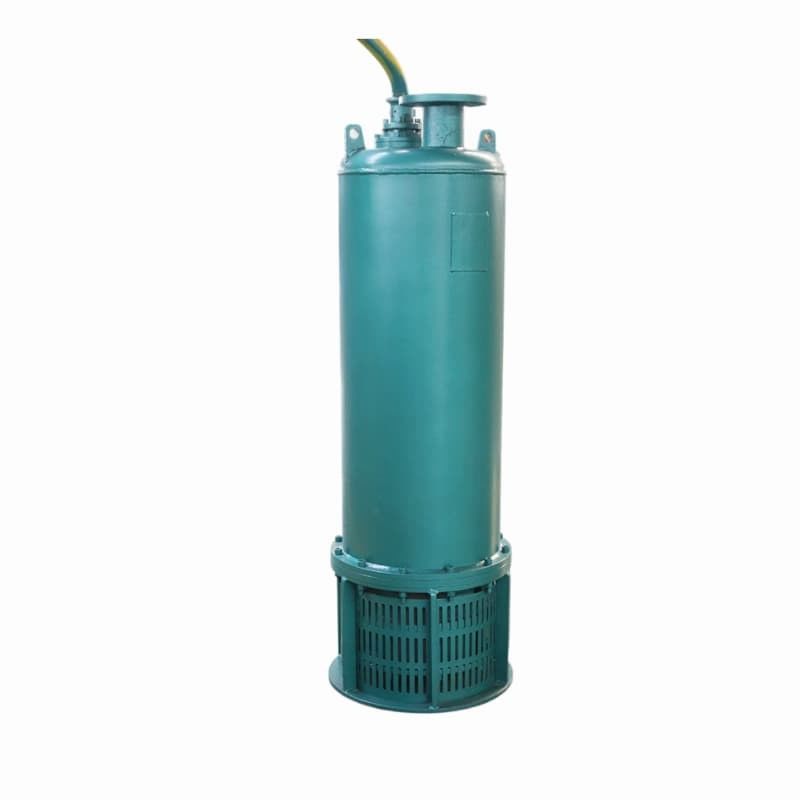

ExdIIBT4/CT4 Explosion Proof Submersible Pump Manufacturers 45kW 90 m³/h

Brand Name: ATPUMP
Model Number: BQS250-250/5-280/N
MOQ: 1
Price: USD 219-71999 / set
Packaging Details: Wooden box
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE、ISO 9001、ISO 14001、ISO45001
Rated Flow:
90 M³/h
Rated Head:
120 M
Rated Power:
45kw
Rated Voltage:
380/660 Or 660/1140 V
Synchronous Speed:
3000 R/min
Maximum Diameter Of Passed Particles:
10 Mm
Outlet Diameter:
100 Mm
Color:
RAL 6029
Material:
QT600-3, SS304, SS316, SS316L, Duplex Stainless Steel,high Chromium Alloy
Medium Temperature:
≤40℃
PH:
4-10
Medium Density:
≤1100 Kg/m³
Submergence Depth:
≤20m
Cable Length（Standard）:
15m（Customizable）
Cable Standards:
MT818.5-2009 Flame-retardant Cable
Motor Installation Form:
Built-in Sturcture
Customizable:
Yes
Explosion-Proof Rating:
ExdIIBT4/CT4
Insulation Rating:
F/H
Frequency:
50Hz / 60Hz
Pump Type:
Submersible Electric Pump
Power Range:
1.5-315kW
Drive:
Electric Pump
Supply Ability:
100000 sets per year
Highlight:

exdiibt4/ct4 explosion proof submersible pump manufacturers

,

explosion proof submersible pump manufacturers 45kw

,

exdiibt4/ct4 explosion proof submersible sump pump

Product Description

45kW Explosion-Proof Submersible Pump for Mining and Oil Extraction – High Efficiency and Reliable Performance**ExdIIBT4/CT4 Explosion Proof Submersible Pump Manufacturers 45kW 90 m³/h 0



The BQS series extends beyond mining applications, proving essential in urban wastewater treatment plants, construction sites, and chemical industry wastewater systems. Engineered for top-tier efficiency and reliability, it tackles a wide range of complex media conditions, ensuring continuous and stable operation. The integration of IoT technology in intelligent models allows for remote monitoring and automated management, providing real-time insights that enable proactive maintenance, minimize downtime, and reduce repair costs. Whether utilized in mining or large industrial operations, the BQS series excels in optimizing drainage and system performance. Its robust construction and advanced capabilities make it an invaluable asset for boosting productivity in demanding environments.

ExdIIBT4/CT4 Explosion Proof Submersible Pump Manufacturers 45kW 90 m³/h 1

ExdIIBT4/CT4 Explosion Proof Submersible Pump Manufacturers 45kW 90 m³/h 2

No. Model



Rated flow

(m3/h)



Rated head

(m)



Rated power

(kW)



Rated voltage

(V)



Synchronous

speed

(r/min)



Efficiency

(%)

Outlet
diameter
(mm)



1

BQS90-120/2-45/N



90



120



45



380/660 or 660/1140



3000



47.4



150













ExdIIBT4/CT4 Explosion Proof Submersible Pump Manufacturers 45kW 90 m³/h 3



Voltage Options: 380/660V, 660/1140V, 400V, 440V, 460V (customizable to meet specific needs).

Medium: Temperature ≤ 40°C, pH 4-10, medium density ≤ 1100 kg/m³ (can be adjusted for special requirements).

Submersion Depth: Up to 20 meters.

Materials: Can be customized to handle highly corrosive liquids.

Solid Particles: The diameter of solid particles in the medium must meet MT/T 671-2005 standards. Please specify any specific needs when ordering.

Cable: MT818.5-2009 flame-retardant cable, designed for use in coal mines.

ExdIIBT4/CT4 Explosion Proof Submersible Pump Manufacturers 45kW 90 m³/h 4

The BQS series is specifically engineered for environments with explosion risks, such as those with methane gas and coal dust. It is designed to handle mixed sewage containing insoluble substances like silt, coal slime, coal slag, and fibers. This versatile pump is ideal for various applications, including buildings, hospitals, residential areas, municipal infrastructure, road construction, and industrial wastewater management. It efficiently discharges wastewater, rainwater, and sewage that contain solid particles and long fibers. Furthermore, customizable materials are available to ensure the safe and reliable transport of corrosive liquids.​

ExdIIBT4/CT4 Explosion Proof Submersible Pump Manufacturers 45kW 90 m³/h 5

ExdIIBT4/CT4 Explosion Proof Submersible Pump Manufacturers 45kW 90 m³/h 6

ExdIIBT4/CT4 Explosion Proof Submersible Pump Manufacturers 45kW 90 m³/h 7

DOUBLE-END MECHANICAL SEAL



Precision machining, high efficiency；

Excellent sealing performance, long service life.



ExdI/ExdbII EXPLOSION-PROOF MOTOR



Professional explosion-proof motors；
Boast stable performance and powerful driving force.



HIGH-PRECISION ROTOR



High-precision finish-machined rotor;

Operates smoothly with low shaft end runout.



HIGH QUALITY BEARING



High-load bearings;

High precision of components, reliable operation.



SUPPORT CUSTOMIZATION



Customizable stainless steel material;

Corrosion and rust resistant pump will be more durable.



PRECISION MEASUREMENT IN THREE COORDINATES



High precision, improve measurement efficiency;

Reduce human error.





ExdIIBT4/CT4 Explosion Proof Submersible Pump Manufacturers 45kW 90 m³/h 8

ExdIIBT4/CT4 Explosion Proof Submersible Pump Manufacturers 45kW 90 m³/h 9

ExdIIBT4/CT4 Explosion Proof Submersible Pump Manufacturers 45kW 90 m³/h 10

FAQ

Q1: What if the model I need is not in your catalog?
A: We offer complete customization, including flow rate, head, material, and additional features. Simply provide your specifications, and our expert technical team will develop a tailored solution with detailed drawings.

Q2: What type of pump is the BQS series?
A: The BQS series is a specialized explosion-proof submersible pump designed for mining applications, ensuring safe and reliable operation in environments that involve flammable gases or explosive dust.

Q3: Is the BQS series energy-efficient?
A: Yes, it is designed for high efficiency and low energy consumption. With advanced hydraulic designs and optimized mechanical structures, it maximizes energy utilization and reduces operating costs.

Q4: Can the BQS series handle liquids containing solid particles?
A: Absolutely. The BQS series is equipped with specially designed impellers and wear-resistant materials, allowing it to efficiently process wastewater containing solid particles while maintaining long-term stable performance.

Q5: What guarantees do I have when buying your products?
A: We provide comprehensive after-sales service, adhering to the "2-4-24 standard"—a 2-hour response time, remote phone guidance within 4 hours, and a complete solution within 24 hours. On-site support is also available if needed.

Q6: I want to be your dealer. What are the requirements?
A: We welcome partnerships! We recommend starting with a sample to test its performance. If you have any specific requirements or modification requests, our technical team is always available to assist. We look forward to collaborating with you!
