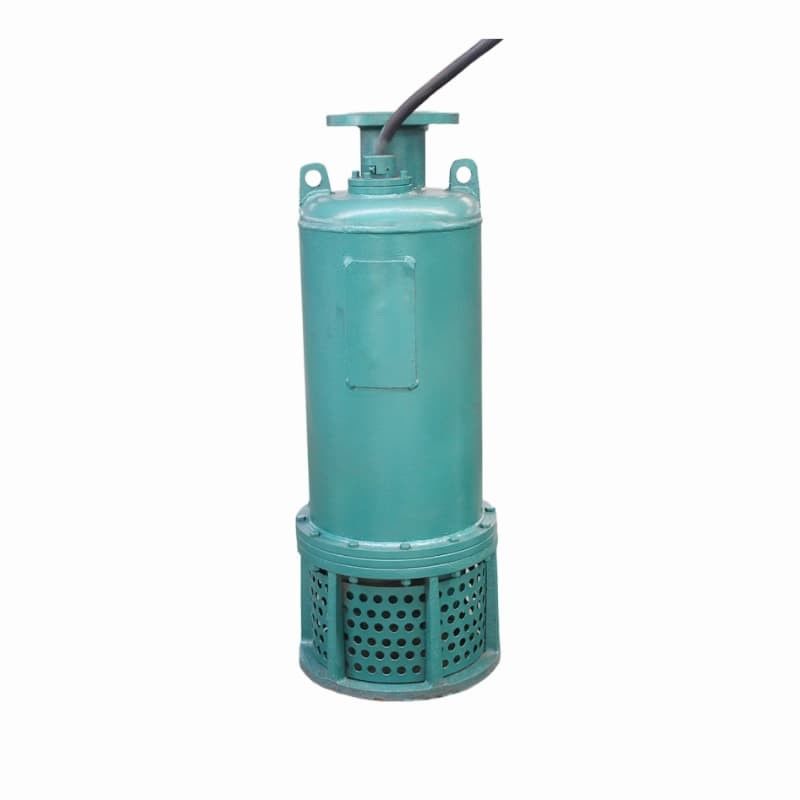

45kW Submersible Drainage Pump Explosion Proof RAL 6029 Color 3000 R/Min

Brand Name:	ATPUMP
Model Number:	BQS250-250/5-280/N
MOQ:	1
Price:	USD 219-71999 / set
Packaging Details:	Wooden box
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001、ISO 14001、ISO45001

Rated Flow:

50 M³/h

Rated Head:

150 M

Rated Power:

45kw

Rated Voltage:

380/660 Or 660/1140 V

Synchronous Speed:

3000 R/min

Maximum Diameter Of Passed Particles:

10 Mm

Outlet Diameter:

100 Mm

Color:

RAL 6029

Material:

QT600-3, SS304, SS316, SS316L, Duplex Stainless Steel,high Chromium Alloy

Medium Temperature:

≤40℃

PH:

4-10

Medium Density:

≤1100 Kg/m³

Submergence Depth:

≤20m

Cable Length（Standard）:

15m（Customizable）

Cable Standards:

MT818.5-2009 Flame-retardant Cable

Motor Installation Form:

Built-in Sturcture

Customizable:

Yes

Explosion-Proof Rating:

ExdIIBT4/CT4

Insulation Rating:

F/H

Frequency:

50Hz / 60Hz

Pump Type:

Submersible Electric Pump

Power Range:

1.5-315kW

Drive:

Electric Pump

Supply Ability:

100000 sets per year

Highlight:

45kw submersible drainage pump

,

45kw submersible sewage pump

,

ral 6029 submersible sewage pump

Product Description

45kW High-Performance Explosion-Proof Submersible Pump for Mining and Oil Extraction – Efficient and Reliable 45kW Submersible Drainage Pump Explosion Proof RAL 6029 Color 3000 R/Min 0

The BQS series is not only limited to mining applications but also plays a vital role in urban wastewater treatment plants, construction sites, and the chemical industry's wastewater management systems. Designed for exceptional efficiency and reliability, it effectively handles diverse and complex media conditions, ensuring uninterrupted and stable operation. With the incorporation of IoT technology, intelligent models offer remote monitoring and automated control, providing real-time operational data that allows for proactive maintenance, reduces downtime, and lowers repair expenses. Whether used in mining operations or large-scale industrial settings, the BQS series excels in optimizing drainage and performance. Its durable design and advanced features make it a valuable asset in enhancing productivity in the most challenging environments.

45kW Submersible Drainage Pump Explosion Proof RAL 6029 Color 3000 R/Min 1

45kW Submersible Drainage Pump Explosion Proof RAL 6029 Color 3000 R/Min 2

No.

Model

Rated flow

(m³/h)

Rated head

(m)

Rated power

(kW)

Rated voltage

(V)

Synchronous

speed

(r/min)

Efficiency

(%)

Outlet

diameter

(mm)

1

BQS50-150/2-45/N

50

150

45

380/660 or 660/1140

3000

40.5

150

45kW Submersible Drainage Pump Explosion Proof RAL 6029 Color 3000 R/Min 3

Voltage Options: 380/660V, 660/1140V, 400V, 440V, 460V (customizable options available).

Medium: Temperature ≤ 40°C, pH 4-10, medium density ≤ 1100 kg/m³ (customizable to meet special requirements).

Submersion Depth: Up to 20m.

Materials: Customizable for handling highly corrosive liquids.

Solid Particles: The diameter of solid particles must comply with MT/T 671-2005 standards. Please specify any specific requirements when placing your order.

Cable: MT818.5-2009 flame-retardant cable for use in coal mines.

45kW Submersible Drainage Pump Explosion Proof RAL 6029 Color 3000 R/Min 4

The BQS series is specifically engineered for environments with explosion risks, such as those with methane gas and coal dust. It is designed to handle mixed sewage containing insoluble substances like silt, coal slime, coal slag, and fibers. This versatile pump is ideal for various applications, including buildings, hospitals, residential areas, municipal infrastructure, road construction, and industrial wastewater management. It efficiently discharges wastewater, rainwater, and sewage that contain solid particles and long fibers. Furthermore, customizable materials are available to ensure the safe and reliable transport of corrosive liquids.

45kW Submersible Drainage Pump Explosion Proof RAL 6029 Color 3000 R/Min 5

45kW Submersible Drainage Pump Explosion Proof RAL 6029 Color 3000 R/Min 6

45kW Submersible Drainage Pump Explosion Proof RAL 6029 Color 3000 R/Min 7

DOUBLE-END MECHANICAL SEAL	Precision machining, high efficiency； Excellent sealing performance, long service life.
ExdI/ExdbII EXPLOSION-PROOF MOTOR	Professional explosion-proof motors； Boast stable performance and powerful driving force.
HIGH-PRECISION ROTOR	High-precision finish-machined rotor; Operates smoothly with low shaft end runout.
HIGH QUALITY BEARING	High-load bearings; High precision of components, reliable operation.
SUPPORT CUSTOMIZATION	Customizable stainless steel material; Corrosion and rust resistant pump will be more durable.
PRECISION MEASUREMENT IN THREE COORDINATES	High precision, improve measurement efficiency; Reduce human error.

45kW Submersible Drainage Pump Explosion Proof RAL 6029 Color 3000 R/Min 8

45kW Submersible Drainage Pump Explosion Proof RAL 6029 Color 3000 R/Min 9

45kW Submersible Drainage Pump Explosion Proof RAL 6029 Color 3000 R/Min 10

FAQ

Q1: What if the model I need is not in your catalog?
A: We offer full customization, including flow rate, head, material, and additional features. Just provide your specifications, and our expert technical team will design a tailored solution with detailed drawings.

Q2: What type of pump is the BQS series?
A: The BQS series is a specialized explosion-proof submersible pump designed for mining applications. It ensures safe and reliable operation in environments with flammable gases or explosive dust.

Q3: Is the BQS series energy-efficient?
A: Yes, it is engineered for high efficiency and low energy consumption. Advanced hydraulic designs and optimized mechanical structures maximize energy utilization and reduce operational costs.

Q4: Can the BQS series handle liquids containing solid particles?
A: Absolutely. The BQS series features specially designed impellers and wear-resistant materials, enabling it to process wastewater containing solid particles efficiently while maintaining long-term stable performance.

Q5: What guarantees do I have when buying your products?
A: We offer comprehensive after-sales service, adhering to the "2-4-24 standard"—a 2-hour response time, remote phone guidance within 4 hours, and a complete solution within 24 hours. On-site support is available if required.

Q6: I want to be your dealer. What are the requirements?
A: We welcome partnerships! We recommend starting with a sample to evaluate its performance. If you have specific needs or modification requests, our technical team is always available to assist. We look forward to working together!

Tags:

submersible waste pump

submersible pump

explosion proof submersible pump

RELATED PRODUCTS

BQS 55kW Explosion Proof Submersible Pumps Durable And Efficient Performance For Challenging Environments

Video

BQS 55kW Explosion Proof Submersible Pumps Durable And Efficient Performance For Challenging Environments

Get Best Price

Reliable BQS 55kW Explosion Proof Submersible Pump For Mining And Oil Extraction Operations

Video

Reliable BQS 55kW Explosion Proof Submersible Pump For Mining And Oil Extraction Operations

Get Best Price

Robust Explosion Proof Submersible Sump Pump BQS 45kW For Industrial Use

Video

Robust Explosion Proof Submersible Sump Pump BQS 45kW For Industrial Use

Get Best Price

Mining And Oil Extraction Explosion Proof Submersible Pump BQS 45kW

Video

Mining And Oil Extraction Explosion Proof Submersible Pump BQS 45kW

Get Best Price

ExdIIBT4/CT4 Explosion Proof Submersible Pump Manufacturers 45kW 90 m³/h

Video

ExdIIBT4/CT4 Explosion Proof Submersible Pump Manufacturers 45kW 90 m³/h

Get Best Price

45kW Submersible Drainage Pump Explosion Proof RAL 6029 Color 3000 R/Min

Video

45kW Submersible Drainage Pump Explosion Proof RAL 6029 Color 3000 R/Min

Get Best Price

High Flow Explosion Proof Submersible Pump 45kW 30 m³/h For Mining And Oil Extraction Dewatering Sewage Pump

Video

High Flow Explosion Proof Submersible Pump 45kW 30 m³/h For Mining And Oil Extraction Dewatering Sewage Pump

Get Best Price

600m³/H 60m Large Flow Explosion Proof Submersible Wastewater Pump 185kW 247HP

Video

600m³/H 60m Large Flow Explosion Proof Submersible Wastewater Pump 185kW 247HP

Get Best Price

Good price online

Products Details

Home > Products >

Explosion Proof Submersible Pumps

>

45kW Submersible Drainage Pump Explosion Proof RAL 6029 Color 3000 R/Min

Submersible Sewage Pump

Submersible Drainage Pump

High Head Submersible Pump

Explosion Proof Submersible Pumps

Portable Submersible Pump

High Voltage Pump

Submersible Stainless Steel Pumps

Submersible Slurry Pump

Submersible Agitator Pump

Pneumatic Diaphragm Pump

Pneumatic Submersible Pump

Portable Slurry Pump

Pump Control Panel

name

45kW Submersible Drainage Pump Explosion Proof RAL 6029 Color 3000 R/Min

Brand Name:	ATPUMP
Model Number:	BQS250-250/5-280/N
MOQ:	1
Price:	USD 219-71999 / set
Packaging Details:	Wooden box
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

ATPUMP

Certification:

CE、ISO 9001、ISO 14001、ISO45001

Model Number:

BQS250-250/5-280/N

Rated Flow:

50 M³/h

Rated Head:

150 M

Rated Power:

45kw

Rated Voltage:

380/660 Or 660/1140 V

Synchronous Speed:

3000 R/min

Maximum Diameter Of Passed Particles:

10 Mm

Outlet Diameter:

100 Mm

Color:

RAL 6029

Material:

QT600-3, SS304, SS316, SS316L, Duplex Stainless Steel,high Chromium Alloy

Medium Temperature:

≤40℃

PH:

4-10

Medium Density:

≤1100 Kg/m³

Submergence Depth:

≤20m

Cable Length（Standard）:

15m（Customizable）

Cable Standards:

MT818.5-2009 Flame-retardant Cable

Motor Installation Form:

Built-in Sturcture

Customizable:

Yes

Explosion-Proof Rating:

ExdIIBT4/CT4

Insulation Rating:

F/H

Frequency:

50Hz / 60Hz

Pump Type:

Submersible Electric Pump

Power Range:

1.5-315kW

Drive:

Electric Pump

Minimum Order Quantity:

1

Price:

USD 219-71999 / set

Packaging Details:

Wooden box

Delivery Time:

20-35 work days

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability:

100000 sets per year

Highlight:

45kw submersible drainage pump

,

45kw submersible sewage pump

,

ral 6029 submersible sewage pump

Product Description

45kW High-Performance Explosion-Proof Submersible Pump for Mining and Oil Extraction – Efficient and Reliable 45kW Submersible Drainage Pump Explosion Proof RAL 6029 Color 3000 R/Min 0

The BQS series is not only limited to mining applications but also plays a vital role in urban wastewater treatment plants, construction sites, and the chemical industry's wastewater management systems. Designed for exceptional efficiency and reliability, it effectively handles diverse and complex media conditions, ensuring uninterrupted and stable operation. With the incorporation of IoT technology, intelligent models offer remote monitoring and automated control, providing real-time operational data that allows for proactive maintenance, reduces downtime, and lowers repair expenses. Whether used in mining operations or large-scale industrial settings, the BQS series excels in optimizing drainage and performance. Its durable design and advanced features make it a valuable asset in enhancing productivity in the most challenging environments.

45kW Submersible Drainage Pump Explosion Proof RAL 6029 Color 3000 R/Min 1

45kW Submersible Drainage Pump Explosion Proof RAL 6029 Color 3000 R/Min 2

No.

Model

Rated flow

(m³/h)

Rated head

(m)

Rated power

(kW)

Rated voltage

(V)

Synchronous

speed

(r/min)

Efficiency

(%)

Outlet

diameter

(mm)

1

BQS50-150/2-45/N

50

150

45

380/660 or 660/1140

3000

40.5

150

45kW Submersible Drainage Pump Explosion Proof RAL 6029 Color 3000 R/Min 3

Voltage Options: 380/660V, 660/1140V, 400V, 440V, 460V (customizable options available).

Medium: Temperature ≤ 40°C, pH 4-10, medium density ≤ 1100 kg/m³ (customizable to meet special requirements).

Submersion Depth: Up to 20m.

Materials: Customizable for handling highly corrosive liquids.

Solid Particles: The diameter of solid particles must comply with MT/T 671-2005 standards. Please specify any specific requirements when placing your order.

Cable: MT818.5-2009 flame-retardant cable for use in coal mines.

45kW Submersible Drainage Pump Explosion Proof RAL 6029 Color 3000 R/Min 4

The BQS series is specifically engineered for environments with explosion risks, such as those with methane gas and coal dust. It is designed to handle mixed sewage containing insoluble substances like silt, coal slime, coal slag, and fibers. This versatile pump is ideal for various applications, including buildings, hospitals, residential areas, municipal infrastructure, road construction, and industrial wastewater management. It efficiently discharges wastewater, rainwater, and sewage that contain solid particles and long fibers. Furthermore, customizable materials are available to ensure the safe and reliable transport of corrosive liquids.

45kW Submersible Drainage Pump Explosion Proof RAL 6029 Color 3000 R/Min 5

45kW Submersible Drainage Pump Explosion Proof RAL 6029 Color 3000 R/Min 6

45kW Submersible Drainage Pump Explosion Proof RAL 6029 Color 3000 R/Min 7

DOUBLE-END MECHANICAL SEAL	Precision machining, high efficiency； Excellent sealing performance, long service life.
ExdI/ExdbII EXPLOSION-PROOF MOTOR	Professional explosion-proof motors； Boast stable performance and powerful driving force.
HIGH-PRECISION ROTOR	High-precision finish-machined rotor; Operates smoothly with low shaft end runout.
HIGH QUALITY BEARING	High-load bearings; High precision of components, reliable operation.
SUPPORT CUSTOMIZATION	Customizable stainless steel material; Corrosion and rust resistant pump will be more durable.
PRECISION MEASUREMENT IN THREE COORDINATES	High precision, improve measurement efficiency; Reduce human error.

45kW Submersible Drainage Pump Explosion Proof RAL 6029 Color 3000 R/Min 8

45kW Submersible Drainage Pump Explosion Proof RAL 6029 Color 3000 R/Min 9

45kW Submersible Drainage Pump Explosion Proof RAL 6029 Color 3000 R/Min 10

FAQ

Q1: What if the model I need is not in your catalog?
A: We offer full customization, including flow rate, head, material, and additional features. Just provide your specifications, and our expert technical team will design a tailored solution with detailed drawings.

Q2: What type of pump is the BQS series?
A: The BQS series is a specialized explosion-proof submersible pump designed for mining applications. It ensures safe and reliable operation in environments with flammable gases or explosive dust.

Q3: Is the BQS series energy-efficient?
A: Yes, it is engineered for high efficiency and low energy consumption. Advanced hydraulic designs and optimized mechanical structures maximize energy utilization and reduce operational costs.

Q4: Can the BQS series handle liquids containing solid particles?
A: Absolutely. The BQS series features specially designed impellers and wear-resistant materials, enabling it to process wastewater containing solid particles efficiently while maintaining long-term stable performance.

Q5: What guarantees do I have when buying your products?
A: We offer comprehensive after-sales service, adhering to the "2-4-24 standard"—a 2-hour response time, remote phone guidance within 4 hours, and a complete solution within 24 hours. On-site support is available if required.

Q6: I want to be your dealer. What are the requirements?
A: We welcome partnerships! We recommend starting with a sample to evaluate its performance. If you have specific needs or modification requests, our technical team is always available to assist. We look forward to working together!

Tags:

submersible waste pump

submersible pump

explosion proof submersible pump

RELATED PRODUCTS

BQS 55kW Explosion Proof Submersible Pumps Durable And Efficient Performance For Challenging Environments

Video

BQS 55kW Explosion Proof Submersible Pumps Durable And Efficient Performance For Challenging Environments

Get Best Price

Reliable BQS 55kW Explosion Proof Submersible Pump For Mining And Oil Extraction Operations

Video

Reliable BQS 55kW Explosion Proof Submersible Pump For Mining And Oil Extraction Operations

Get Best Price

Robust Explosion Proof Submersible Sump Pump BQS 45kW For Industrial Use

Video

Robust Explosion Proof Submersible Sump Pump BQS 45kW For Industrial Use

Get Best Price

Mining And Oil Extraction Explosion Proof Submersible Pump BQS 45kW

Video

Mining And Oil Extraction Explosion Proof Submersible Pump BQS 45kW

Get Best Price

ExdIIBT4/CT4 Explosion Proof Submersible Pump Manufacturers 45kW 90 m³/h

Video

ExdIIBT4/CT4 Explosion Proof Submersible Pump Manufacturers 45kW 90 m³/h

Get Best Price

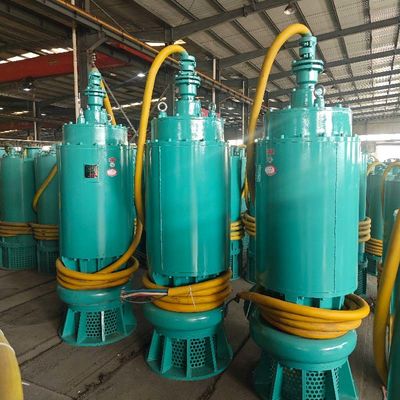

45kW Submersible Drainage Pump Explosion Proof RAL 6029 Color 3000 R/Min

Video

45kW Submersible Drainage Pump Explosion Proof RAL 6029 Color 3000 R/Min

Get Best Price

High Flow Explosion Proof Submersible Pump 45kW 30 m³/h For Mining And Oil Extraction Dewatering Sewage Pump

Video

High Flow Explosion Proof Submersible Pump 45kW 30 m³/h For Mining And Oil Extraction Dewatering Sewage Pump

Get Best Price

600m³/H 60m Large Flow Explosion Proof Submersible Wastewater Pump 185kW 247HP

Video

600m³/H 60m Large Flow Explosion Proof Submersible Wastewater Pump 185kW 247HP

Get Best Price

15054873108

Quick link

Home About Us products Application news Cases Contact Us

Quick Contact

Address

Jining,Shandong,China

Tel

86-537-277-1006

E-mail

info@anlitaigroup.com

15054873108

Our Newsletter

Subscribe to our newsletter for discounts and more.

Privacy Policy | Sitemap | China Good Quality Submersible Sewage Pump Supplier. Copyright © 2025 Jining Antai Mine Equipment Manufacturing Co., Ltd. . All Rights Reserved.
