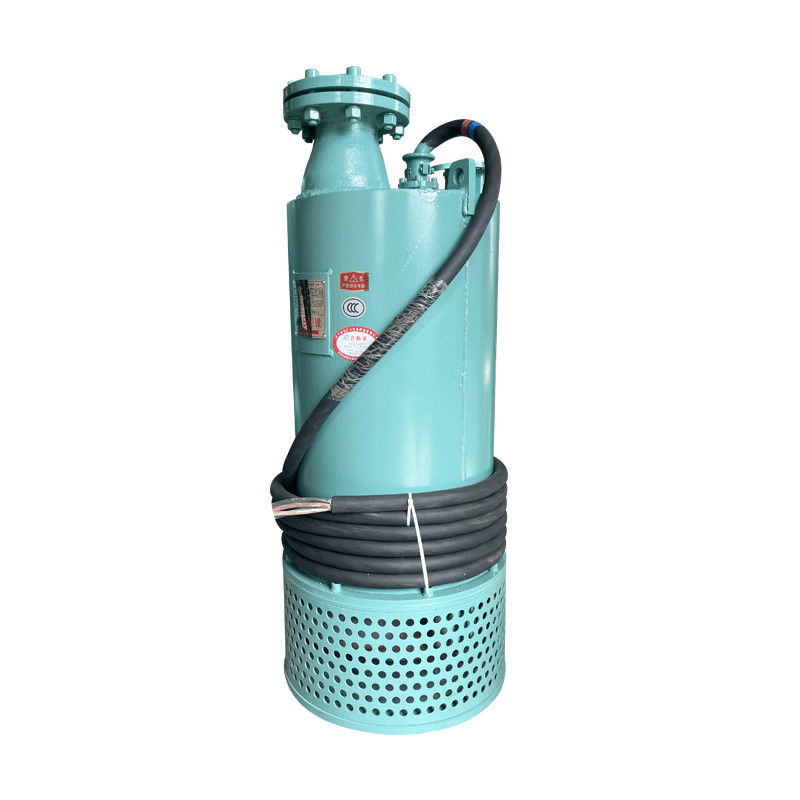

600m³/H 60m Large Flow Explosion Proof Submersible Wastewater Pump 185kW 247HP

Brand Name: ATPUMP
Model Number: BQS250-250/5-280/N
MOQ: 1
Price: USD 219-71999 / set
Packaging Details: Wooden box
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE、ISO 9001、ISO 14001、ISO45001
Rated Flow:
600 M³/h
Rated Head:
60 M
Rated Power:
185kw
Rated Voltage:
380/660 Or 660/1140 V
Synchronous Speed:
1500 R/min
Maximum Diameter Of Passed Particles:
10 Mm
Outlet Diameter:
200 Mm
Color:
RAL 6029
Material:
QT600-3, SS304, SS316, SS316L, Duplex Stainless Steel,high Chromium Alloy
Medium Temperature:
≤40℃
PH:
4-10
Medium Density:
≤1100 Kg/m³
Submergence Depth:
≤20m
Cable Length（Standard）:
15m（Customizable）
Cable Standards:
MT818.5-2009 Flame-retardant Cable
Motor Installation Form:
Built-in Sturcture
Customizable:
Yes
Explosion-Proof Rating:
ExdIIBT4/CT4
Insulation Rating:
F/H
Frequency:
50Hz / 60Hz
Pump Type:
Submersible Electric Pump
Power Range:
1.5-315kW
Drive:
Electric Pump
Supply Ability:
100000 sets per year
Highlight:

submersible wastewater pump 185kw

,

600m submersible sewage pump

,

600m submersible wastewater pump

Product Description

185kW 247HP 600m³/h 60m Large-Flow Explosion-Proof Submersible Pump for Mining and Oil Extraction – Powerful and Reliable Performance600m³/H 60m Large Flow Explosion Proof Submersible Wastewater Pump 185kW 247HP 0



The BQS series extends its applications beyond mining, proving essential in urban wastewater treatment plants, construction sites, and chemical industry wastewater systems. Designed for efficiency and reliability, it effectively handles diverse and challenging media conditions, ensuring stable and uninterrupted performance. The intelligent models integrate IoT technology for remote monitoring and automated management, providing real-time operational insights that enable proactive maintenance, minimize downtime, and reduce repair costs. Whether in modern mining operations or large-scale industrial facilities, the BQS series stands out as a premier choice for efficient drainage and optimized operations. Its robust construction and advanced features make it an indispensable asset for maximizing productivity in demanding environments.

600m³/H 60m Large Flow Explosion Proof Submersible Wastewater Pump 185kW 247HP 1

600m³/H 60m Large Flow Explosion Proof Submersible Wastewater Pump 185kW 247HP 2

No. Model



Rated flow

(m3/h)



Rated head

(m)



Rated power

(kW)



Rated voltage

(V)



Synchronous

speed

(r/min)



Efficiency

(%)

Outlet
diameter
(mm)



1

BQS600-60-185



600



60



185



380/660 or 660/1140



1500



61.1



150













600m³/H 60m Large Flow Explosion Proof Submersible Wastewater Pump 185kW 247HP 3

  • Voltage: 380/660V, 660/1140V, 400V, 440V, 460V (customizable options available).
    Medium: Temperature ≤ 40°C, pH 4-10, medium density ≤ 1100 kg/m³ (customizable for special requirements).
    Submersion Depth: Up to 20m.
    Materials: Customizable for highly corrosive fluids.
    Solid Particles: The diameter of solid particles in the medium must comply with MT/T 671-2005 standards. Please specify any special requirements when ordering.
    Cable: MT818.5-2009 flame-retardant cable for coal mines.

600m³/H 60m Large Flow Explosion Proof Submersible Wastewater Pump 185kW 247HP 4

  • Suitable for hazardous environments with explosion risks, including methane (gas) and coal dust. Designed to handle mixed sewage containing insoluble materials such as silt, coal slime, coal slag, and fibers. Ideal for use in buildings, hospitals, residential areas, municipal projects, road construction, and industrial wastewater management, efficiently discharging wastewater, rainwater, and sewage with solid particles and long fibers. Customizable materials are available to ensure safe and reliable transport of corrosive liquids.

600m³/H 60m Large Flow Explosion Proof Submersible Wastewater Pump 185kW 247HP 5

600m³/H 60m Large Flow Explosion Proof Submersible Wastewater Pump 185kW 247HP 6

600m³/H 60m Large Flow Explosion Proof Submersible Wastewater Pump 185kW 247HP 7

DOUBLE-END MECHANICAL SEAL



Precision machining, high efficiency；

Excellent sealing performance, long service life.



ExdI/ExdbII EXPLOSION-PROOF MOTOR



Professional explosion-proof motors；
Boast stable performance and powerful driving force.



HIGH-PRECISION ROTOR



High-precision finish-machined rotor;

Operates smoothly with low shaft end runout.



HIGH QUALITY BEARING



High-load bearings;

High precision of components, reliable operation.



SUPPORT CUSTOMIZATION



Customizable stainless steel material;

Corrosion and rust resistant pump will be more durable.



PRECISION MEASUREMENT IN THREE COORDINATES



High precision, improve measurement efficiency;

Reduce human error.





600m³/H 60m Large Flow Explosion Proof Submersible Wastewater Pump 185kW 247HP 8

600m³/H 60m Large Flow Explosion Proof Submersible Wastewater Pump 185kW 247HP 9

600m³/H 60m Large Flow Explosion Proof Submersible Wastewater Pump 185kW 247HP 10

FAQ

Q1: What if the model I need is not in your catalog?
A: We offer full customization, including flow rate, head, material, and additional features. Simply provide your requirements, and our expert technical team will develop a tailored solution with detailed drawings.

Q2: What type of pump is the BQS series?
A: The BQS series is a specialized explosion-proof submersible pump designed for mining applications, ensuring safe and reliable operation in environments with flammable gases or explosive dust.

Q3: Is the BQS series energy-efficient?
A: Yes, it is engineered for high efficiency and low energy consumption. With advanced hydraulic designs and optimized mechanical structures, it maximizes energy utilization and minimizes operational costs.

Q4: Can the BQS series handle liquids containing solid particles?
A: Absolutely. It features specially designed impellers and wear-resistant materials, enabling it to efficiently process wastewater containing solid particles while ensuring long-term stable performance.

Q5: What guarantees do I have when buying your products?
A: We provide a comprehensive after-sales service following the "2-4-24 standard"—a 2-hour response time, remote phone guidance within 4 hours, and a complete solution within 24 hours. On-site support is also available if required.

Q6: I want to be your dealer. What are the requirements?
A: We welcome partnerships! We recommend starting with a sample to evaluate performance. If you have specific requirements or modification requests, our technical team is always ready to assist. Looking forward to working together!





Tags:

submersible waste pump

submersible pump

explosion proof submersible pump

RELATED PRODUCTS
BQS 55kW Explosion Proof Submersible Pumps Durable And Efficient Performance For Challenging Environments Video

BQS 55kW Explosion Proof Submersible Pumps Durable And Efficient Performance For Challenging Environments

Get Best Price
Reliable BQS 55kW Explosion Proof Submersible Pump For Mining And Oil Extraction Operations Video

Reliable BQS 55kW Explosion Proof Submersible Pump For Mining And Oil Extraction Operations

Get Best Price
Robust Explosion Proof Submersible Sump Pump BQS 45kW For Industrial Use Video

Robust Explosion Proof Submersible Sump Pump BQS 45kW For Industrial Use

Get Best Price
Mining And Oil Extraction Explosion Proof Submersible Pump BQS 45kW Video

Mining And Oil Extraction Explosion Proof Submersible Pump BQS 45kW

Get Best Price
ExdIIBT4/CT4 Explosion Proof Submersible Pump Manufacturers 45kW 90 m³/h Video

ExdIIBT4/CT4 Explosion Proof Submersible Pump Manufacturers 45kW 90 m³/h

Get Best Price
45kW Submersible Drainage Pump Explosion Proof RAL 6029 Color 3000 R/Min Video

45kW Submersible Drainage Pump Explosion Proof RAL 6029 Color 3000 R/Min

Get Best Price
High Flow Explosion Proof Submersible Pump 45kW 30 m³/h For Mining And Oil Extraction Dewatering Sewage Pump Video

High Flow Explosion Proof Submersible Pump 45kW 30 m³/h For Mining And Oil Extraction Dewatering Sewage Pump

Get Best Price
600m³/H 60m Large Flow Explosion Proof Submersible Wastewater Pump 185kW 247HP Video

600m³/H 60m Large Flow Explosion Proof Submersible Wastewater Pump 185kW 247HP

Get Best Price
Good price online

Products Details

Home > Products >
Explosion Proof Submersible Pumps
>
600m³/H 60m Large Flow Explosion Proof Submersible Wastewater Pump 185kW 247HP
All Category

Submersible Sewage Pump

Submersible Drainage Pump

High Head Submersible Pump

Explosion Proof Submersible Pumps

Portable Submersible Pump

High Voltage Pump

Submersible Stainless Steel Pumps

Submersible Slurry Pump

Submersible Agitator Pump

Pneumatic Diaphragm Pump

Pneumatic Submersible Pump

Portable Slurry Pump

Pump Control Panel
name
  • name
  • name
  • name
  • name

600m³/H 60m Large Flow Explosion Proof Submersible Wastewater Pump 185kW 247HP

Brand Name: ATPUMP
Model Number: BQS250-250/5-280/N
MOQ: 1
Price: USD 219-71999 / set
Packaging Details: Wooden box
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Brand Name:
ATPUMP
Certification:
CE、ISO 9001、ISO 14001、ISO45001
Model Number:
BQS250-250/5-280/N
Rated Flow:
600 M³/h
Rated Head:
60 M
Rated Power:
185kw
Rated Voltage:
380/660 Or 660/1140 V
Synchronous Speed:
1500 R/min
Maximum Diameter Of Passed Particles:
10 Mm
Outlet Diameter:
200 Mm
Color:
RAL 6029
Material:
QT600-3, SS304, SS316, SS316L, Duplex Stainless Steel,high Chromium Alloy
Medium Temperature:
≤40℃
PH:
4-10
Medium Density:
≤1100 Kg/m³
Submergence Depth:
≤20m
Cable Length（Standard）:
15m（Customizable）
Cable Standards:
MT818.5-2009 Flame-retardant Cable
Motor Installation Form:
Built-in Sturcture
Customizable:
Yes
Explosion-Proof Rating:
ExdIIBT4/CT4
Insulation Rating:
F/H
Frequency:
50Hz / 60Hz
Pump Type:
Submersible Electric Pump
Power Range:
1.5-315kW
Drive:
Electric Pump
Minimum Order Quantity:
1
Price:
USD 219-71999 / set
Packaging Details:
Wooden box
Delivery Time:
20-35 work days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
100000 sets per year
Highlight:

submersible wastewater pump 185kw

,

600m submersible sewage pump

,

600m submersible wastewater pump

Product Description

185kW 247HP 600m³/h 60m Large-Flow Explosion-Proof Submersible Pump for Mining and Oil Extraction – Powerful and Reliable Performance600m³/H 60m Large Flow Explosion Proof Submersible Wastewater Pump 185kW 247HP 0



The BQS series extends its applications beyond mining, proving essential in urban wastewater treatment plants, construction sites, and chemical industry wastewater systems. Designed for efficiency and reliability, it effectively handles diverse and challenging media conditions, ensuring stable and uninterrupted performance. The intelligent models integrate IoT technology for remote monitoring and automated management, providing real-time operational insights that enable proactive maintenance, minimize downtime, and reduce repair costs. Whether in modern mining operations or large-scale industrial facilities, the BQS series stands out as a premier choice for efficient drainage and optimized operations. Its robust construction and advanced features make it an indispensable asset for maximizing productivity in demanding environments.

600m³/H 60m Large Flow Explosion Proof Submersible Wastewater Pump 185kW 247HP 1

600m³/H 60m Large Flow Explosion Proof Submersible Wastewater Pump 185kW 247HP 2

No. Model



Rated flow

(m3/h)



Rated head

(m)



Rated power

(kW)



Rated voltage

(V)



Synchronous

speed

(r/min)



Efficiency

(%)

Outlet
diameter
(mm)



1

BQS600-60-185



600



60



185



380/660 or 660/1140



1500



61.1



150













600m³/H 60m Large Flow Explosion Proof Submersible Wastewater Pump 185kW 247HP 3

  • Voltage: 380/660V, 660/1140V, 400V, 440V, 460V (customizable options available).
    Medium: Temperature ≤ 40°C, pH 4-10, medium density ≤ 1100 kg/m³ (customizable for special requirements).
    Submersion Depth: Up to 20m.
    Materials: Customizable for highly corrosive fluids.
    Solid Particles: The diameter of solid particles in the medium must comply with MT/T 671-2005 standards. Please specify any special requirements when ordering.
    Cable: MT818.5-2009 flame-retardant cable for coal mines.

600m³/H 60m Large Flow Explosion Proof Submersible Wastewater Pump 185kW 247HP 4

  • Suitable for hazardous environments with explosion risks, including methane (gas) and coal dust. Designed to handle mixed sewage containing insoluble materials such as silt, coal slime, coal slag, and fibers. Ideal for use in buildings, hospitals, residential areas, municipal projects, road construction, and industrial wastewater management, efficiently discharging wastewater, rainwater, and sewage with solid particles and long fibers. Customizable materials are available to ensure safe and reliable transport of corrosive liquids.

600m³/H 60m Large Flow Explosion Proof Submersible Wastewater Pump 185kW 247HP 5

600m³/H 60m Large Flow Explosion Proof Submersible Wastewater Pump 185kW 247HP 6

600m³/H 60m Large Flow Explosion Proof Submersible Wastewater Pump 185kW 247HP 7

DOUBLE-END MECHANICAL SEAL



Precision machining, high efficiency；

Excellent sealing performance, long service life.



ExdI/ExdbII EXPLOSION-PROOF MOTOR



Professional explosion-proof motors；
Boast stable performance and powerful driving force.



HIGH-PRECISION ROTOR



High-precision finish-machined rotor;

Operates smoothly with low shaft end runout.



HIGH QUALITY BEARING



High-load bearings;

High precision of components, reliable operation.



SUPPORT CUSTOMIZATION



Customizable stainless steel material;

Corrosion and rust resistant pump will be more durable.



PRECISION MEASUREMENT IN THREE COORDINATES



High precision, improve measurement efficiency;

Reduce human error.

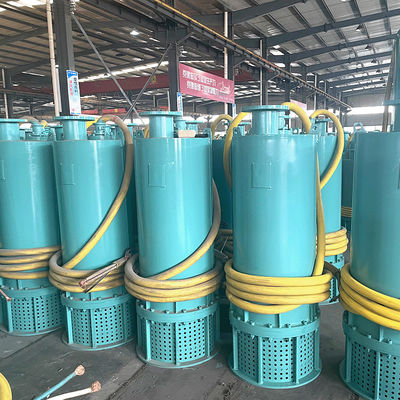

600m³/H 60m Large Flow Explosion Proof Submersible Wastewater Pump 185kW 247HP 8

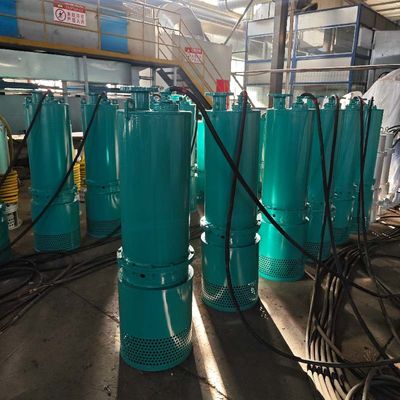

600m³/H 60m Large Flow Explosion Proof Submersible Wastewater Pump 185kW 247HP 9

600m³/H 60m Large Flow Explosion Proof Submersible Wastewater Pump 185kW 247HP 10

FAQ

Q1: What if the model I need is not in your catalog?
A: We offer full customization, including flow rate, head, material, and additional features. Simply provide your requirements, and our expert technical team will develop a tailored solution with detailed drawings.

Q2: What type of pump is the BQS series?
A: The BQS series is a specialized explosion-proof submersible pump designed for mining applications, ensuring safe and reliable operation in environments with flammable gases or explosive dust.

Q3: Is the BQS series energy-efficient?
A: Yes, it is engineered for high efficiency and low energy consumption. With advanced hydraulic designs and optimized mechanical structures, it maximizes energy utilization and minimizes operational costs.

Q4: Can the BQS series handle liquids containing solid particles?
A: Absolutely. It features specially designed impellers and wear-resistant materials, enabling it to efficiently process wastewater containing solid particles while ensuring long-term stable performance.

Q5: What guarantees do I have when buying your products?
A: We provide a comprehensive after-sales service following the "2-4-24 standard"—a 2-hour response time, remote phone guidance within 4 hours, and a complete solution within 24 hours. On-site support is also available if required.

Q6: I want to be your dealer. What are the requirements?
A: We welcome partnerships! We recommend starting with a sample to evaluate performance. If you have specific requirements or modification requests, our technical team is always ready to assist. Looking forward to working together!





Tags:

submersible waste pump

submersible pump

explosion proof submersible pump

RELATED PRODUCTS
BQS 55kW Explosion Proof Submersible Pumps Durable And Efficient Performance For Challenging Environments Video

BQS 55kW Explosion Proof Submersible Pumps Durable And Efficient Performance For Challenging Environments

Get Best Price
Reliable BQS 55kW Explosion Proof Submersible Pump For Mining And Oil Extraction Operations Video

Reliable BQS 55kW Explosion Proof Submersible Pump For Mining And Oil Extraction Operations

Get Best Price
Robust Explosion Proof Submersible Sump Pump BQS 45kW For Industrial Use Video

Robust Explosion Proof Submersible Sump Pump BQS 45kW For Industrial Use

Get Best Price
Mining And Oil Extraction Explosion Proof Submersible Pump BQS 45kW Video

Mining And Oil Extraction Explosion Proof Submersible Pump BQS 45kW

Get Best Price
ExdIIBT4/CT4 Explosion Proof Submersible Pump Manufacturers 45kW 90 m³/h Video

ExdIIBT4/CT4 Explosion Proof Submersible Pump Manufacturers 45kW 90 m³/h

Get Best Price
45kW Submersible Drainage Pump Explosion Proof RAL 6029 Color 3000 R/Min Video

45kW Submersible Drainage Pump Explosion Proof RAL 6029 Color 3000 R/Min

Get Best Price
High Flow Explosion Proof Submersible Pump 45kW 30 m³/h For Mining And Oil Extraction Dewatering Sewage Pump Video

High Flow Explosion Proof Submersible Pump 45kW 30 m³/h For Mining And Oil Extraction Dewatering Sewage Pump

Get Best Price
600m³/H 60m Large Flow Explosion Proof Submersible Wastewater Pump 185kW 247HP Video

600m³/H 60m Large Flow Explosion Proof Submersible Wastewater Pump 185kW 247HP

Get Best Price
15054873108
Quick link
Home About Us products Application news Cases Contact Us
Quick Contact

Address

Jining,Shandong,China

Tel

86-537-277-1006

15054873108
Our Newsletter
Subscribe to our newsletter for discounts and more.
Privacy Policy |  Sitemap  | China Good Quality Submersible Sewage Pump Supplier. Copyright © 2025 Jining Antai Mine Equipment Manufacturing Co., Ltd. . All Rights Reserved.
