| Brand Name: | ATPUMP |
| Model Number: | BQS80-480/4-250/N |
| MOQ: | 1 |
| Price: | USD 219-71999 / set |
| Packaging Details: | Wooden box |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

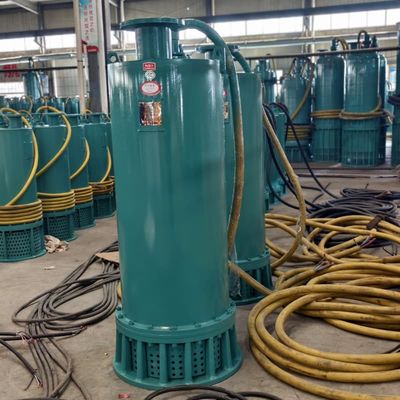

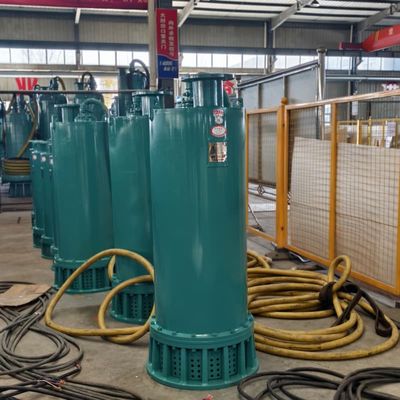

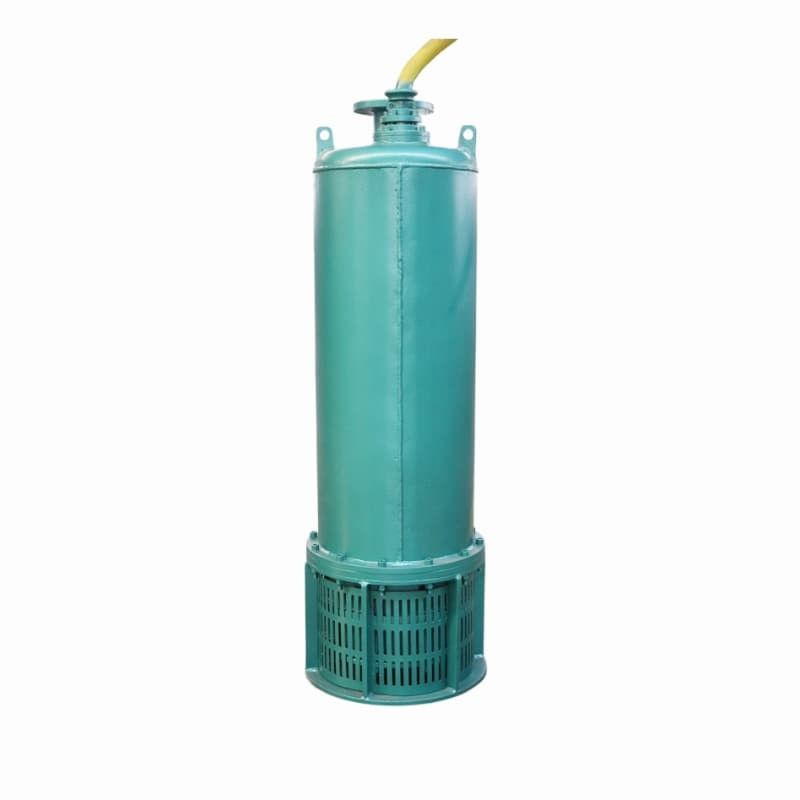

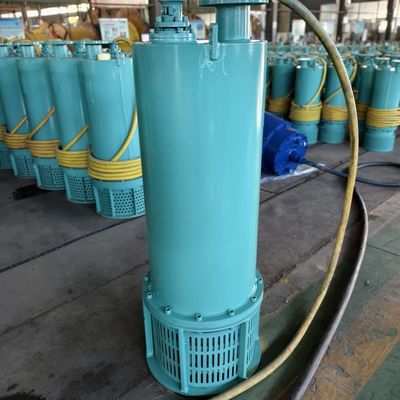

250kW 180hp 80m³/h 480m Large-Flow Explosion-Proof Submersible Pump For Mining and Oil Extraction Powerful and Reliable
The BQS series of mining explosion-proof submersible pumps are highly efficient and energy-saving devices specifically designed for mine dewatering and industrial wastewater treatment. This series includes a variety of models to meet different flow rate and head requirements, with power outputs ranging from 1.5 kW to 315 kW. For example, model BQS80-480/4-250/N can provide a head of 480 meters at a flow rate of 80 cubic meters per hour. The BQS pumps feature advanced hydraulic optimization design to ensure optimal performance under various operating conditions. Additionally, these pumps come equipped with automatic control systems that allow them to start and stop automatically without human intervention, significantly reducing labor costs. Their compact design and lightweight structure also make installation and maintenance more convenient.
| No. | Model |
Rated flow (m3/h) |
Rated head (m) |
Rated power (kW) |
Rated voltage (V) |
Synchronous speed (r/min) |
Efficiency (%) |
Outlet
diameter
(mm)
|
|---|---|---|---|---|---|---|---|---|
|
1 |
BQS80-480/4-250/N
|
80 |
480 |
250 |
380/660 or 660/1140 |
3000 |
44.8 |
100 |
|
DOUBLE-END MECHANICAL SEAL |
Precision machining, high efficiency； Excellent sealing performance, long service life.
|
|---|---|
|
ExdI/ExdbII EXPLOSION-PROOF MOTOR |
Professional explosion-proof motors；
|
|
HIGH-PRECISION ROTOR |
High-precision finish-machined rotor; Operates smoothly with low shaft end runout.
|
|
HIGH QUALITY BEARING |
High-load bearings; High precision of components, reliable operation.
|
|
SUPPORT CUSTOMIZATION |
Customizable stainless steel material; Corrosion and rust resistant pump will be more durable.
|
|
PRECISION MEASUREMENT IN THREE COORDINATES |
High precision, improve measurement efficiency; Reduce human error.
|
Q1: What if the model I need is not in your catalog?
A: We can accept customization, including but not limited to flow rate, head, material, function, etc. You only need to tell me the relevant information, and we have a professional technical team to provide you with plans and drawings.
Q2: What type of pump is the BQS series?
A: The BQS series is a mine-specific explosion-proof submersible pump designed to operate safely in environments with flammable gases or explosive dust.
Q3: What environments are BQS series pumps suitable for?
A: The BQS series pumps are suitable for mine dewatering and industrial wastewater treatment containing corrosive liquids and abrasive particles.
Q4: What is the maximum flow rate and head of BQS pumps?
A: The maximum flow rate of BQS series pumps can reach 2000 cubic meters per hour, with a maximum head of up to 800 meters.
Q5: What guarantees do I have when buying your products?
A: Our after-sales service implements the "2-4-24 standard". 2-hour response, telephone remote guidance within 4 hours, and solutions within 24 hours. If there is a need, we can provide door-to-door after-sales service.
Q6: I want to be your dealer, what are the conditions?
A: No problem at all, dear, it is recommended that you purchase a sample first to try it out. If you have any special needs and modification suggestions, our technical team is at your service at any time. Looking forward to our further cooperation!
