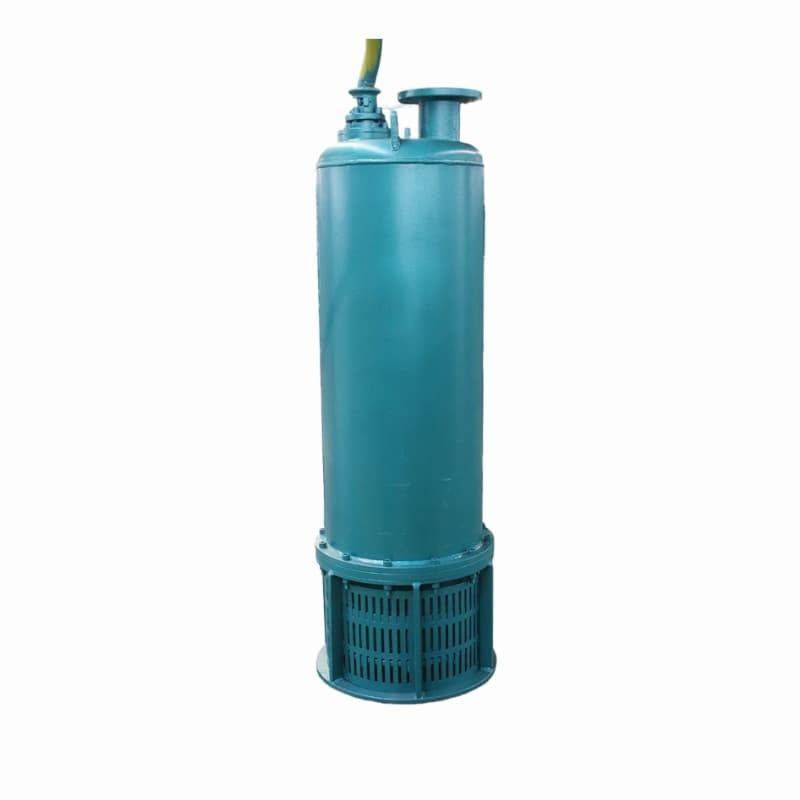

400m 180hp 100m³/H Industrial Submersible Water Pump Large Flow Explosion Proof

Brand Name: ATPUMP
Model Number: BQS100-400/4-250/N
MOQ: 1
Price: USD 219-71999 / set
Packaging Details: Wooden box
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE、ISO 9001、ISO 14001、ISO45001
Rated Flow:
100 M³/h
Rated Head:
400 M
Rated Power:
250 Kw
Rated Voltage:
380/660 Or 660/1140 V
Synchronous Speed:
3000 R/min
Maximum Diameter Of Passed Particles:
10 Mm
Outlet Diameter:
100 Mm
Color:
RAL 6029
Material:
QT600-3, SS304, SS316, SS316L, Duplex Stainless Steel,high Chromium Alloy
Medium Temperature:
≤40℃
PH:
4-10
Medium Density:
≤1100 Kg/m³
Submergence Depth:
≤20m
Cable Length（Standard）:
15m（Customizable）
Cable Standards:
MT818.5-2009 Flame-retardant Cable
Motor Installation Form:
Built-in Sturcture
Customizable:
Yes
Explosion-Proof Rating:
ExdIIBT4/CT4
Insulation Rating:
F/H
Frequency:
50Hz / 60Hz
Pump Type:
Submersible Electric Pump
Power Range:
1.5-315kW
Drive:
Electric Pump
Supply Ability:
100000 sets per year
Highlight:

100m³/h industrial submersible water pump

,

industrial submersible water pump large flow

,

180hp industrial submersible pump

Product Description

250kW 180hp 100m³/h 400m Large-Flow Explosion-Proof Submersible Pump For Mining and Oil Extraction Powerful and Reliable400m 180hp 100m³/H Industrial Submersible Water Pump Large Flow Explosion Proof 0



The BQS series of mining explosion-proof submersible pumps are high-performance drainage equipment specifically designed for mines and heavy industries, offering exceptional safety and durability. This series covers a wide power range from 1.5 kW to 315 kW and can handle varying flow rates from 10 cubic meters per hour to 2000 cubic meters per hour. For instance, model BQS100-400/4-250/N provides a head of 400 meters at a flow rate of 100 cubic meters per hour. The BQS pumps feature advanced explosion-proof technology and unique hydraulic design, ensuring stable operation under high loads and harsh conditions. Additionally, these pumps come equipped with dual mechanical seals and built-in thermal protection devices, further enhancing their reliability and safety.

400m 180hp 100m³/H Industrial Submersible Water Pump Large Flow Explosion Proof 1

400m 180hp 100m³/H Industrial Submersible Water Pump Large Flow Explosion Proof 2

No. Model



Rated flow

(m3/h)



Rated head

(m)



Rated power

(kW)



Rated voltage

(V)



Synchronous

speed

(r/min)



Efficiency

(%)

Outlet
diameter
(mm)



1

BQS100-400/4-250/N



100



400



250



380/660 or 660/1140



3000



46.5



100













400m 180hp 100m³/H Industrial Submersible Water Pump Large Flow Explosion Proof 3

  • Voltage: 380/660V,660/1140V,400V,440V,460V, customizable options are available.
  • Medium: Temperature not exceeding 40°C, PH 4-10, medium density ≤ 1100 kg/m³.(Customizable for special requirements).
  • Submersion depth: ≤20m.
  • Materials suitable for highly corrosive fluids can be customized.
  • The diameter of solid particles in the medium should comply with the regulations of MT/T671-2005. Please specify any special requirements when ordering.
  • MT818.5-2009 flame-retardant cable for coal mines.

400m 180hp 100m³/H Industrial Submersible Water Pump Large Flow Explosion Proof 4

  • Applicable to places with explosion hazards such as methane (gas), coal dust, etc.
  • It can transport mixed sewage containing insoluble substances such as silt, coal slime, coal slag, and fiber.
  • Applicable to buildings, hospitals, residential areas, municipal engineering, road construction, factory sewage discharge, etc., and discharges wastewater, rainwater and sewage containing solid particles and long fibers.
  • The material of the product can be changed to cope with the situation of conveying corrosive liquids.

400m 180hp 100m³/H Industrial Submersible Water Pump Large Flow Explosion Proof 5

400m 180hp 100m³/H Industrial Submersible Water Pump Large Flow Explosion Proof 6

400m 180hp 100m³/H Industrial Submersible Water Pump Large Flow Explosion Proof 7

DOUBLE-END MECHANICAL SEAL



Precision machining, high efficiency；

Excellent sealing performance, long service life.



ExdI/ExdbII EXPLOSION-PROOF MOTOR



Professional explosion-proof motors；
Boast stable performance and powerful driving force.



HIGH-PRECISION ROTOR



High-precision finish-machined rotor;

Operates smoothly with low shaft end runout.



HIGH QUALITY BEARING



High-load bearings;

High precision of components, reliable operation.



SUPPORT CUSTOMIZATION



Customizable stainless steel material;

Corrosion and rust resistant pump will be more durable.



PRECISION MEASUREMENT IN THREE COORDINATES



High precision, improve measurement efficiency;

Reduce human error.





400m 180hp 100m³/H Industrial Submersible Water Pump Large Flow Explosion Proof 8

400m 180hp 100m³/H Industrial Submersible Water Pump Large Flow Explosion Proof 9

400m 180hp 100m³/H Industrial Submersible Water Pump Large Flow Explosion Proof 10

FAQ


Q1: What if the model I need is not in your catalog?
A: We can accept customization, including but not limited to flow rate, head, material, function, etc. You only need to tell me the relevant information, and we have a professional technical team to provide you with plans and drawings.



Q2: What type of pump is the BQS series?
A: The BQS series is a mine-specific explosion-proof submersible pump designed to operate safely in environments with flammable gases or explosive dust.



Q3: What environments are BQS series pumps suitable for?
A: The BQS series pumps are suitable for mine dewatering and industrial wastewater treatment containing corrosive liquids and abrasive particles.



Q4: What is the maximum flow rate and head of BQS pumps?
A: The maximum flow rate of BQS series pumps can reach 2000 cubic meters per hour, with a maximum head of up to 800 meters.



Q5: What guarantees do I have when buying your products?

A: Our after-sales service implements the "2-4-24 standard". 2-hour response, telephone remote guidance within 4 hours, and solutions within 24 hours. If there is a need, we can provide door-to-door after-sales service.



Q6: I want to be your dealer, what are the conditions?

A: No problem at all, dear, it is recommended that you purchase a sample first to try it out. If you have any special needs and modification suggestions, our technical team is at your service at any time. Looking forward to our further cooperation!



Tags:

submersible drainage sump pump

submersible drainage pumps

multistage submersible pump

RELATED PRODUCTS
160kw 120hp 500m³/H Explosion Proof Submersible Electric Pump With Built In Motor Coal Mines Metal Mines Video

160kw 120hp 500m³/H Explosion Proof Submersible Electric Pump With Built In Motor Coal Mines Metal Mines

Get Best Price
30m Head BQS Submersible Drainage Pump 160kw 120hp 1000m³/H 1.5kw-315kw Video

30m Head BQS Submersible Drainage Pump 160kw 120hp 1000m³/H 1.5kw-315kw

Get Best Price
185kw 140hp 900m³/H 40m Head BQS Submersible Drainage Pumps Explosion Proof Video

185kw 140hp 900m³/H 40m Head BQS Submersible Drainage Pumps Explosion Proof

Get Best Price
Explosion Proof Drainage Submersible Pump 185kw 135hp 80m³/H 350m Head Video

Explosion Proof Drainage Submersible Pump 185kw 135hp 80m³/H 350m Head

Get Best Price
BQS Dewatering Sewage Pump 200kw 150hp 1500m³/H 25m Head multistage submersible pump Video

BQS Dewatering Sewage Pump 200kw 150hp 1500m³/H 25m Head multistage submersible pump

Get Best Price
1.5kw-315kw Submersible Drainage Pump With Built In Motor Coal Mines Metal Mines 220kw 180hp 320m³/H 150m Head Video

1.5kw-315kw Submersible Drainage Pump With Built In Motor Coal Mines Metal Mines 220kw 180hp 320m³/H 150m Head

Get Best Price
220kw 180hp Submersible Drainage Sump Pump 200m³/H 240m Head Video

220kw 180hp Submersible Drainage Sump Pump 200m³/H 240m Head

Get Best Price
70m Head Commercial Electric Submersible Pump 250kw 180hp 800m³/H Video

70m Head Commercial Electric Submersible Pump 250kw 180hp 800m³/H

Get Best Price
Good price online

Products Details

Home > Products >
Submersible Drainage Pump
>
400m 180hp 100m³/H Industrial Submersible Water Pump Large Flow Explosion Proof
All Category

Submersible Sewage Pump

Submersible Drainage Pump

High Head Submersible Pump

Explosion Proof Submersible Pumps

Portable Submersible Pump

High Voltage Pump

Submersible Stainless Steel Pumps

Submersible Slurry Pump

Submersible Agitator Pump

Pneumatic Diaphragm Pump

Pneumatic Submersible Pump

Portable Slurry Pump

Pump Control Panel
name
  • name
  • name
  • name
  • name
  • name

400m 180hp 100m³/H Industrial Submersible Water Pump Large Flow Explosion Proof

Brand Name: ATPUMP
Model Number: BQS100-400/4-250/N
MOQ: 1
Price: USD 219-71999 / set
Packaging Details: Wooden box
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Brand Name:
ATPUMP
Certification:
CE、ISO 9001、ISO 14001、ISO45001
Model Number:
BQS100-400/4-250/N
Rated Flow:
100 M³/h
Rated Head:
400 M
Rated Power:
250 Kw
Rated Voltage:
380/660 Or 660/1140 V
Synchronous Speed:
3000 R/min
Maximum Diameter Of Passed Particles:
10 Mm
Outlet Diameter:
100 Mm
Color:
RAL 6029
Material:
QT600-3, SS304, SS316, SS316L, Duplex Stainless Steel,high Chromium Alloy
Medium Temperature:
≤40℃
PH:
4-10
Medium Density:
≤1100 Kg/m³
Submergence Depth:
≤20m
Cable Length（Standard）:
15m（Customizable）
Cable Standards:
MT818.5-2009 Flame-retardant Cable
Motor Installation Form:
Built-in Sturcture
Customizable:
Yes
Explosion-Proof Rating:
ExdIIBT4/CT4
Insulation Rating:
F/H
Frequency:
50Hz / 60Hz
Pump Type:
Submersible Electric Pump
Power Range:
1.5-315kW
Drive:
Electric Pump
Minimum Order Quantity:
1
Price:
USD 219-71999 / set
Packaging Details:
Wooden box
Delivery Time:
20-35 work days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
100000 sets per year
Highlight:

100m³/h industrial submersible water pump

,

industrial submersible water pump large flow

,

180hp industrial submersible pump

Product Description

250kW 180hp 100m³/h 400m Large-Flow Explosion-Proof Submersible Pump For Mining and Oil Extraction Powerful and Reliable400m 180hp 100m³/H Industrial Submersible Water Pump Large Flow Explosion Proof 0



The BQS series of mining explosion-proof submersible pumps are high-performance drainage equipment specifically designed for mines and heavy industries, offering exceptional safety and durability. This series covers a wide power range from 1.5 kW to 315 kW and can handle varying flow rates from 10 cubic meters per hour to 2000 cubic meters per hour. For instance, model BQS100-400/4-250/N provides a head of 400 meters at a flow rate of 100 cubic meters per hour. The BQS pumps feature advanced explosion-proof technology and unique hydraulic design, ensuring stable operation under high loads and harsh conditions. Additionally, these pumps come equipped with dual mechanical seals and built-in thermal protection devices, further enhancing their reliability and safety.

400m 180hp 100m³/H Industrial Submersible Water Pump Large Flow Explosion Proof 1

400m 180hp 100m³/H Industrial Submersible Water Pump Large Flow Explosion Proof 2

No. Model



Rated flow

(m3/h)



Rated head

(m)



Rated power

(kW)



Rated voltage

(V)



Synchronous

speed

(r/min)



Efficiency

(%)

Outlet
diameter
(mm)



1

BQS100-400/4-250/N



100



400



250



380/660 or 660/1140



3000



46.5



100













400m 180hp 100m³/H Industrial Submersible Water Pump Large Flow Explosion Proof 3

  • Voltage: 380/660V,660/1140V,400V,440V,460V, customizable options are available.
  • Medium: Temperature not exceeding 40°C, PH 4-10, medium density ≤ 1100 kg/m³.(Customizable for special requirements).
  • Submersion depth: ≤20m.
  • Materials suitable for highly corrosive fluids can be customized.
  • The diameter of solid particles in the medium should comply with the regulations of MT/T671-2005. Please specify any special requirements when ordering.
  • MT818.5-2009 flame-retardant cable for coal mines.

400m 180hp 100m³/H Industrial Submersible Water Pump Large Flow Explosion Proof 4

  • Applicable to places with explosion hazards such as methane (gas), coal dust, etc.
  • It can transport mixed sewage containing insoluble substances such as silt, coal slime, coal slag, and fiber.
  • Applicable to buildings, hospitals, residential areas, municipal engineering, road construction, factory sewage discharge, etc., and discharges wastewater, rainwater and sewage containing solid particles and long fibers.
  • The material of the product can be changed to cope with the situation of conveying corrosive liquids.

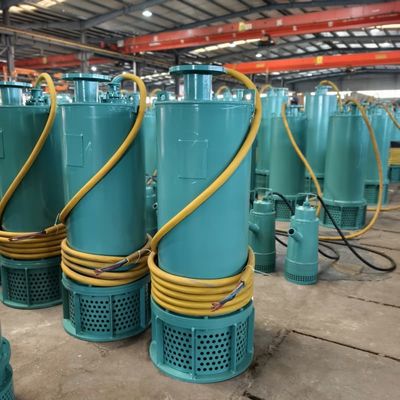

400m 180hp 100m³/H Industrial Submersible Water Pump Large Flow Explosion Proof 5

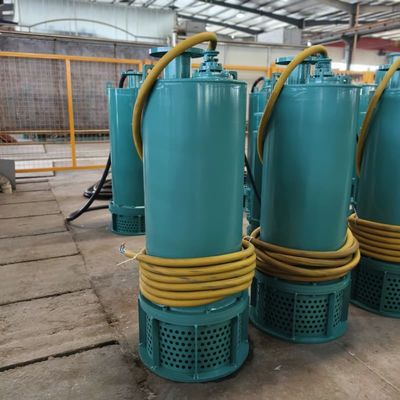

400m 180hp 100m³/H Industrial Submersible Water Pump Large Flow Explosion Proof 6

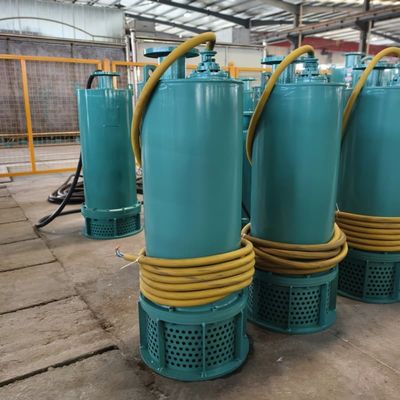

400m 180hp 100m³/H Industrial Submersible Water Pump Large Flow Explosion Proof 7

DOUBLE-END MECHANICAL SEAL



Precision machining, high efficiency；

Excellent sealing performance, long service life.



ExdI/ExdbII EXPLOSION-PROOF MOTOR



Professional explosion-proof motors；
Boast stable performance and powerful driving force.



HIGH-PRECISION ROTOR



High-precision finish-machined rotor;

Operates smoothly with low shaft end runout.



HIGH QUALITY BEARING



High-load bearings;

High precision of components, reliable operation.



SUPPORT CUSTOMIZATION



Customizable stainless steel material;

Corrosion and rust resistant pump will be more durable.



PRECISION MEASUREMENT IN THREE COORDINATES



High precision, improve measurement efficiency;

Reduce human error.





400m 180hp 100m³/H Industrial Submersible Water Pump Large Flow Explosion Proof 8

400m 180hp 100m³/H Industrial Submersible Water Pump Large Flow Explosion Proof 9

400m 180hp 100m³/H Industrial Submersible Water Pump Large Flow Explosion Proof 10

FAQ


Q1: What if the model I need is not in your catalog?
A: We can accept customization, including but not limited to flow rate, head, material, function, etc. You only need to tell me the relevant information, and we have a professional technical team to provide you with plans and drawings.



Q2: What type of pump is the BQS series?
A: The BQS series is a mine-specific explosion-proof submersible pump designed to operate safely in environments with flammable gases or explosive dust.



Q3: What environments are BQS series pumps suitable for?
A: The BQS series pumps are suitable for mine dewatering and industrial wastewater treatment containing corrosive liquids and abrasive particles.



Q4: What is the maximum flow rate and head of BQS pumps?
A: The maximum flow rate of BQS series pumps can reach 2000 cubic meters per hour, with a maximum head of up to 800 meters.



Q5: What guarantees do I have when buying your products?

A: Our after-sales service implements the "2-4-24 standard". 2-hour response, telephone remote guidance within 4 hours, and solutions within 24 hours. If there is a need, we can provide door-to-door after-sales service.



Q6: I want to be your dealer, what are the conditions?

A: No problem at all, dear, it is recommended that you purchase a sample first to try it out. If you have any special needs and modification suggestions, our technical team is at your service at any time. Looking forward to our further cooperation!



Tags:

submersible drainage sump pump

submersible drainage pumps

multistage submersible pump

RELATED PRODUCTS
160kw 120hp 500m³/H Explosion Proof Submersible Electric Pump With Built In Motor Coal Mines Metal Mines Video

160kw 120hp 500m³/H Explosion Proof Submersible Electric Pump With Built In Motor Coal Mines Metal Mines

Get Best Price
30m Head BQS Submersible Drainage Pump 160kw 120hp 1000m³/H 1.5kw-315kw Video

30m Head BQS Submersible Drainage Pump 160kw 120hp 1000m³/H 1.5kw-315kw

Get Best Price
185kw 140hp 900m³/H 40m Head BQS Submersible Drainage Pumps Explosion Proof Video

185kw 140hp 900m³/H 40m Head BQS Submersible Drainage Pumps Explosion Proof

Get Best Price
Explosion Proof Drainage Submersible Pump 185kw 135hp 80m³/H 350m Head Video

Explosion Proof Drainage Submersible Pump 185kw 135hp 80m³/H 350m Head

Get Best Price
BQS Dewatering Sewage Pump 200kw 150hp 1500m³/H 25m Head multistage submersible pump Video

BQS Dewatering Sewage Pump 200kw 150hp 1500m³/H 25m Head multistage submersible pump

Get Best Price
1.5kw-315kw Submersible Drainage Pump With Built In Motor Coal Mines Metal Mines 220kw 180hp 320m³/H 150m Head Video

1.5kw-315kw Submersible Drainage Pump With Built In Motor Coal Mines Metal Mines 220kw 180hp 320m³/H 150m Head

Get Best Price
220kw 180hp Submersible Drainage Sump Pump 200m³/H 240m Head Video

220kw 180hp Submersible Drainage Sump Pump 200m³/H 240m Head

Get Best Price
70m Head Commercial Electric Submersible Pump 250kw 180hp 800m³/H Video

70m Head Commercial Electric Submersible Pump 250kw 180hp 800m³/H

Get Best Price
15054873108
Quick link
Home About Us products Application news Cases Contact Us
Quick Contact

Address

Jining,Shandong,China

Tel

86-537-277-1006

15054873108
Our Newsletter
Subscribe to our newsletter for discounts and more.
Privacy Policy |  Sitemap  | China Good Quality Submersible Sewage Pump Supplier. Copyright © 2025 Jining Antai Mine Equipment Manufacturing Co., Ltd. . All Rights Reserved.
