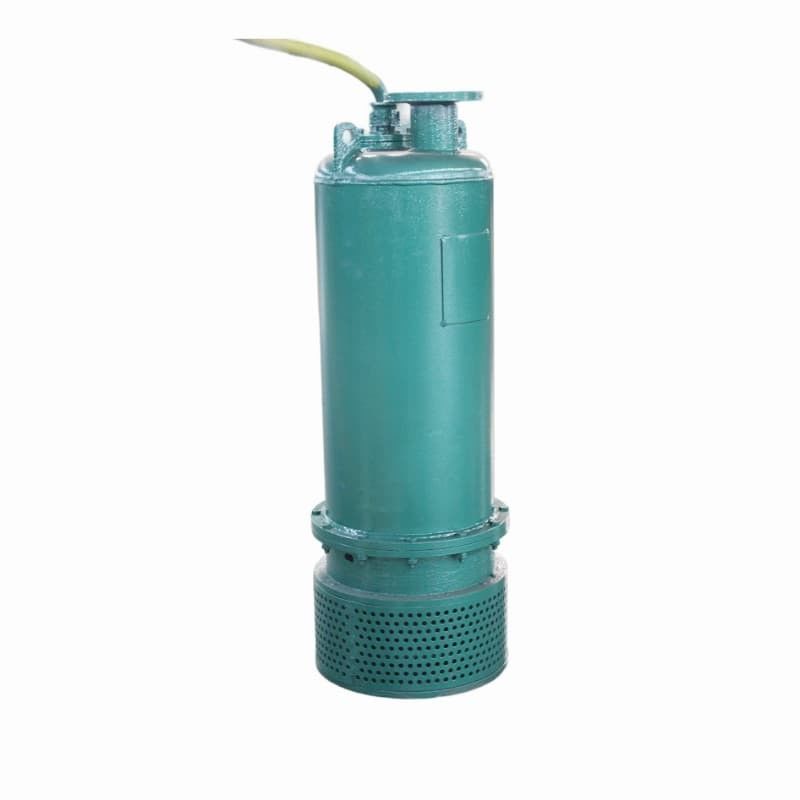

200hp 63m³/H 630m Submersible Wastewater Pump 280kW For Mining And Oil Extraction Powerful And Reliable

Brand Name: ATPUMP
Model Number: BQS63-630/6-280/N
MOQ: 1
Price: USD 219-71999 / set
Packaging Details: Wooden box
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE、ISO 9001、ISO 14001、ISO45001
Rated Flow:
63 M³/h
Rated Head:
630 M
Rated Power:
280 Kw
Rated Voltage:
380/660 Or 660/1140 V
Synchronous Speed:
3000 R/min
Maximum Diameter Of Passed Particles:
10 Mm
Outlet Diameter:
100 Mm
Color:
RAL 6029
Material:
QT600-3, SS304, SS316, SS316L, Duplex Stainless Steel,high Chromium Alloy
Medium Temperature:
≤40℃
PH:
4-10
Medium Density:
≤1100 Kg/m³
Submergence Depth:
≤20m
Cable Length（Standard）:
15m（Customizable）
Cable Standards:
MT818.5-2009 Flame-retardant Cable
Motor Installation Form:
Built-in Sturcture
Customizable:
Yes
Explosion-Proof Rating:
ExdIIBT4/CT4
Insulation Rating:
F/H
Frequency:
50Hz / 60Hz
Pump Type:
Submersible Electric Pump
Power Range:
1.5-315kW
Drive:
Electric Pump
Supply Ability:
100000 sets per year
Highlight:

630m submersible wastewater pump

,

submersible wastewater pump 280kw

,

200hp industrial submersible pump

Product Description

280kW 200hp 63m³/h 630m Large-Flow Explosion-Proof Submersible Pump For Mining and Oil Extraction Powerful and Reliable200hp 63m³/H 630m Submersible Wastewater Pump 280kW For Mining And Oil Extraction Powerful And Reliable 0



The BQS series of mining explosion-proof submersible pumps are high-performance devices tailored for mine and industrial wastewater treatment. This series encompasses a variety of models capable of meeting diverse flow requirements, ranging from 10 cubic meters per hour to 2000 cubic meters per hour, with maximum head capabilities up to 800 meters. For instance, the BQS63-630/6-280/N model provides a head of 630 meters at a flow rate of 63 cubic meters per hour, powered by a 280 kW motor. These pumps are manufactured using advanced explosion-proof technology and corrosion-resistant materials, ensuring safe and stable operation even in harsh environments. Additionally, the BQS series features optimized impeller and pump casing designs that significantly enhance overall pump performance and extend service life.

200hp 63m³/H 630m Submersible Wastewater Pump 280kW For Mining And Oil Extraction Powerful And Reliable 1

200hp 63m³/H 630m Submersible Wastewater Pump 280kW For Mining And Oil Extraction Powerful And Reliable 2

No. Model



Rated flow

(m3/h)



Rated head

(m)



Rated power

(kW)



Rated voltage

(V)



Synchronous

speed

(r/min)



Efficiency

(%)

Outlet
diameter
(mm)



1

BQS63-630/6-280/N



63



630



280



380/660 or 660/1140



3000



43.54



100













200hp 63m³/H 630m Submersible Wastewater Pump 280kW For Mining And Oil Extraction Powerful And Reliable 3

  • Voltage: 380/660V,660/1140V,400V,440V,460V, customizable options are available.
  • Medium: Temperature not exceeding 40°C, PH 4-10, medium density ≤ 1100 kg/m³.(Customizable for special requirements).
  • Submersion depth: ≤20m.
  • Materials suitable for highly corrosive fluids can be customized.
  • The diameter of solid particles in the medium should comply with the regulations of MT/T671-2005. Please specify any special requirements when ordering.
  • MT818.5-2009 flame-retardant cable for coal mines.

200hp 63m³/H 630m Submersible Wastewater Pump 280kW For Mining And Oil Extraction Powerful And Reliable 4

  • Applicable to places with explosion hazards such as methane (gas), coal dust, etc.
  • It can transport mixed sewage containing insoluble substances such as silt, coal slime, coal slag, and fiber.
  • Applicable to buildings, hospitals, residential areas, municipal engineering, road construction, factory sewage discharge, etc., and discharges wastewater, rainwater and sewage containing solid particles and long fibers.
  • The material of the product can be changed to cope with the situation of conveying corrosive liquids.

200hp 63m³/H 630m Submersible Wastewater Pump 280kW For Mining And Oil Extraction Powerful And Reliable 5

200hp 63m³/H 630m Submersible Wastewater Pump 280kW For Mining And Oil Extraction Powerful And Reliable 6

200hp 63m³/H 630m Submersible Wastewater Pump 280kW For Mining And Oil Extraction Powerful And Reliable 7

DOUBLE-END MECHANICAL SEAL



Precision machining, high efficiency；

Excellent sealing performance, long service life.



ExdI/ExdbII EXPLOSION-PROOF MOTOR



Professional explosion-proof motors；
Boast stable performance and powerful driving force.



HIGH-PRECISION ROTOR



High-precision finish-machined rotor;

Operates smoothly with low shaft end runout.



HIGH QUALITY BEARING



High-load bearings;

High precision of components, reliable operation.



SUPPORT CUSTOMIZATION



Customizable stainless steel material;

Corrosion and rust resistant pump will be more durable.



PRECISION MEASUREMENT IN THREE COORDINATES



High precision, improve measurement efficiency;

Reduce human error.





200hp 63m³/H 630m Submersible Wastewater Pump 280kW For Mining And Oil Extraction Powerful And Reliable 8

200hp 63m³/H 630m Submersible Wastewater Pump 280kW For Mining And Oil Extraction Powerful And Reliable 9

200hp 63m³/H 630m Submersible Wastewater Pump 280kW For Mining And Oil Extraction Powerful And Reliable 10

FAQ


Q1: What if the model I need is not in your catalog?
A: We can accept customization, including but not limited to flow rate, head, material, function, etc. You only need to tell me the relevant information, and we have a professional technical team to provide you with plans and drawings.



Q2: What type of pump is the BQS series?
A: The BQS series is a mine-specific explosion-proof submersible pump designed to operate safely in environments with flammable gases or explosive dust.



Q3: What environments are BQS series pumps suitable for?
A: The BQS series pumps are suitable for mine dewatering and industrial wastewater treatment containing corrosive liquids and abrasive particles.



Q4: Can the BQS series handle liquids containing solid particles?
A: Yes, the BQS series uses specially designed impellers and wear-resistant materials to effectively handle wastewater containing solid particles, ensuring long-term stable operation.



Q5: What guarantees do I have when buying your products?

A: Our after-sales service implements the "2-4-24 standard". 2-hour response, telephone remote guidance within 4 hours, and solutions within 24 hours. If there is a need, we can provide door-to-door after-sales service.



Q6: I want to be your dealer, what are the conditions?

A: No problem at all, dear, it is recommended that you purchase a sample first to try it out. If you have any special needs and modification suggestions, our technical team is at your service at any time. Looking forward to our further cooperation!
