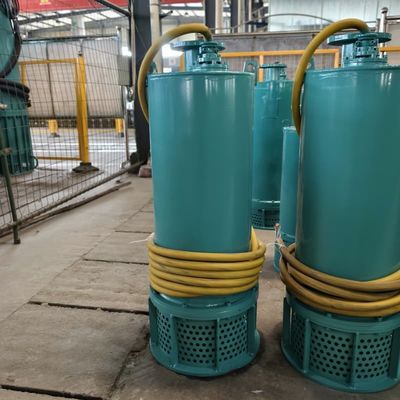

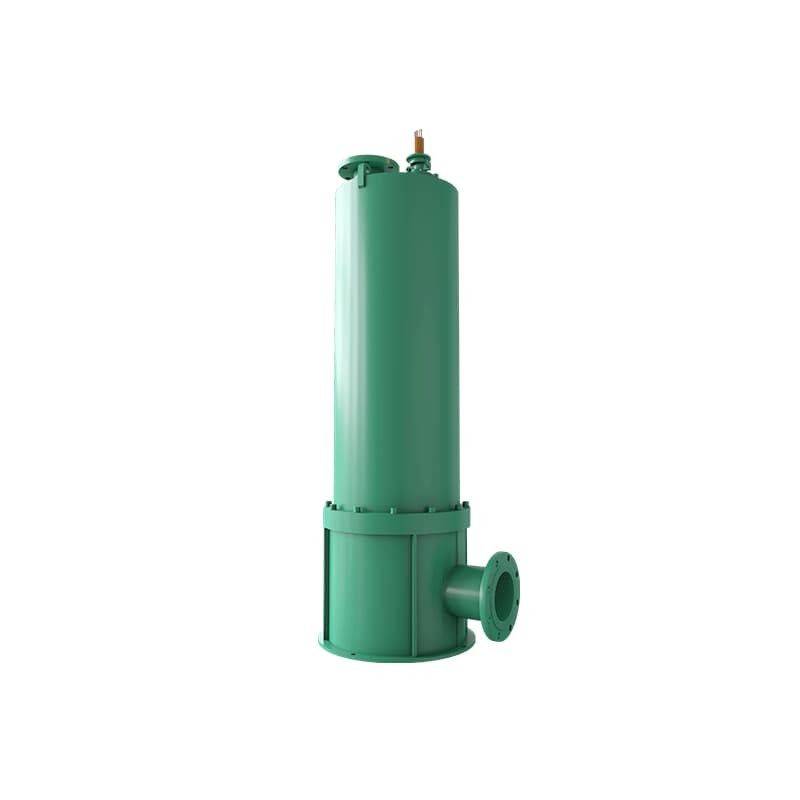

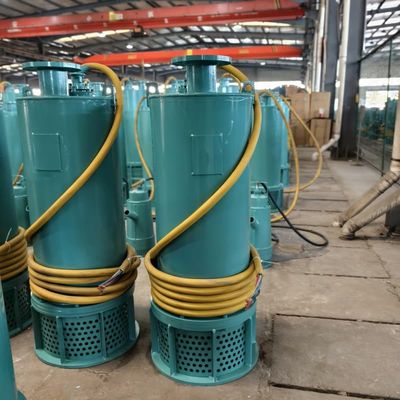

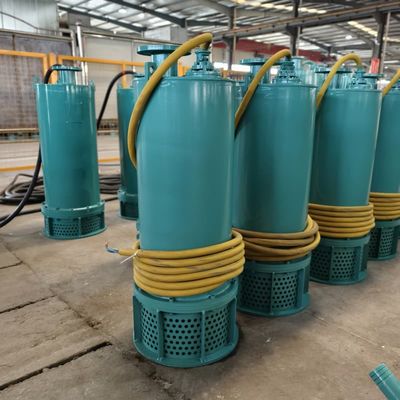

500m High Head Dewatering Pumps 280kW 200hp 80m³/H Sewage Submersible Water Pump

Brand Name: ATPUMP
Model Number: BQS80-500/4-280/N
MOQ: 1
Price: USD 219-71999 / set
Packaging Details: Wooden box
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE、ISO 9001、ISO 14001、ISO45001
Rated Flow:
80 M³/h
Rated Head:
500 M
Rated Power:
280 Kw
Rated Voltage:
380/660 Or 660/1140 V
Synchronous Speed:
3000 R/min
Maximum Diameter Of Passed Particles:
10 Mm
Outlet Diameter:
100 Mm
Color:
RAL 6029
Material:
QT600-3, SS304, SS316, SS316L, Duplex Stainless Steel,high Chromium Alloy
Medium Temperature:
≤40℃
PH:
4-10
Medium Density:
≤1100 Kg/m³
Submergence Depth:
≤20m
Cable Length（Standard）:
15m（Customizable）
Cable Standards:
MT818.5-2009 Flame-retardant Cable
Motor Installation Form:
Built-in Sturcture
Customizable:
Yes
Explosion-Proof Rating:
ExdIIBT4/CT4
Insulation Rating:
F/H
Frequency:
50Hz / 60Hz
Pump Type:
Submersible Electric Pump
Power Range:
1.5-315kW
Drive:
Electric Pump
Supply Ability:
100000 sets per year
Highlight:

500m high head dewatering pumps

,

high head dewatering pumps 280kw

,

500m sewage submersible water pump

Product Description

280kW 200hp 80m³/h 500m Large-Flow Explosion-Proof Submersible Pump For Mining and Oil Extraction Powerful and Reliable500m High Head Dewatering Pumps 280kW 200hp 80m³/H Sewage Submersible Water Pump 0



The BQS series of mining explosion-proof submersible slurry pumps are highly efficient drainage solutions specifically designed for mines and heavy industries. This series boasts extensive applicability, BQS80-500/4-280/N operates at a flow rate of 80 cubic meters per hour and a head of 500 meters. The BQS series incorporates a unique hydraulic model design that ensures high efficiency and low energy consumption. Additionally, these pumps feature full head non-overload capabilities, allowing them to operate stably under various conditions. Their casings are manufactured using advanced corrosion-resistant materials, effectively resisting corrosive effects in harsh environments.



This combination of features makes the BQS series exceptionally well-suited for demanding applications where reliability and performance are critical. With their robust construction and specialized design, these pumps offer dependable service even in the most challenging operational settings, providing peace of mind to users who require durable and efficient equipment for tough industrial or mining scenarios.

500m High Head Dewatering Pumps 280kW 200hp 80m³/H Sewage Submersible Water Pump 1

500m High Head Dewatering Pumps 280kW 200hp 80m³/H Sewage Submersible Water Pump 2

No. Model



Rated flow

(m3/h)



Rated head

(m)



Rated power

(kW)



Rated voltage

(V)



Synchronous

speed

(r/min)



Efficiency

(%)

Outlet
diameter
(mm)



1

BQS80-500/4-280/N



80



500



280



380/660 or 660/1140



3000



44.69



100













500m High Head Dewatering Pumps 280kW 200hp 80m³/H Sewage Submersible Water Pump 3

  • Voltage: 380/660V,660/1140V,400V,440V,460V, customizable options are available.
  • Medium: Temperature not exceeding 40°C, PH 4-10, medium density ≤ 1100 kg/m³.(Customizable for special requirements).
  • Submersion depth: ≤20m.
  • Materials suitable for highly corrosive fluids can be customized.
  • The diameter of solid particles in the medium should comply with the regulations of MT/T671-2005. Please specify any special requirements when ordering.
  • MT818.5-2009 flame-retardant cable for coal mines.

500m High Head Dewatering Pumps 280kW 200hp 80m³/H Sewage Submersible Water Pump 4

  • Applicable to places with explosion hazards such as methane (gas), coal dust, etc.
  • It can transport mixed sewage containing insoluble substances such as silt, coal slime, coal slag, and fiber.
  • Applicable to buildings, hospitals, residential areas, municipal engineering, road construction, factory sewage discharge, etc., and discharges wastewater, rainwater and sewage containing solid particles and long fibers.
  • The material of the product can be changed to cope with the situation of conveying corrosive liquids.

500m High Head Dewatering Pumps 280kW 200hp 80m³/H Sewage Submersible Water Pump 5

500m High Head Dewatering Pumps 280kW 200hp 80m³/H Sewage Submersible Water Pump 6

500m High Head Dewatering Pumps 280kW 200hp 80m³/H Sewage Submersible Water Pump 7

DOUBLE-END MECHANICAL SEAL



Precision machining, high efficiency；

Excellent sealing performance, long service life.



ExdI/ExdbII EXPLOSION-PROOF MOTOR



Professional explosion-proof motors；
Boast stable performance and powerful driving force.



HIGH-PRECISION ROTOR



High-precision finish-machined rotor;

Operates smoothly with low shaft end runout.



HIGH QUALITY BEARING



High-load bearings;

High precision of components, reliable operation.



SUPPORT CUSTOMIZATION



Customizable stainless steel material;

Corrosion and rust resistant pump will be more durable.



PRECISION MEASUREMENT IN THREE COORDINATES



High precision, improve measurement efficiency;

Reduce human error.





500m High Head Dewatering Pumps 280kW 200hp 80m³/H Sewage Submersible Water Pump 8

500m High Head Dewatering Pumps 280kW 200hp 80m³/H Sewage Submersible Water Pump 9

500m High Head Dewatering Pumps 280kW 200hp 80m³/H Sewage Submersible Water Pump 10

FAQ


Q1: What if the model I need is not in your catalog?
A: We can accept customization, including but not limited to flow rate, head, material, function, etc. You only need to tell me the relevant information, and we have a professional technical team to provide you with plans and drawings.



Q2: What type of pump is the BQS series?
A: The BQS series is a mine-specific explosion-proof submersible pump designed to operate safely in environments with flammable gases or explosive dust.



Q3: Is the BQS series energy-efficient?
A: Yes, the BQS series is designed for high efficiency and low energy consumption. Advanced hydraulic models and mechanical structures significantly improve energy utilization, reducing operating costs.



Q4: Can the BQS series handle liquids containing solid particles?
A: Yes, the BQS series uses specially designed impellers and wear-resistant materials to effectively handle wastewater containing solid particles, ensuring long-term stable operation.



Q5: What guarantees do I have when buying your products?

A: Our after-sales service implements the "2-4-24 standard". 2-hour response, telephone remote guidance within 4 hours, and solutions within 24 hours. If there is a need, we can provide door-to-door after-sales service.



Q6: I want to be your dealer, what are the conditions?

A: No problem at all, dear, it is recommended that you purchase a sample first to try it out. If you have any special needs and modification suggestions, our technical team is at your service at any time. Looking forward to our further cooperation!
