| Brand Name: | ATPUMP |
| Model Number: | BQS150-350/5-280/N |
| MOQ: | 1 |
| Price: | USD 219-71999 / set |
| Packaging Details: | Wooden box |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

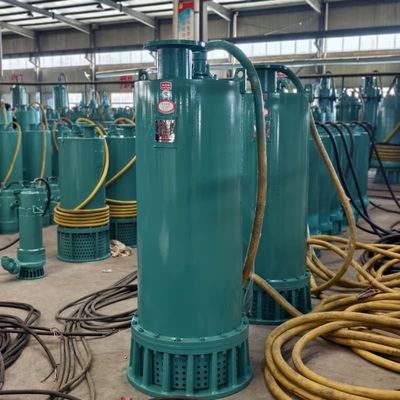

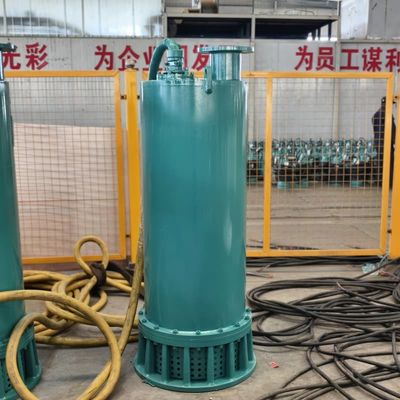

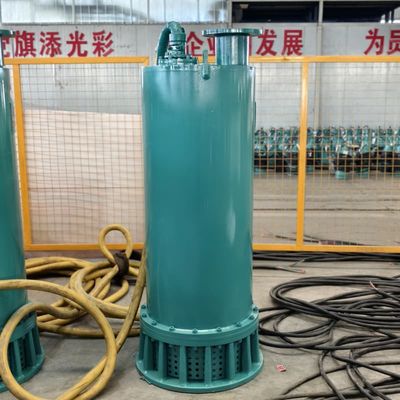

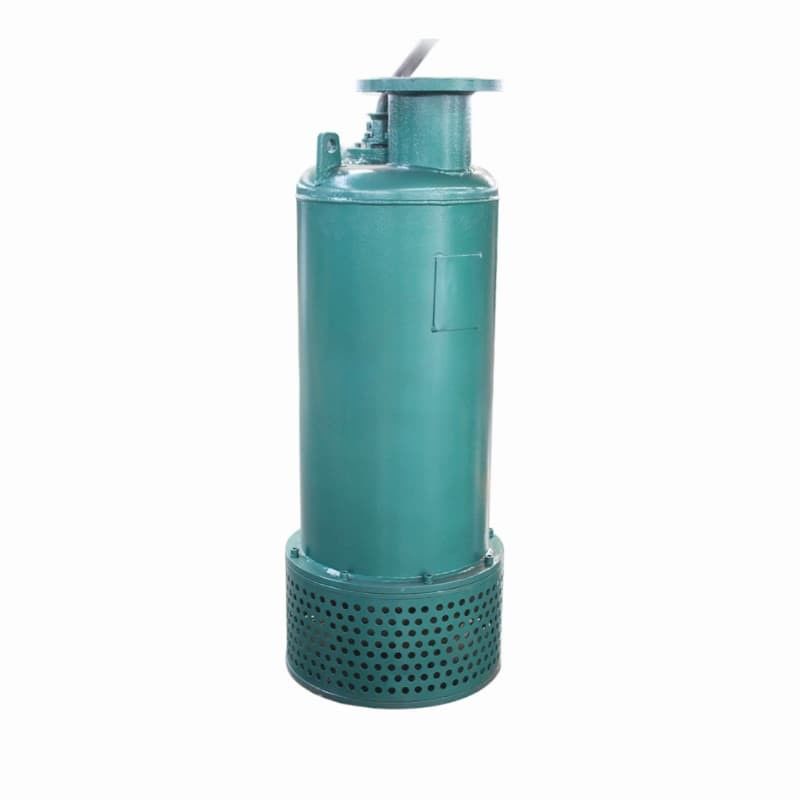

280kW 200hp 150m³/h 350m Large-Flow Explosion-Proof Submersible Pump For Mining and Oil Extraction Powerful and Reliable
The BQS series pumps are high-performance submersible pumps designed for a variety of complex conditions, suitable for different flow rates and head requirements. This product line includes multiple models with power ranging from 1.5kW to 315kW, capable of meeting the application needs in various scenarios. These pumps feature compact structures, easy operation, and convenient maintenance, along with excellent wear resistance and corrosion resistance. They are particularly suited for mine dewatering, industrial sewage discharge, and situations requiring mobile installation. With reliable performance and adaptability, the BQS pumps have become the preferred choice for many users.
This range highlights flexibility and robustness, making it ideal for environments where durability and efficiency are critical. The BQS series is engineered to ensure optimal performance under demanding conditions, providing peace of mind to operators who require dependable equipment for challenging applications.
| No. | Model |
Rated flow (m3/h) |
Rated head (m) |
Rated power (kW) |
Rated voltage (V) |
Synchronous speed (r/min) |
Efficiency (%) |
Outlet
diameter
(mm)
|
|---|---|---|---|---|---|---|---|---|
|
1 |
BQS150-350/5-280/N
|
150 |
350 |
280 |
380/660 or 660/1140 |
1500 |
48.13 |
150 |
|
DOUBLE-END MECHANICAL SEAL |
Precision machining, high efficiency； Excellent sealing performance, long service life.
|
|---|---|
|
ExdI/ExdbII EXPLOSION-PROOF MOTOR |
Professional explosion-proof motors；
|
|
HIGH-PRECISION ROTOR |
High-precision finish-machined rotor; Operates smoothly with low shaft end runout.
|
|
HIGH QUALITY BEARING |
High-load bearings; High precision of components, reliable operation.
|
|
SUPPORT CUSTOMIZATION |
Customizable stainless steel material; Corrosion and rust resistant pump will be more durable.
|
|
PRECISION MEASUREMENT IN THREE COORDINATES |
High precision, improve measurement efficiency; Reduce human error.
|
Q1: What if the model I need is not in your catalog?
A: We can accept customization, including but not limited to flow rate, head, material, function, etc. You only need to tell me the relevant information, and we have a professional technical team to provide you with plans and drawings.
Q2: What type of pump is the BQS series?
A: The BQS series is a mine-specific explosion-proof submersible pump designed to operate safely in environments with flammable gases or explosive dust.
Q3: Is the BQS series energy-efficient?
A: Yes, the BQS series is designed for high efficiency and low energy consumption. Advanced hydraulic models and mechanical structures significantly improve energy utilization, reducing operating costs.
Q4: Can the BQS series handle liquids containing solid particles?
A: Yes, the BQS series uses specially designed impellers and wear-resistant materials to effectively handle wastewater containing solid particles, ensuring long-term stable operation.
Q5: What guarantees do I have when buying your products?
A: Our after-sales service implements the "2-4-24 standard". 2-hour response, telephone remote guidance within 4 hours, and solutions within 24 hours. If there is a need, we can provide door-to-door after-sales service.
Q6: I want to be your dealer, what are the conditions?
A: No problem at all, dear, it is recommended that you purchase a sample first to try it out. If you have any special needs and modification suggestions, our technical team is at your service at any time. Looking forward to our further cooperation!
Video
Video
Video
Video
Video
Video
|
