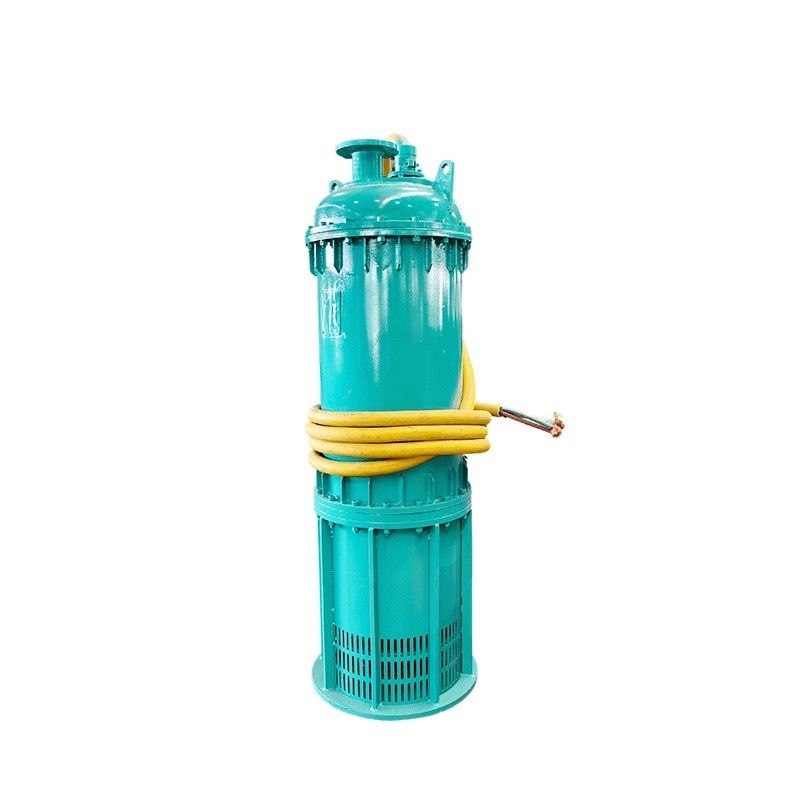

Mining And Oil Extraction Explosion Proof Submersible Pumps 280kW 205hp 800m³/H 80m Large Flow

Brand Name: ATPUMP
Model Number: BQS800-80-280/N
MOQ: 1
Price: USD 219-71999 / set
Packaging Details: Wooden box
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE、ISO 9001、ISO 14001、ISO45001
Rated Flow:
800 M³/h
Rated Head:
80 M
Rated Power:
280 Kw
Rated Voltage:
380/660 Or 660/1140 V
Synchronous Speed:
1500 R/min
Maximum Diameter Of Passed Particles:
25 Mm
Outlet Diameter:
250 Mm
Color:
RAL 6029
Material:
QT600-3, SS304, SS316, SS316L, Duplex Stainless Steel,high Chromium Alloy
Medium Temperature:
≤40℃
PH:
4-10
Medium Density:
≤1100 Kg/m³
Submergence Depth:
≤20m
Cable Length（Standard）:
15m（Customizable）
Cable Standards:
MT818.5-2009 Flame-retardant Cable
Motor Installation Form:
Built-in Sturcture
Customizable:
Yes
Explosion-Proof Rating:
ExdIIBT4/CT4
Insulation Rating:
F/H
Frequency:
50Hz / 60Hz
Pump Type:
Submersible Electric Pump
Power Range:
1.5-315kW
Drive:
Electric Pump
Supply Ability:
100000 sets per year
Highlight:

explosion proof submersible pumps 280kw

,

oil extraction explosion proof submersible pumps

,

mining explosion proof submersible pump manufacturers

Product Description

280kW 205hp 800m³/h 80m Large-Flow Explosion-Proof Submersible Pump For Mining and Oil Extraction Powerful and ReliableMining And Oil Extraction Explosion Proof Submersible Pumps 280kW 205hp 800m³/H 80m Large Flow 0



The BQS series of flameproof submersible slurry pumps is meticulously crafted to address the stringent drainage requirements in mining and industrial environments. With its innovative full-range non-overload design, it ensures efficient and stable operation across various challenging conditions. The series employs advanced dual-end mechanical seal technology, achieving IP68 protection standards, which guarantees motor safety and reliability during underwater operations. Offering a broad flow rate range from 10m³/h to 2000m³/h and a maximum head capacity of up to 800 meters, the BQS series provides multiple power options (from 1.5kW to 315kW) and supports various voltage configurations (such as 380V, 660V, 1140V). Critical components are specially treated for superior wear resistance and corrosion resistance, making them ideal for harsh water conditions laden with solid particles. Furthermore, the BQS series includes intelligent models that leverage IoT technology for remote monitoring and automated control, providing smart solutions for modern mining and industrial drainage systems. This combination of robust engineering and advanced technology makes the BQS series an unparalleled choice for demanding applications.

Mining And Oil Extraction Explosion Proof Submersible Pumps 280kW 205hp 800m³/H 80m Large Flow 1

Mining And Oil Extraction Explosion Proof Submersible Pumps 280kW 205hp 800m³/H 80m Large Flow 2

No. Model



Rated flow

(m3/h)



Rated head

(m)



Rated power

(kW)



Rated voltage

(V)



Synchronous

speed

(r/min)



Efficiency

(%)

Outlet
diameter
(mm)



1

BQS800-80-280/N



800



80



280



380/660 or 660/1140



1500



62.5



250













Mining And Oil Extraction Explosion Proof Submersible Pumps 280kW 205hp 800m³/H 80m Large Flow 3

  • Voltage: 380/660V,660/1140V,400V,440V,460V, customizable options are available.
  • Medium: Temperature not exceeding 40°C, PH 4-10, medium density ≤ 1100 kg/m³.(Customizable for special requirements).
  • Submersion depth: ≤20m.
  • Materials suitable for highly corrosive fluids can be customized.
  • The diameter of solid particles in the medium should comply with the regulations of MT/T671-2005. Please specify any special requirements when ordering.
  • MT818.5-2009 flame-retardant cable for coal mines.

Mining And Oil Extraction Explosion Proof Submersible Pumps 280kW 205hp 800m³/H 80m Large Flow 4

  • Applicable to places with explosion hazards such as methane (gas), coal dust, etc.
  • It can transport mixed sewage containing insoluble substances such as silt, coal slime, coal slag, and fiber.
  • Applicable to buildings, hospitals, residential areas, municipal engineering, road construction, factory sewage discharge, etc., and discharges wastewater, rainwater and sewage containing solid particles and long fibers.
  • The material of the product can be changed to cope with the situation of conveying corrosive liquids.

Mining And Oil Extraction Explosion Proof Submersible Pumps 280kW 205hp 800m³/H 80m Large Flow 5

Mining And Oil Extraction Explosion Proof Submersible Pumps 280kW 205hp 800m³/H 80m Large Flow 6

Mining And Oil Extraction Explosion Proof Submersible Pumps 280kW 205hp 800m³/H 80m Large Flow 7

DOUBLE-END MECHANICAL SEAL



Precision machining, high efficiency；

Excellent sealing performance, long service life.



ExdI/ExdbII EXPLOSION-PROOF MOTOR



Professional explosion-proof motors；
Boast stable performance and powerful driving force.



HIGH-PRECISION ROTOR



High-precision finish-machined rotor;

Operates smoothly with low shaft end runout.



HIGH QUALITY BEARING



High-load bearings;

High precision of components, reliable operation.



SUPPORT CUSTOMIZATION



Customizable stainless steel material;

Corrosion and rust resistant pump will be more durable.



PRECISION MEASUREMENT IN THREE COORDINATES



High precision, improve measurement efficiency;

Reduce human error.





Mining And Oil Extraction Explosion Proof Submersible Pumps 280kW 205hp 800m³/H 80m Large Flow 8

Mining And Oil Extraction Explosion Proof Submersible Pumps 280kW 205hp 800m³/H 80m Large Flow 9

Mining And Oil Extraction Explosion Proof Submersible Pumps 280kW 205hp 800m³/H 80m Large Flow 10

FAQ


Q1: What if the model I need is not in your catalog?
A: We can accept customization, including but not limited to flow rate, head, material, function, etc. You only need to tell me the relevant information, and we have a professional technical team to provide you with plans and drawings.



Q2: What type of pump is the BQS series?
A: The BQS series is a mine-specific explosion-proof submersible pump designed to operate safely in environments with flammable gases or explosive dust.



Q3: Is the BQS series energy-efficient?
A: Yes, the BQS series is designed for high efficiency and low energy consumption. Advanced hydraulic models and mechanical structures significantly improve energy utilization, reducing operating costs.



Q4: Can the BQS series handle liquids containing solid particles?
A: Yes, the BQS series uses specially designed impellers and wear-resistant materials to effectively handle wastewater containing solid particles, ensuring long-term stable operation.



Q5: What guarantees do I have when buying your products?

A: Our after-sales service implements the "2-4-24 standard". 2-hour response, telephone remote guidance within 4 hours, and solutions within 24 hours. If there is a need, we can provide door-to-door after-sales service.



Q6: I want to be your dealer, what are the conditions?

A: No problem at all, dear, it is recommended that you purchase a sample first to try it out. If you have any special needs and modification suggestions, our technical team is at your service at any time. Looking forward to our further cooperation!
