products details

Home > Products >

Explosion Proof Submersible Pumps

180m³/H 350m Head Explosion Proof Submersible Pumps Mine Drainage Explosion Prevention Water Pump

All Category

Explosion Proof Submersible Pumps

Submersible Stainless Steel Pumps

Pump Control Panel

Mr. Cheng

info@anlitaigroup.com

19050862960

Contact Now

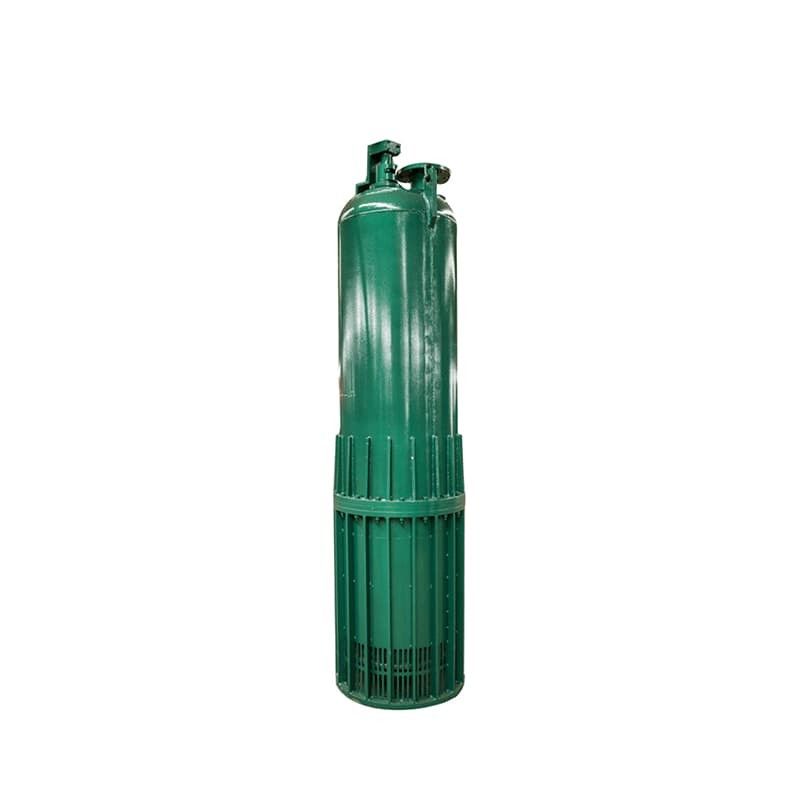

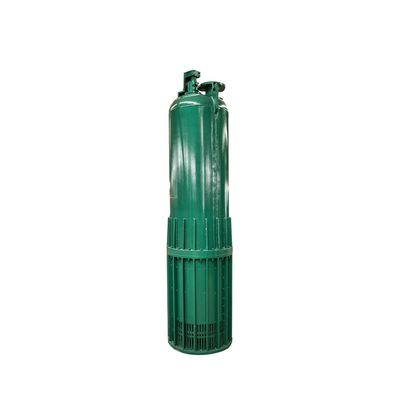

180m³/H 350m Head Explosion Proof Submersible Pumps Mine Drainage Explosion Prevention Water Pump

Brand Name:	ATPUMP
Model Number:	BQS180-350/6-315/N
MOQ:	1
Price:	USD 229-71999 / set
Packaging Details:	Wooden box
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001、ISO 14001、ISO45001

Rated Flow:

180 M³/h

Rated Head:

350 M

Rated Power:

315 Kw

Rated Voltage:

380/660 Or 660/1140 V

Synchronous Speed:

1500 R/min

Efficiency:

50.4 %

Maximum Diameter Of Passed Particles:

10 Mm

Outlet Diameter:

150 Mm

Color:

RAL 6029

Material:

QT600-3, SS304, SS316, SS316L, Duplex Stainless Steel,high Chromium Alloy

Medium Temperature:

Medium Density:

≤1100 Kg/m³

Submergence Depth:

Cable Length（Standard）:

15m (Can Be Customized)

Cable Standards:

MT818.5-2009 Flame-retardant Cable

Motor Installation Form:

Built-in Sturcture

Customizable:

Explosion-Proof Rating:

ExdIIBT4/CT4

Insulation Rating:

Frequency:

50Hz / 60Hz

Pump Type:

Submersible Electric Pump

Power Range:

1.5-315kW

Drive:

Electricity

Supply Ability:

100000 sets per year

Highlight:

explosion proof submersible pumps mine

180m explosion proof submersible pumps

180m explosion proof submersible pump manufacturers

Product Description

315kw 230hp 180m³/h 350m head explosion-proof submersible pump Mine drainage Explosion prevention water pump 180m³/H 350m Head Explosion Proof Submersible Pumps Mine Drainage Explosion Prevention Water Pump 0

BQS series products are mainly suitable for places that require explosion-proof, drainage and sewage discharge, such as mining area drainage, underground drainage containing explosive gases such as gas, and drainage in petrochemical industry bases. The BQS180-350/6-315/N model means that the 315kw water pump can drain 180m³ per hour and reach a head of 350m, which is suitable for situations where high head is required.

The BQS series includes built-in structure, external structure, semi-built-in structure, land and underwater dual-purpose pumps, smart pumps, etc. Sales staff and technicians will recommend suitable structures and types according to the demand environment, and formulate corresponding technical solutions to meet various diversified needs.

180m³/H 350m Head Explosion Proof Submersible Pumps Mine Drainage Explosion Prevention Water Pump 1

No.

Model

Rated flow

(m³/h)

Rated head

(m)

Rated power

(kW)

Rated voltage

(V)

Synchronous

speed

(r/min)

Efficiency

(%)

Outlet

diameter

(mm)

BQS180-350/4-315/N

180

350

315

380/660 or 660/1140

1500

50.4

150

180m³/H 350m Head Explosion Proof Submersible Pumps Mine Drainage Explosion Prevention Water Pump 2

Voltage: 380/660V,660/1140V,400V,440V,460V, customizable options are available.
Medium: Temperature not exceeding 40°C, PH 4-10, medium density ≤ 1100 kg/m³.(Customizable for special requirements).
Submersion depth: ≤20m.
Materials suitable for highly corrosive fluids can be customized.
The diameter of solid particles in the medium should comply with the regulations of MT/T671-2005. Please specify any special requirements when ordering.
MT818.5-2009 flame-retardant cable for coal mines.

180m³/H 350m Head Explosion Proof Submersible Pumps Mine Drainage Explosion Prevention Water Pump 3

Applicable to places with explosion hazards such as methane (gas), coal dust, etc.
It can transport mixed sewage containing insoluble substances such as silt, coal slime, coal slag, and fiber.
Applicable to buildings, hospitals, residential areas, municipal engineering, road construction, factory sewage discharge, etc., and discharges wastewater, rainwater and sewage containing solid particles and long fibers.
The material of the product can be changed to cope with the situation of conveying corrosive liquids.

180m³/H 350m Head Explosion Proof Submersible Pumps Mine Drainage Explosion Prevention Water Pump 4

180m³/H 350m Head Explosion Proof Submersible Pumps Mine Drainage Explosion Prevention Water Pump 5

180m³/H 350m Head Explosion Proof Submersible Pumps Mine Drainage Explosion Prevention Water Pump 6

DOUBLE-END MECHANICAL SEAL	Precision machining, high efficiency； Excellent sealing performance, long service life.
ExdI/ExdbII EXPLOSION-PROOF MOTOR	Professional explosion-proof motors； Boast stable performance and powerful driving force.
HIGH-PRECISION ROTOR	High-precision finish-machined rotor; Operates smoothly with low shaft end runout.
HIGH QUALITY BEARING	High-load bearings; High precision of components, reliable operation.
SUPPORT CUSTOMIZATION	Customizable stainless steel material; Corrosion and rust resistant pump will be more durable.
PRECISION MEASUREMENT IN THREE COORDINATES	High precision, improve measurement efficiency; Reduce human error.

180m³/H 350m Head Explosion Proof Submersible Pumps Mine Drainage Explosion Prevention Water Pump 7

180m³/H 350m Head Explosion Proof Submersible Pumps Mine Drainage Explosion Prevention Water Pump 8

FAQ

Q1: Is the installation and commissioning of BQS series pumps difficult?
A: The BQS series pumps are designed for simple installation and commissioning. Detailed manuals and professional technical support help users quickly complete setup and debugging, minimizing downtime.

Q2: What type of pump is the BQS series?
A: The BQS series is a mine-specific explosion-proof submersible pump designed to operate safely in environments with flammable gases or explosive dust.

Q3: Is the BQS series energy-efficient?
A: Yes, the BQS series is designed for high efficiency and low energy consumption. Advanced hydraulic models and mechanical structures significantly improve energy utilization, reducing operating costs.

Q4: Can the BQS series handle liquids containing solid particles?
A: Yes, the BQS series uses specially designed impellers and wear-resistant materials to effectively handle wastewater containing solid particles, ensuring long-term stable operation.

Q5: What guarantees do I have when buying your products?

A: Our after-sales service implements the "2-4-24 standard". 2-hour response, telephone remote guidance within 4 hours, and solutions within 24 hours. If there is a need, we can provide door-to-door after-sales service.

Q6: What is the noise level of BQS series pumps during operation?

A: The BQS series pumps feature noise-reduction designs, operating at low noise levels to minimize impact on the working environment. This improves operator comfort and reduces health risks associated with prolonged exposure to high noise levels.
