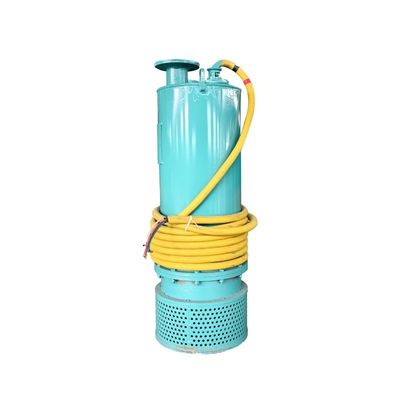

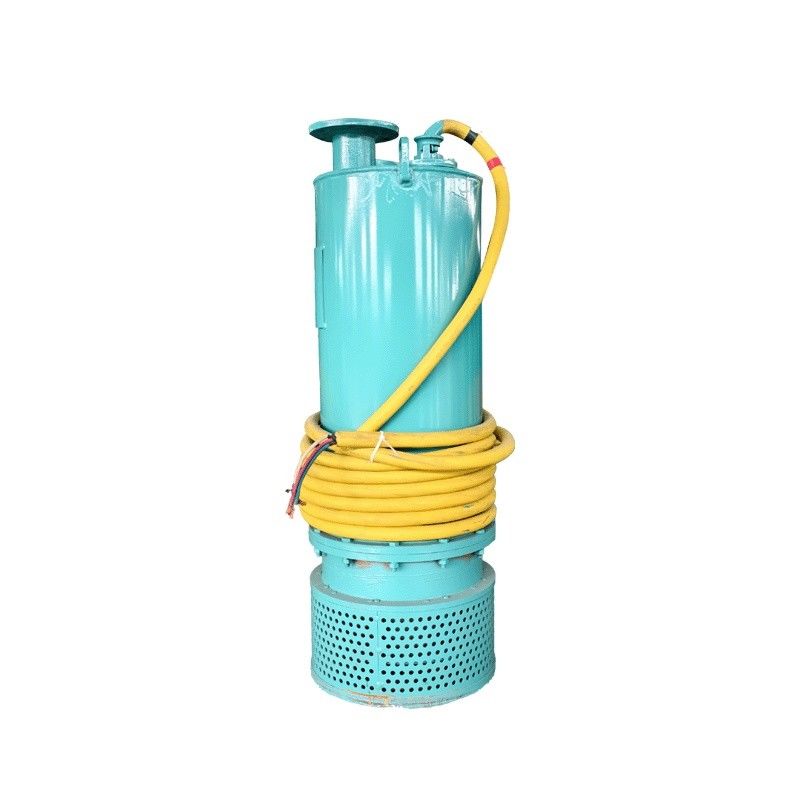

350m³/H ExdIIBT4/CT4 Explosion Proof Submersible Sump Pump 200m Head 315kw

Brand Name: ATPUMP
Model Number: BQS350-200/4-315/N
MOQ: 1
Price: USD 229-71999 / set
Packaging Details: Wooden box
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE、ISO 9001、ISO 14001、ISO45001
Rated Flow:
350 M³/h
Rated Head:
200 M
Rated Power:
315 Kw
Rated Voltage:
380/660 Or 660/1140 V
Synchronous Speed:
1500 R/min
Efficiency:
56.1
Maximum Diameter Of Passed Particles:
10 Mm
Outlet Diameter:
150 Mm
Color:
RAL 6029
Material:
QT600-3, SS304, SS316, SS316L, Duplex Stainless Steel,high Chromium Alloy
Medium Temperature:
≤40℃
PH:
4-10
Medium Density:
≤1100 Kg/m³
Submergence Depth:
≤20m
Cable Length（Standard）:
15m (Can Be Customized)
Cable Standards:
MT818.5-2009 Flame-retardant Cable
Motor Installation Form:
Built-in Sturcture
Customizable:
Yes
Explosion-Proof Rating:
ExdIIBT4/CT4
Insulation Rating:
F/H
Frequency:
50Hz / 60Hz
Pump Type:
Submersible Electric Pump
Power Range:
1.5-315kW
Drive:
Electricity
Supply Ability:
100000 sets per year
Highlight:

exdiibt4/ct4 explosion proof submersible sump pump

,

exdiibt4/ct4 explosion proof submersible pump

,

315kw explosion proof submersible pump

Product Description

315kw 350m³/h 200m head explosion-proof submersible pump Mine drainage Explosion prevention water pump350m³/H ExdIIBT4/CT4 Explosion Proof Submersible Sump Pump 200m Head 315kw 0



BQS series are explosion-proof submersible electric pumps designed mainly for safe mine drainage. The BQS350-200/4-315/N model has a flow rate of 350m³ per hour and a head of 200m. It has a 315kw built-in motor and a cooling interlayer on the motor housing. Even if the liquid is cut off, the motor will not be damaged due to overheating. It can cope with the complex environment of mine drainage, deal with safety hazards, and ensure the safety of construction workers.

350m³/H ExdIIBT4/CT4 Explosion Proof Submersible Sump Pump 200m Head 315kw 1

350m³/H ExdIIBT4/CT4 Explosion Proof Submersible Sump Pump 200m Head 315kw 2

No. Model



Rated flow

(m3/h)



Rated head

(m)



Rated power

(kW)



Rated voltage

(V)



Synchronous

speed

(r/min)



Efficiency

(%)

Outlet
diameter
(mm)



1

BQS350-200/4-315/N



350



200



315



380/660 or 660/1140



1500



56.1



150













350m³/H ExdIIBT4/CT4 Explosion Proof Submersible Sump Pump 200m Head 315kw 3

  • Voltage: 380/660V,660/1140V,400V,440V,460V, customizable options are available.
  • Medium: Temperature not exceeding 40°C, PH 4-10, medium density ≤ 1100 kg/m³.(Customizable for special requirements).
  • Submersion depth: ≤20m.
  • Materials suitable for highly corrosive fluids can be customized.
  • The diameter of solid particles in the medium should comply with the regulations of MT/T671-2005. Please specify any special requirements when ordering.
  • MT818.5-2009 flame-retardant cable for coal mines.

350m³/H ExdIIBT4/CT4 Explosion Proof Submersible Sump Pump 200m Head 315kw 4

  • Applicable to places with explosion hazards such as methane (gas), coal dust, etc.
  • It can transport mixed sewage containing insoluble substances such as silt, coal slime, coal slag, and fiber.
  • Applicable to buildings, hospitals, residential areas, municipal engineering, road construction, factory sewage discharge, etc., and discharges wastewater, rainwater and sewage containing solid particles and long fibers.
  • The material of the product can be changed to cope with the situation of conveying corrosive liquids.

350m³/H ExdIIBT4/CT4 Explosion Proof Submersible Sump Pump 200m Head 315kw 5

350m³/H ExdIIBT4/CT4 Explosion Proof Submersible Sump Pump 200m Head 315kw 6

350m³/H ExdIIBT4/CT4 Explosion Proof Submersible Sump Pump 200m Head 315kw 7

DOUBLE-END MECHANICAL SEAL



Precision machining, high efficiency；

Excellent sealing performance, long service life.



ExdI/ExdbII EXPLOSION-PROOF MOTOR



Professional explosion-proof motors；
Boast stable performance and powerful driving force.



HIGH-PRECISION ROTOR



High-precision finish-machined rotor;

Operates smoothly with low shaft end runout.



HIGH QUALITY BEARING



High-load bearings;

High precision of components, reliable operation.



SUPPORT CUSTOMIZATION



Customizable stainless steel material;

Corrosion and rust resistant pump will be more durable.



PRECISION MEASUREMENT IN THREE COORDINATES



High precision, improve measurement efficiency;

Reduce human error.





350m³/H ExdIIBT4/CT4 Explosion Proof Submersible Sump Pump 200m Head 315kw 8

350m³/H ExdIIBT4/CT4 Explosion Proof Submersible Sump Pump 200m Head 315kw 9

350m³/H ExdIIBT4/CT4 Explosion Proof Submersible Sump Pump 200m Head 315kw 10

FAQ


Q1: Is the installation and commissioning of BQS series pumps difficult?
A: The BQS series pumps are designed for simple installation and commissioning. Detailed manuals and professional technical support help users quickly complete setup and debugging, minimizing downtime.



Q2: What type of pump is the BQS series?
A: The BQS series is a mine-specific explosion-proof submersible pump designed to operate safely in environments with flammable gases or explosive dust.



Q3: Is the BQS series energy-efficient?
A: Yes, the BQS series is designed for high efficiency and low energy consumption. Advanced hydraulic models and mechanical structures significantly improve energy utilization, reducing operating costs.



Q4: Can the BQS series handle liquids containing solid particles?
A: Yes, the BQS series uses specially designed impellers and wear-resistant materials to effectively handle wastewater containing solid particles, ensuring long-term stable operation.



Q5: What guarantees do I have when buying your products?

A: Our after-sales service implements the "2-4-24 standard". 2-hour response, telephone remote guidance within 4 hours, and solutions within 24 hours. If there is a need, we can provide door-to-door after-sales service.



Q6: What is the noise level of BQS series pumps during operation?

A: The BQS series pumps feature noise-reduction designs, operating at low noise levels to minimize impact on the working environment. This improves operator comfort and reduces health risks associated with prolonged exposure to high noise levels.
