315kw 6000m³/h 14m Industrial Submersible Sewage Pump Sewer Drainage Underground pipe gallery water pump Customizable submersible electric pumps Municipal drainage Construction engineering drainage

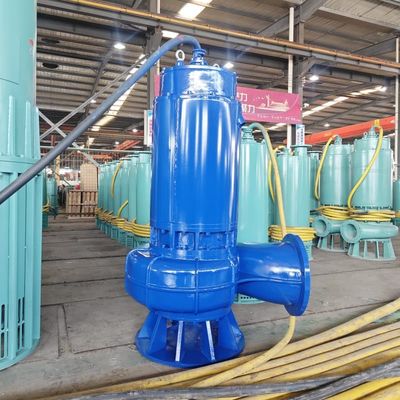

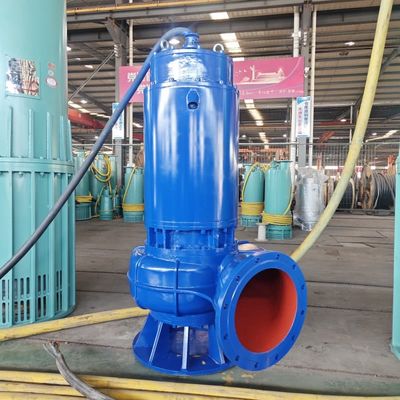

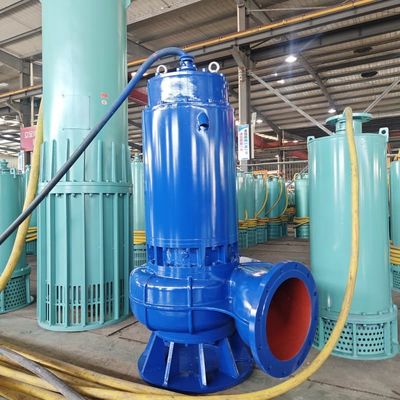

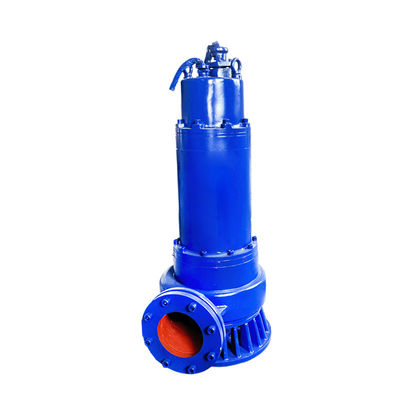

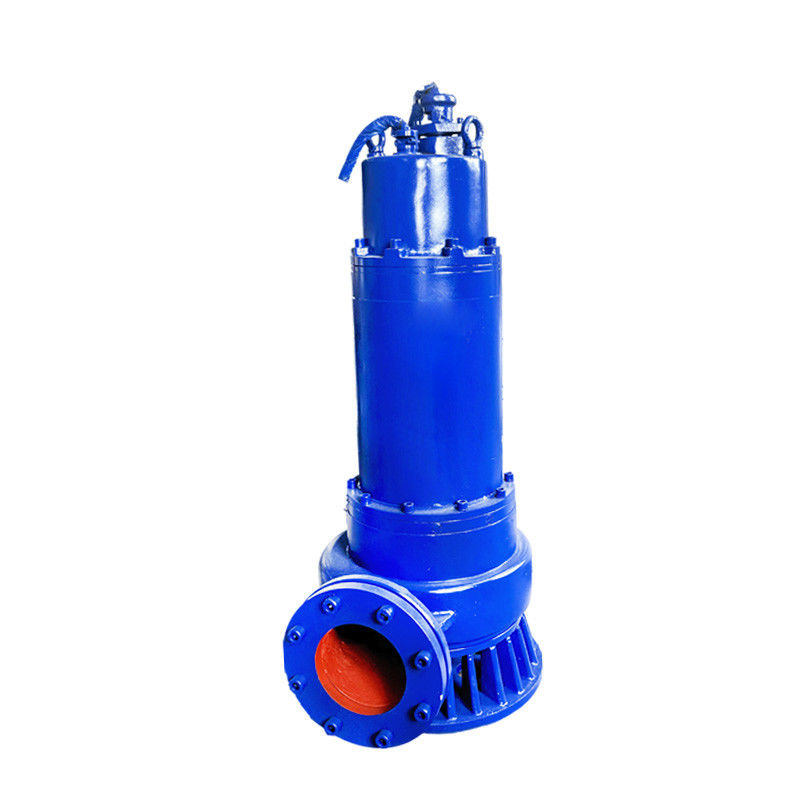

The WQ6000-14-315 model refers to an electric submersible pump with a flow rate of 6000m³ per hour, a head of 14m, and a power of 315kw. It can meet various situations that require rapid and large-scale drainage and sewage disposal, such as construction site foundation pits, underground projects, etc., which are prone to water accumulation and require rapid drainage to ensure construction progress and safety; urban drainage systems, underground garages, tunnels and other areas are prone to water accumulation during heavy rains or floods and require emergency drainage, etc.It can also be used in farmlands, fish ponds, reservoirs, etc. that require large amounts of water supply or drainage, especially in rainy or dry seasons. This model can meet all of these needs.

• Voltage: 380/660V,660/1140V,400V,440V,460V, customizable options are available.
• Medium: Temperature not exceeding 60°C, PH 4-10, medium density ≤ 1200 kg/m³.(Customizable for special requirements).
• Submersion depth: ≤20m.
• When used for pumping highly corrosive fluids or media with abrasive solid particles, the pump requires special customization.
• The diameter of solid particles in the medium should be less than 80% of the minimum flow passage dimension.
• The length of fibers in the medium should not exceed the diameter of the pump's discharge port.

• Applicable to chemical, petroleum, pharmaceutical, mining, papermaking, cement, steelmaking, power generation, coal processing industries, etc.
• Urban sewage treatment plant drainage systems, municipal engineering, etc.
• Suitable for the construction industry and others requiring the conveyance of sewage containing particulates, as well as for pumping clear water or liquids with corrosive properties.
• Ponds, fish ponds, or scenes where corrosive liquids such as seawater and chemical wastewater need to be pumped.

• The flow parts adopt QBQ surface treatment process, which has excellent wear and corrosion resistance.
• The thickened impeller, pump body, and pump cover effectively extend the service life of the components.
• Suitable for long-term use in environments with corrosive liquids and abrasive particles (such as sediments and gravel).
• The bottom inlet and bottom outlet design ensures strong clogging resistance and high flow capacity, making it suitable for a wider range of applications.
• Simple strcuture, lightweight, easy to install and maintain.

FAQ


Q1: What if the model I need is not in your catalog?
A: We can accept customization, including but not limited to flow rate, head, material, function, etc. You only need to tell me the relevant information, and we have a professional technical team to provide you with plans and drawings.

Q2: What is the expected lifespan of the WQ series pumps?
A: The WQ series pumps are manufactured using high-quality materials and advanced manufacturing processes, combined with reliable sealing and cooling systems, ensuring a long service life. Regular maintenance can further extend the pump's lifespan.

Q3: What is the energy efficiency of the WQ series pumps?
A: The WQ series pumps are designed for high efficiency and low energy consumption. Advanced hydraulic models and mechanical structures significantly improve energy utilization, reducing operating costs.

Q4: How do these pumps prevent fiber clogging?
A: The WQ series pumps feature an optimized hydraulic model and specially designed impellers that effectively prevent fiber clogging, ensuring efficient operation and reducing maintenance needs.

Q5: What installation options are available for the WQ series pumps?
A: The WQ series pumps offer multiple installation methods, including vertical installation and horizontal installation. These versatile options simplify pump station design, reduce investment costs, and enhance installation flexibility.
Q6: How is automated control achieved in these pumps?
A: The WQ series pumps come equipped with a dedicated control cabinet that supports automatic start/stop functions. This intelligent control system enables unattended operation and ensures safe and reliable motor performance.
