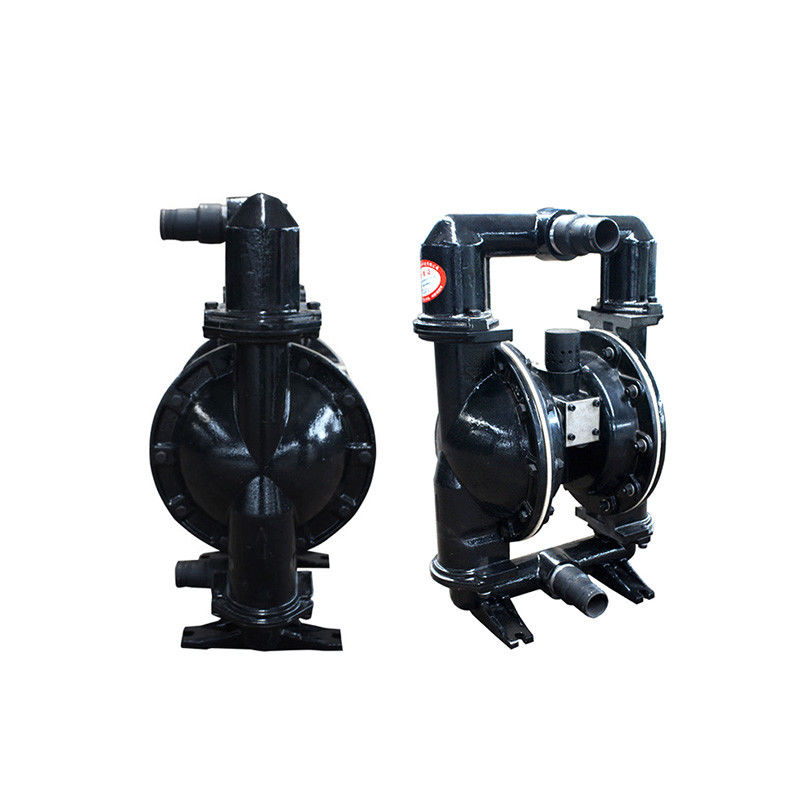

BQG Series 125L/min 0.4Mpa Pneumatic Diaphragm Pump Air-operated diaphragm pumps 2 inch inlet/Outlet diameter

The BQG series of mine-specific pneumatic diaphragm pumps are developed by our company for efficient industrial applications. Powered by compressed air, these pumps use pressure differences in the air chamber to achieve positive displacement self-priming. The unique dead-point-free and anti-stall design ensures stable operation, while the modular structure simplifies maintenance. Key components are cast from aluminum alloy, with diaphragms and valve balls made from high-quality materials, offering lightweight, low-noise, wear-resistant, and corrosion-resistant properties. Suitable for mine dewatering, tunnel engineering, oil, and chemical industries.

• Capable of transferring any flowable materials, with the medium concentration (volume ratio) not exceeding 15%.
• The maximum diameter of solid particles contained in the medium must not exceed 9 mm.
• Operating temperature range: 5 to 50°C.
• Medium PH 6-8.
• The temperature of the conveyed medium shall not exceed 50°C.
• Pressure range 0.4MPa -0.8MPa.

• Compressed air-driven, ensuring intrinsic safety
• Specially designed structure enables the transfer of various fluids and mixtures containing solid particles, ensuring clog-free operation.
• Capable of running dry.
• Compact size, lightweight, and portability.
• Simple structure, easy operation, and convenient maintenance.

FAQ


Q1: What if the model I need is not in your catalog?
A: We can accept customization, including but not limited to flow rate, head, material, function, etc. You only need to tell me the relevant information, and we have a professional technical team to provide you with plans and drawings.

Q2: How do I place an order?
A: Send us an inguiry - Tell us your needs and usage scenarios - Customize drawings and samples - Discuss details - Modify and confirm - Sign a contract/Deposit - Mass production - Final payment and delivery - Further cooperation.

Q3: How to transport?
A: We have a variety of transportation options. If there is a port in your area, sea transportation is an economical choice. If you are in a hurry to use it, we can ship it by air for you. If you don’t have your own freight forwarder, we can contract the relevant work from departure to arrival at the destination port.

Q4: Are you a trading company or a factory?
A: Yes, friends. To be precise, we are a manufacturer that integrates factory and sales. From casting, precision machining to sales and after-sales service, we have a very professional team to ensure positive output in every link and are committed to providing high-quality products and protecting the rights and interests of customers.

Q5: What guarantees do I have when buying your products?

A: Our after-sales service implements the "2-4-24 standard". 2-hour response, telephone remote guidance within 4 hours, and solutions within 24 hours. If there is a need, we can provide door-to-door after-sales service.

Q6: I want to be your dealer, what are the conditions?

A: No problem at all, dear, it is recommended that you purchase a sample first to try it out. If you have any special needs and modification suggestions, our technical team is at your service at any time. Looking forward to our further cooperation!
