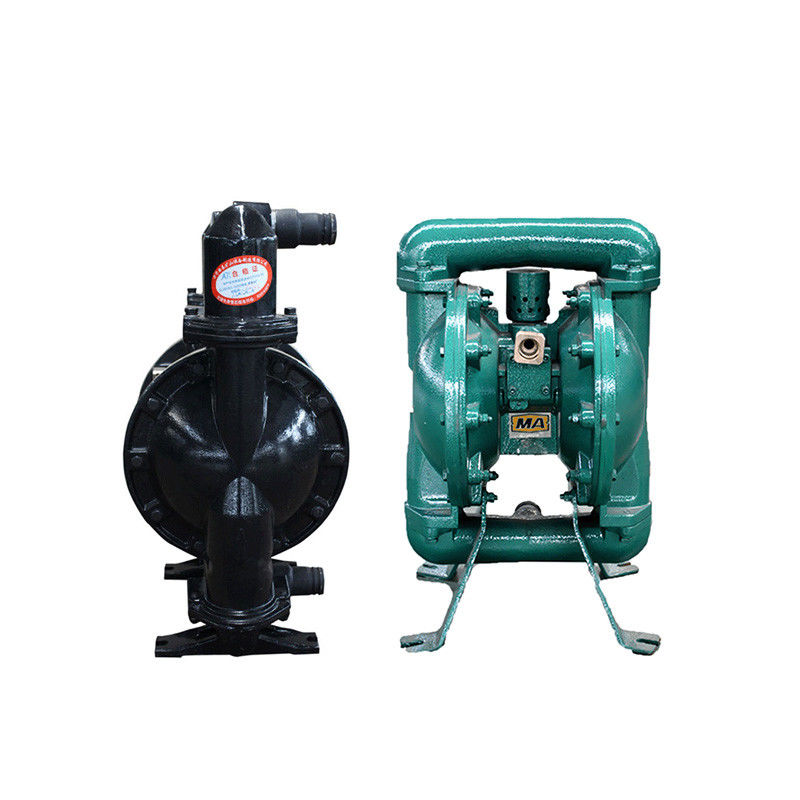

BQG Series 320L/min Pneumatic Diaphragm Pump Air-operated diaphragm pumps 3 inch inlet/Outlet diameter

The BQG series of mine-specific pneumatic diaphragm pumps are advanced products developed by our company for mining and industrial applications. Utilizing compressed air as the power source, these pumps achieve positive displacement self-priming through pressure differentials in the air chamber, ensuring stable operation and leak-free transfer. Constructed from lightweight aluminum alloy and high-performance materials, the BQG series offers excellent wear resistance, corrosion protection, fireproof, and explosion-proof properties. Suitable for mine dewatering, tunnel engineering, oil, and chemical industries, this pump excels in harsh environments and is an ideal choice for modern mining operations.

• Capable of transferring any flowable materials, with the medium concentration (volume ratio) not exceeding 15%.
• The maximum diameter of solid particles contained in the medium must not exceed 9 mm.
• Operating temperature range: 5 to 50°C.
• Medium PH 6-8.
• The temperature of the conveyed medium shall not exceed 50°C.
• Pressure range 0.4MPa -0.8MPa.

• Compressed air-driven, ensuring intrinsic safety
• Specially designed structure enables the transfer of various fluids and mixtures containing solid particles, ensuring clog-free operation.
• Capable of running dry.
• Compact size, lightweight, and portability.
• Simple structure, easy operation, and convenient maintenance.

FAQ


Q1: What if the model I need is not in your catalog?
A: We can accept customization, including but not limited to flow rate, head, material, function, etc. You only need to tell me the relevant information, and we have a professional technical team to provide you with plans and drawings.

Q2: How do I place an order?
A: Send us an inguiry - Tell us your needs and usage scenarios - Customize drawings and samples - Discuss details - Modify and confirm - Sign a contract/Deposit - Mass production - Final payment and delivery - Further cooperation.

Q3: How to transport?
A: We have a variety of transportation options. If there is a port in your area, sea transportation is an economical choice. If you are in a hurry to use it, we can ship it by air for you. If you don’t have your own freight forwarder, we can contract the relevant work from departure to arrival at the destination port.

Q4: What are the core technical features of the BQG series pump?

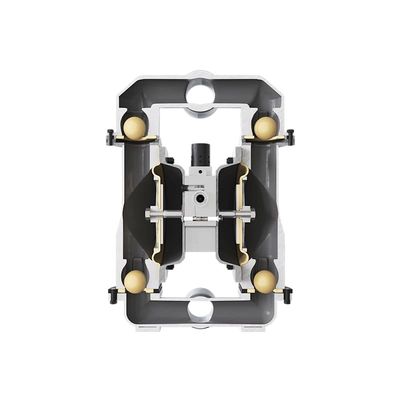

A: The BQG series pump features dead-point-free, anti-stall design, and modular construction, effectively addressing issues with valve movement in traditional diaphragm pumps. Additionally, key components are cast from aluminum alloy, and diaphragms and valve balls are made from high-quality materials, ensuring a lightweight, low-noise, wear-resistant, and corrosion-resistant pump body.

Q5: What guarantees do I have when buying your products?

A: Our after-sales service implements the "2-4-24 standard". 2-hour response, telephone remote guidance within 4 hours, and solutions within 24 hours. If there is a need, we can provide door-to-door after-sales service.

Q6: Is the BQG series pump easy to operate?

A: Yes, the BQG series pump is designed for simplicity and ease of use. Users only need to connect the compressed air source and open the control valve to start the pump. The entire process is automated, greatly simplifying operation and reducing the technical requirements for operators.
