| Brand Name: | ATPUMP |
| Model Number: | BQS700-100-315/N |
| MOQ: | 1 |
| Price: | USD 219-71999 / set |
| Packaging Details: | Wooden box |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

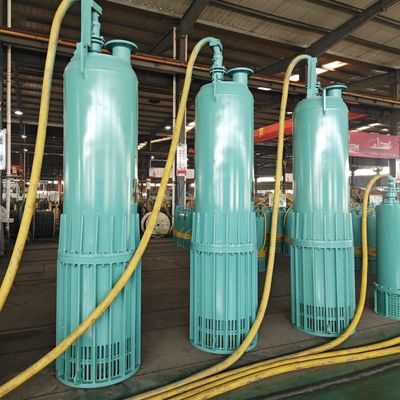

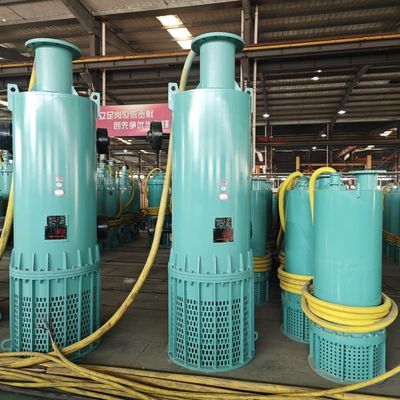

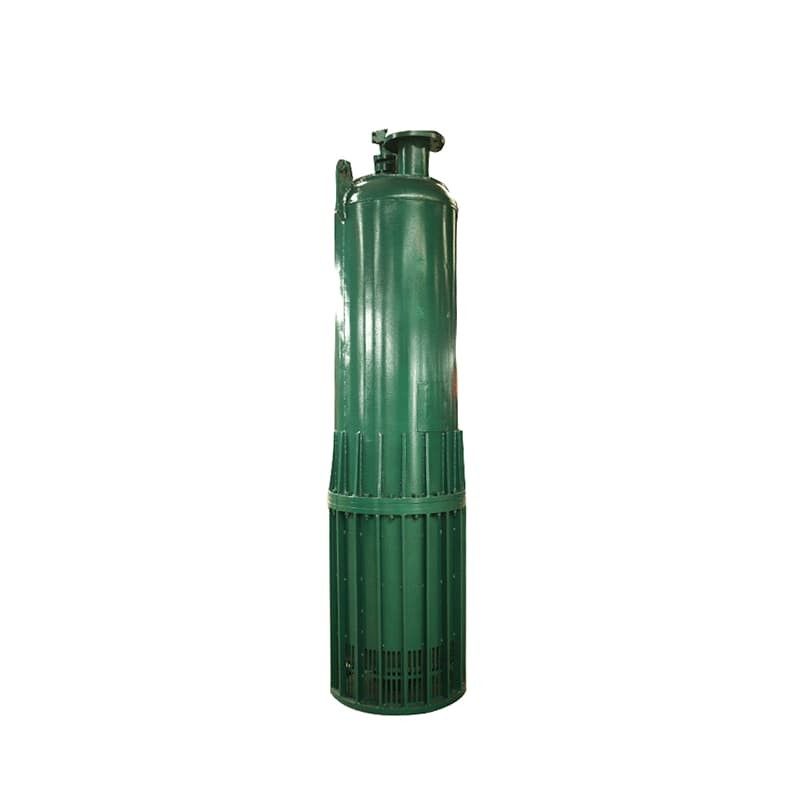

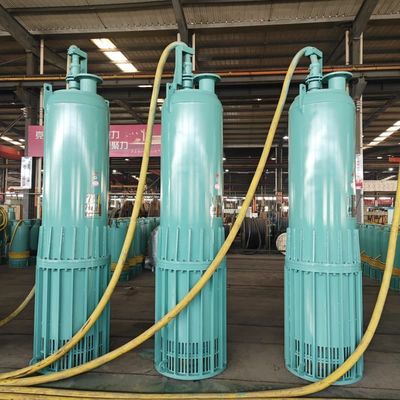

315kW 700m³/h 100m High-Head Large-Flow Explosion-Proof Submersible Pump For Mining and Oil Extraction Powerful and Reliable
The BQS series of explosion-proof submersible pumps are specifically designed for mine dewatering, featuring excellent explosion-proof performance and high efficiency. Suitable for coal mines, metal, and non-metallic mines, these pumps effectively handle wastewater containing solid particles. Utilizing wear-resistant materials and optimized hydraulic models, they ensure long-term stable operation. The intelligent control system supports automated operation, ensuring safety and reliability in hazardous environments, making them ideal for mine dewatering and emergency rescue applications.
| No. | Model |
Rated flow (m3/h) |
Rated head (m) |
Rated power (kW) |
Rated voltage (V) |
Synchronous speed (r/min) |
Efficiency (%) |
Outlet
diameter
(mm)
|
|---|---|---|---|---|---|---|---|---|
|
1 |
BQS700-100-315/N
|
700 |
100 |
315 |
380/660 or 660/1140 |
1500 |
57.8 |
200 |
|
DOUBLE-END MECHANICAL SEAL |
Precision machining, high efficiency； Excellent sealing performance, long service life.
|
|---|---|
|
ExdI/ExdbII EXPLOSION-PROOF MOTOR |
Professional explosion-proof motors；
|
|
HIGH-PRECISION ROTOR |
High-precision finish-machined rotor; Operates smoothly with low shaft end runout.
|
|
HIGH QUALITY BEARING |
High-load bearings; High precision of components, reliable operation.
|
|
SUPPORT CUSTOMIZATION |
Customizable stainless steel material; Corrosion and rust resistant pump will be more durable.
|
|
PRECISION MEASUREMENT IN THREE COORDINATES |
High precision, improve measurement efficiency; Reduce human error.
|
Q1: Are BQS series pumps suitable for handling high-temperature liquids?
A: Yes, the BQS series pumps are designed for high temperature working environments and can handle high temperature liquids. Its cooling system and heat-resistant materials ensure stable operation under high temperature conditions. Customization is also possible in special cases.
Q2: What type of pump is the BQS series?
A: The BQS series is a mine-specific explosion-proof submersible pump designed to operate safely in environments with flammable gases or explosive dust.
Q3: Is the BQS series energy-efficient?
A: Yes, the BQS series is designed for high efficiency and low energy consumption. Advanced hydraulic models and mechanical structures significantly improve energy utilization, reducing operating costs.
Q4: Can the BQS series handle liquids containing solid particles?
A: Yes, the BQS series uses specially designed impellers and wear-resistant materials to effectively handle wastewater containing solid particles, ensuring long-term stable operation.
Q5: What guarantees do I have when buying your products?
A: Our after-sales service implements the "2-4-24 standard". 2-hour response, telephone remote guidance within 4 hours, and solutions within 24 hours. If there is a need, we can provide door-to-door after-sales service.
Q6: What are the maintenance requirements for BQS series pumps?
A: The BQS series pumps are designed for easy maintenance. Regular inspections of seals, bearings, and impellers, along with keeping the pump clean and lubricated, can extend its lifespan and ensure efficient operation.
