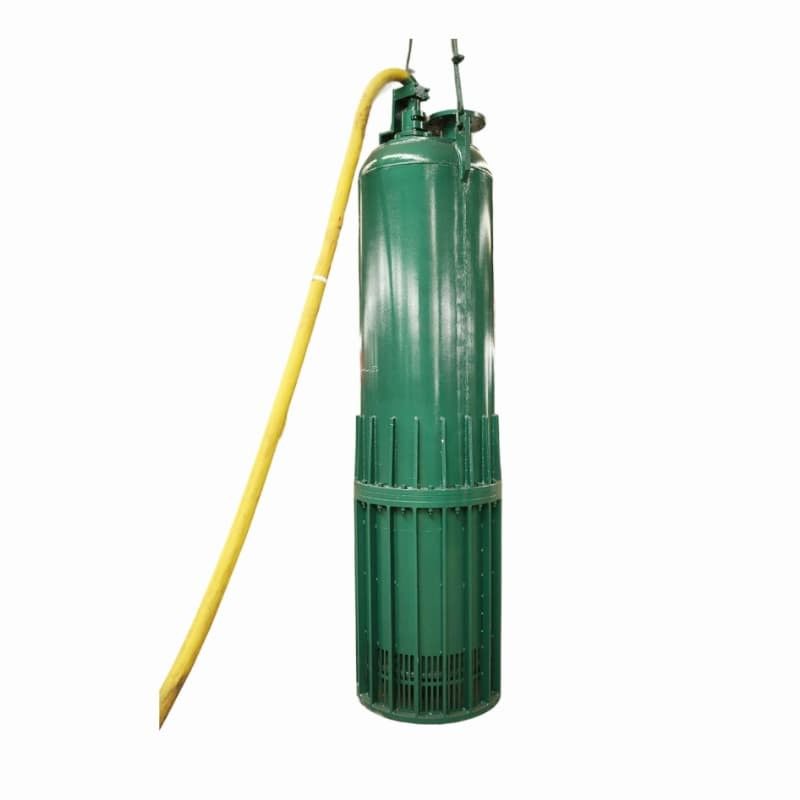

35m Oil Extraction High Head Dewatering Pumps 315kW 2000m³/H Submersible Electric Pumps

Brand Name: ATPUMP
Model Number: BQS2000-35-315/N
MOQ: 1
Price: USD 219-71999 / set
Packaging Details: Wooden box
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE、ISO 9001、ISO 14001、ISO45001
Rated Flow:
2000 M³/h
Rated Head:
35 M
Rated Power:
315 Kw
Rated Voltage:
380/660 Or 660/1140 V
Rated Current:
587.96/338.52or338.52/195.98
Synchronous Speed:
1500 R/min
Efficiency:
68.5
Maximum Diameter Of Passed Particles:
45 Mm
Outlet Diameter:
300 Mm
Color:
RAL 6029
Material:
QT600-3, SS304, SS316, SS316L, Duplex Stainless Steel,high Chromium Alloy
Medium Temperature:
≤40℃
PH:
4-10
Medium Density:
≤1100 Kg/m³
Submergence Depth:
≤20m
Cable Length（Standard）:
15m
Cable Standards:
MT818.5-2009 Flame-retardant Cable
Motor Installation Form:
Built-in Sturcture
Customizable:
Yes
Explosion-Proof Rating:
Exd
Insulation Rating:
F/H
Frequency:
50Hz / 60Hz
Pump Type:
Submersible Electric Pump
Power Range:
1.5-315kW
Drive:
Electric Pump
Supply Ability:
100000 sets per year
Highlight:

high head dewatering pumps 315kw

,

2000m³/h submersible electric pumps

,

oil extraction high head dewatering pumps

Product Description

315kW 2000m³/h 35m High-Head Large-Flow Explosion-Proof Submersible Pump For Mining and Oil Extraction Powerful and Reliable35m Oil Extraction High Head Dewatering Pumps 315kW 2000m³/H Submersible Electric Pumps 0



BQS series are explosion-proof submersible electric pumps specially developed for mining. There are a lot of methane (marsh gas) and other flammable gases in coal mines. These gases are prone to explosion when they encounter fire sources at a certain concentration. BQS series products can prevent electrical equipment from generating sparks, ensure safe operation in an environment containing flammable gases, and achieve the purpose of drainage.

35m Oil Extraction High Head Dewatering Pumps 315kW 2000m³/H Submersible Electric Pumps 1

35m Oil Extraction High Head Dewatering Pumps 315kW 2000m³/H Submersible Electric Pumps 2

No. Model



Rated flow

(m3/h)



Rated head

(m)



Rated power

(kW)



Rated voltage

(V)



Synchronous

speed

(r/min)



Efficiency

(%)

Outlet
diameter
(mm)



1

BQS2000-35-315/N



2000



35



315



380/660 or 660/1140



1500



68.5



300













35m Oil Extraction High Head Dewatering Pumps 315kW 2000m³/H Submersible Electric Pumps 3

  • Voltage: 380/660V,660/1140V,400V,440V,460V, customizable options are available.
  • Medium: Temperature not exceeding 40°C, PH 4-10, medium density ≤ 1100 kg/m³.(Customizable for special requirements).
  • Submersion depth: ≤20m.
  • Materials suitable for highly corrosive fluids can be customized.
  • The diameter of solid particles in the medium should comply with the regulations of MT/T671-2005. Please specify any special requirements when ordering.
  • MT818.5-2009 flame-retardant cable for coal mines.

35m Oil Extraction High Head Dewatering Pumps 315kW 2000m³/H Submersible Electric Pumps 4

  • Applicable to places with explosion hazards such as methane (gas), coal dust, etc.
  • It can transport mixed sewage containing insoluble substances such as silt, coal slime, coal slag, and fiber.
  • Applicable to buildings, hospitals, residential areas, municipal engineering, road construction, factory sewage discharge, etc., and discharges wastewater, rainwater and sewage containing solid particles and long fibers.
  • The material of the product can be changed to cope with the situation of conveying corrosive liquids.

35m Oil Extraction High Head Dewatering Pumps 315kW 2000m³/H Submersible Electric Pumps 5

35m Oil Extraction High Head Dewatering Pumps 315kW 2000m³/H Submersible Electric Pumps 6

35m Oil Extraction High Head Dewatering Pumps 315kW 2000m³/H Submersible Electric Pumps 7

DOUBLE-END MECHANICAL SEAL



Precision machining, high efficiency；

Excellent sealing performance, long service life.



ExdI/ExdbII EXPLOSION-PROOF MOTOR



Professional explosion-proof motors；
Boast stable performance and powerful driving force.



HIGH-PRECISION ROTOR



High-precision finish-machined rotor;

Operates smoothly with low shaft end runout.



HIGH QUALITY BEARING



High-load bearings;

High precision of components, reliable operation.



SUPPORT CUSTOMIZATION



Customizable stainless steel material;

Corrosion and rust resistant pump will be more durable.



PRECISION MEASUREMENT IN THREE COORDINATES



High precision, improve measurement efficiency;

Reduce human error.





35m Oil Extraction High Head Dewatering Pumps 315kW 2000m³/H Submersible Electric Pumps 8

35m Oil Extraction High Head Dewatering Pumps 315kW 2000m³/H Submersible Electric Pumps 9

35m Oil Extraction High Head Dewatering Pumps 315kW 2000m³/H Submersible Electric Pumps 10

FAQ


Q1: What if the model I need is not in your catalog?
A: We can accept customization, including but not limited to flow rate, head, material, function, etc. You only need to tell me the relevant information, and we have a professional technical team to provide you with plans and drawings.



Q2: How do I place an order?
A: Send us an inguiry - Tell us your needs and usage scenarios - Customize drawings and samples - Discuss details - Modify and confirm - Sign a contract/Deposit - Mass production - Final payment and delivery - Further cooperation.



Q3: How to transport?
A: We have a variety of transportation options. If there is a port in your area, sea transportation is an economical choice. If you are in a hurry to use it, we can ship it by air for you. If you don’t have your own freight forwarder, we can contract the relevant work from departure to arrival at the destination port.



Q4: Why choose you?
A: ATPUMP has been working with top domestic experts to develop and upgrade products since 2005. So far, it has participated in thousands of projects and cooperated with many major domestic projects. In China, we are the only one that can manufacture 1.5-4500kW products. We are the first choice for many domestic companies and projects, which proves that we have sufficient technical strength and quality support.



Q5: What guarantees do I have when buying your products?

A: Our after-sales service implements the "2-4-24 standard". 2-hour response, telephone remote guidance within 4 hours, and solutions within 24 hours. If there is a need, we can provide door-to-door after-sales service.



Q6: I want to be your dealer, what are the conditions?

A: No problem at all, dear, it is recommended that you purchase a sample first to try it out. If you have any special needs and modification suggestions, our technical team is at your service at any time. Looking forward to our further cooperation!



Tags:

submersible waste pump

submersible pump

explosion proof submersible pump

RELATED PRODUCTS
BQS 55kW Explosion Proof Submersible Pumps Durable And Efficient Performance For Challenging Environments Video

BQS 55kW Explosion Proof Submersible Pumps Durable And Efficient Performance For Challenging Environments

Get Best Price
Reliable BQS 55kW Explosion Proof Submersible Pump For Mining And Oil Extraction Operations Video

Reliable BQS 55kW Explosion Proof Submersible Pump For Mining And Oil Extraction Operations

Get Best Price
Robust Explosion Proof Submersible Sump Pump BQS 45kW For Industrial Use Video

Robust Explosion Proof Submersible Sump Pump BQS 45kW For Industrial Use

Get Best Price
Mining And Oil Extraction Explosion Proof Submersible Pump BQS 45kW Video

Mining And Oil Extraction Explosion Proof Submersible Pump BQS 45kW

Get Best Price
ExdIIBT4/CT4 Explosion Proof Submersible Pump Manufacturers 45kW 90 m³/h Video

ExdIIBT4/CT4 Explosion Proof Submersible Pump Manufacturers 45kW 90 m³/h

Get Best Price
45kW Submersible Drainage Pump Explosion Proof RAL 6029 Color 3000 R/Min Video

45kW Submersible Drainage Pump Explosion Proof RAL 6029 Color 3000 R/Min

Get Best Price
High Flow Explosion Proof Submersible Pump 45kW 30 m³/h For Mining And Oil Extraction Dewatering Sewage Pump Video

High Flow Explosion Proof Submersible Pump 45kW 30 m³/h For Mining And Oil Extraction Dewatering Sewage Pump

Get Best Price
600m³/H 60m Large Flow Explosion Proof Submersible Wastewater Pump 185kW 247HP Video

600m³/H 60m Large Flow Explosion Proof Submersible Wastewater Pump 185kW 247HP

Get Best Price
Good price online

Products Details

Home > Products >
Explosion Proof Submersible Pumps
>
35m Oil Extraction High Head Dewatering Pumps 315kW 2000m³/H Submersible Electric Pumps
All Category

Submersible Sewage Pump

Submersible Drainage Pump

High Head Submersible Pump

Explosion Proof Submersible Pumps

Portable Submersible Pump

High Voltage Pump

Submersible Stainless Steel Pumps

Submersible Slurry Pump

Submersible Agitator Pump

Pneumatic Diaphragm Pump

Pneumatic Submersible Pump

Portable Slurry Pump

Pump Control Panel
name
  • name
  • name
  • name
  • name
  • name

35m Oil Extraction High Head Dewatering Pumps 315kW 2000m³/H Submersible Electric Pumps

Brand Name: ATPUMP
Model Number: BQS2000-35-315/N
MOQ: 1
Price: USD 219-71999 / set
Packaging Details: Wooden box
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Brand Name:
ATPUMP
Certification:
CE、ISO 9001、ISO 14001、ISO45001
Model Number:
BQS2000-35-315/N
Rated Flow:
2000 M³/h
Rated Head:
35 M
Rated Power:
315 Kw
Rated Voltage:
380/660 Or 660/1140 V
Rated Current:
587.96/338.52or338.52/195.98
Synchronous Speed:
1500 R/min
Efficiency:
68.5
Maximum Diameter Of Passed Particles:
45 Mm
Outlet Diameter:
300 Mm
Color:
RAL 6029
Material:
QT600-3, SS304, SS316, SS316L, Duplex Stainless Steel,high Chromium Alloy
Medium Temperature:
≤40℃
PH:
4-10
Medium Density:
≤1100 Kg/m³
Submergence Depth:
≤20m
Cable Length（Standard）:
15m
Cable Standards:
MT818.5-2009 Flame-retardant Cable
Motor Installation Form:
Built-in Sturcture
Customizable:
Yes
Explosion-Proof Rating:
Exd
Insulation Rating:
F/H
Frequency:
50Hz / 60Hz
Pump Type:
Submersible Electric Pump
Power Range:
1.5-315kW
Drive:
Electric Pump
Minimum Order Quantity:
1
Price:
USD 219-71999 / set
Packaging Details:
Wooden box
Delivery Time:
20-35 work days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
100000 sets per year
Highlight:

high head dewatering pumps 315kw

,

2000m³/h submersible electric pumps

,

oil extraction high head dewatering pumps

Product Description

315kW 2000m³/h 35m High-Head Large-Flow Explosion-Proof Submersible Pump For Mining and Oil Extraction Powerful and Reliable35m Oil Extraction High Head Dewatering Pumps 315kW 2000m³/H Submersible Electric Pumps 0



BQS series are explosion-proof submersible electric pumps specially developed for mining. There are a lot of methane (marsh gas) and other flammable gases in coal mines. These gases are prone to explosion when they encounter fire sources at a certain concentration. BQS series products can prevent electrical equipment from generating sparks, ensure safe operation in an environment containing flammable gases, and achieve the purpose of drainage.

35m Oil Extraction High Head Dewatering Pumps 315kW 2000m³/H Submersible Electric Pumps 1

35m Oil Extraction High Head Dewatering Pumps 315kW 2000m³/H Submersible Electric Pumps 2

No. Model



Rated flow

(m3/h)



Rated head

(m)



Rated power

(kW)



Rated voltage

(V)



Synchronous

speed

(r/min)



Efficiency

(%)

Outlet
diameter
(mm)



1

BQS2000-35-315/N



2000



35



315



380/660 or 660/1140



1500



68.5



300













35m Oil Extraction High Head Dewatering Pumps 315kW 2000m³/H Submersible Electric Pumps 3

  • Voltage: 380/660V,660/1140V,400V,440V,460V, customizable options are available.
  • Medium: Temperature not exceeding 40°C, PH 4-10, medium density ≤ 1100 kg/m³.(Customizable for special requirements).
  • Submersion depth: ≤20m.
  • Materials suitable for highly corrosive fluids can be customized.
  • The diameter of solid particles in the medium should comply with the regulations of MT/T671-2005. Please specify any special requirements when ordering.
  • MT818.5-2009 flame-retardant cable for coal mines.

35m Oil Extraction High Head Dewatering Pumps 315kW 2000m³/H Submersible Electric Pumps 4

  • Applicable to places with explosion hazards such as methane (gas), coal dust, etc.
  • It can transport mixed sewage containing insoluble substances such as silt, coal slime, coal slag, and fiber.
  • Applicable to buildings, hospitals, residential areas, municipal engineering, road construction, factory sewage discharge, etc., and discharges wastewater, rainwater and sewage containing solid particles and long fibers.
  • The material of the product can be changed to cope with the situation of conveying corrosive liquids.

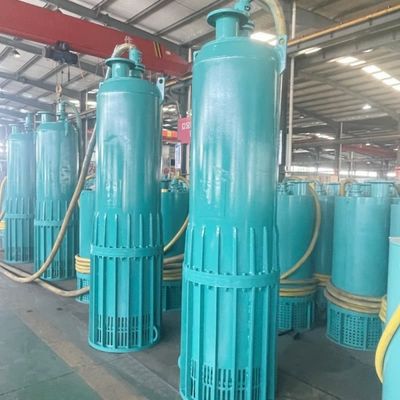

35m Oil Extraction High Head Dewatering Pumps 315kW 2000m³/H Submersible Electric Pumps 5

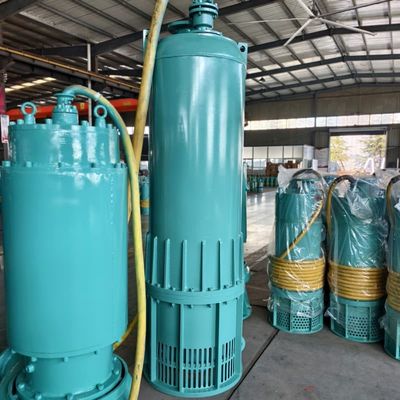

35m Oil Extraction High Head Dewatering Pumps 315kW 2000m³/H Submersible Electric Pumps 6

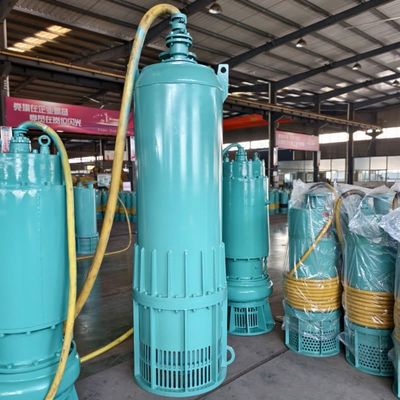

35m Oil Extraction High Head Dewatering Pumps 315kW 2000m³/H Submersible Electric Pumps 7

DOUBLE-END MECHANICAL SEAL



Precision machining, high efficiency；

Excellent sealing performance, long service life.



ExdI/ExdbII EXPLOSION-PROOF MOTOR



Professional explosion-proof motors；
Boast stable performance and powerful driving force.



HIGH-PRECISION ROTOR



High-precision finish-machined rotor;

Operates smoothly with low shaft end runout.



HIGH QUALITY BEARING



High-load bearings;

High precision of components, reliable operation.



SUPPORT CUSTOMIZATION



Customizable stainless steel material;

Corrosion and rust resistant pump will be more durable.



PRECISION MEASUREMENT IN THREE COORDINATES



High precision, improve measurement efficiency;

Reduce human error.





35m Oil Extraction High Head Dewatering Pumps 315kW 2000m³/H Submersible Electric Pumps 8

35m Oil Extraction High Head Dewatering Pumps 315kW 2000m³/H Submersible Electric Pumps 9

35m Oil Extraction High Head Dewatering Pumps 315kW 2000m³/H Submersible Electric Pumps 10

FAQ


Q1: What if the model I need is not in your catalog?
A: We can accept customization, including but not limited to flow rate, head, material, function, etc. You only need to tell me the relevant information, and we have a professional technical team to provide you with plans and drawings.



Q2: How do I place an order?
A: Send us an inguiry - Tell us your needs and usage scenarios - Customize drawings and samples - Discuss details - Modify and confirm - Sign a contract/Deposit - Mass production - Final payment and delivery - Further cooperation.



Q3: How to transport?
A: We have a variety of transportation options. If there is a port in your area, sea transportation is an economical choice. If you are in a hurry to use it, we can ship it by air for you. If you don’t have your own freight forwarder, we can contract the relevant work from departure to arrival at the destination port.



Q4: Why choose you?
A: ATPUMP has been working with top domestic experts to develop and upgrade products since 2005. So far, it has participated in thousands of projects and cooperated with many major domestic projects. In China, we are the only one that can manufacture 1.5-4500kW products. We are the first choice for many domestic companies and projects, which proves that we have sufficient technical strength and quality support.



Q5: What guarantees do I have when buying your products?

A: Our after-sales service implements the "2-4-24 standard". 2-hour response, telephone remote guidance within 4 hours, and solutions within 24 hours. If there is a need, we can provide door-to-door after-sales service.



Q6: I want to be your dealer, what are the conditions?

A: No problem at all, dear, it is recommended that you purchase a sample first to try it out. If you have any special needs and modification suggestions, our technical team is at your service at any time. Looking forward to our further cooperation!



Tags:

submersible waste pump

submersible pump

explosion proof submersible pump

RELATED PRODUCTS
BQS 55kW Explosion Proof Submersible Pumps Durable And Efficient Performance For Challenging Environments Video

BQS 55kW Explosion Proof Submersible Pumps Durable And Efficient Performance For Challenging Environments

Get Best Price
Reliable BQS 55kW Explosion Proof Submersible Pump For Mining And Oil Extraction Operations Video

Reliable BQS 55kW Explosion Proof Submersible Pump For Mining And Oil Extraction Operations

Get Best Price
Robust Explosion Proof Submersible Sump Pump BQS 45kW For Industrial Use Video

Robust Explosion Proof Submersible Sump Pump BQS 45kW For Industrial Use

Get Best Price
Mining And Oil Extraction Explosion Proof Submersible Pump BQS 45kW Video

Mining And Oil Extraction Explosion Proof Submersible Pump BQS 45kW

Get Best Price
ExdIIBT4/CT4 Explosion Proof Submersible Pump Manufacturers 45kW 90 m³/h Video

ExdIIBT4/CT4 Explosion Proof Submersible Pump Manufacturers 45kW 90 m³/h

Get Best Price
45kW Submersible Drainage Pump Explosion Proof RAL 6029 Color 3000 R/Min Video

45kW Submersible Drainage Pump Explosion Proof RAL 6029 Color 3000 R/Min

Get Best Price
High Flow Explosion Proof Submersible Pump 45kW 30 m³/h For Mining And Oil Extraction Dewatering Sewage Pump Video

High Flow Explosion Proof Submersible Pump 45kW 30 m³/h For Mining And Oil Extraction Dewatering Sewage Pump

Get Best Price
600m³/H 60m Large Flow Explosion Proof Submersible Wastewater Pump 185kW 247HP Video

600m³/H 60m Large Flow Explosion Proof Submersible Wastewater Pump 185kW 247HP

Get Best Price
15054873108
Quick link
Home About Us products Application news Cases Contact Us
Quick Contact

Address

Jining,Shandong,China

Tel

86-537-277-1006

15054873108
Our Newsletter
Subscribe to our newsletter for discounts and more.
Privacy Policy |  Sitemap  | China Good Quality Submersible Sewage Pump Supplier. Copyright © 2025 Jining Antai Mine Equipment Manufacturing Co., Ltd. . All Rights Reserved.
