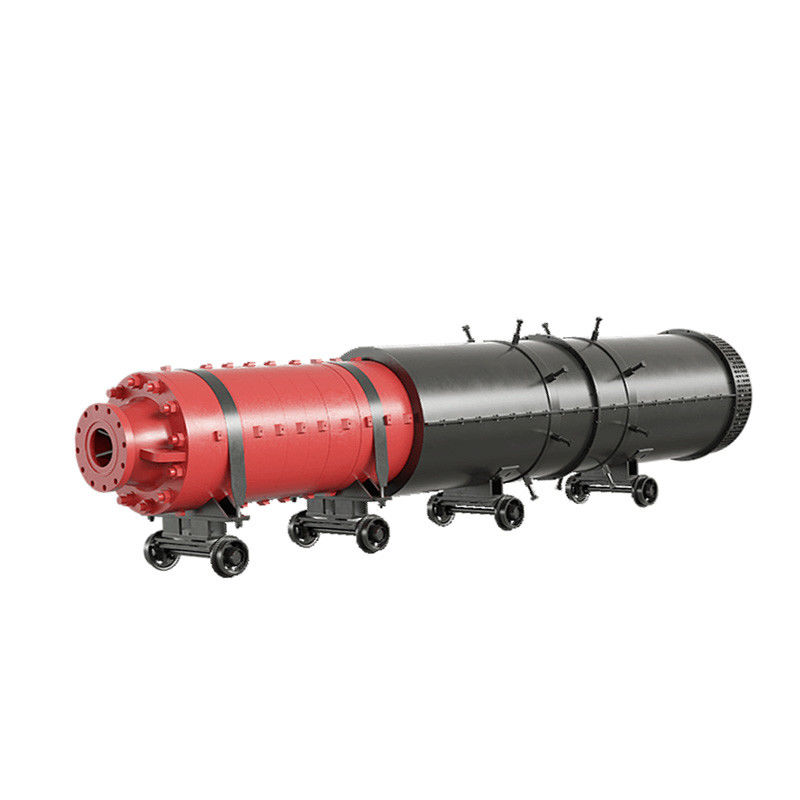

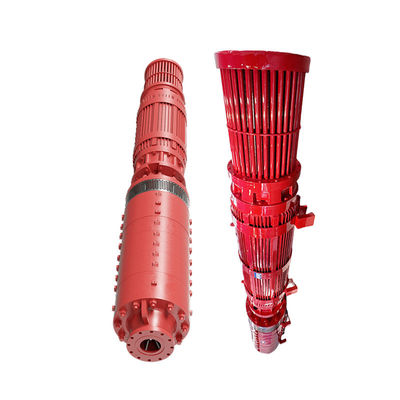

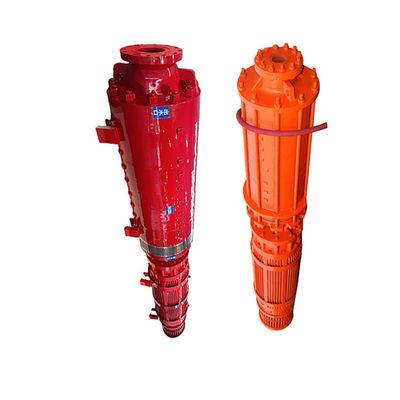

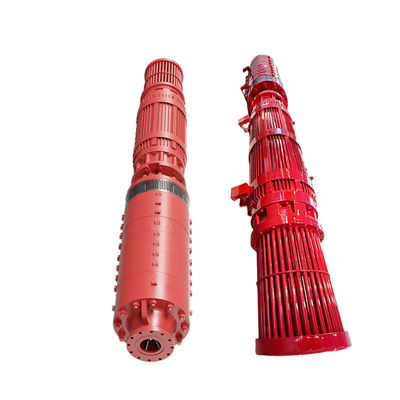

BQ series high voltage explosion proof submersible electric pump

BQ series is the largest mining drainage equipment jointly developed by ATPUMP and Henan Mine Emergency Drainage and Relief Center. It is composed of a double-suction or single-suction multi-stage centrifugal pump and a water-filled high-pressure submersible three-phase asynchronous motor. The power range is 355-4500kW, the submergence depth can reach 1000m, the head is high, the flow rate is large, and it meets the needs of mine drainage.

• Medium: PH 4-10
• Environmental temperature: ≤50°C
• Solid Content: ≤10%
• Installation type: vertical, horizontal or inclined
• Submergence depth: ≤1000m, but the minimum submerged water level should not be below the upper plane of the discharge flange of the check valve.
• Can be customized based on the user's specific operating environment.

This series of products is designed and manufactured in accordance with GB3836.1-2010 Explosive Environment.

Part 1: General requirements for equipment and GB3836.2-2010 Explosive Environment;
Part 2: Equipment protected by flameproof enclosure "d" Standard regulations, explosion-proof type is flameproof type, flameproof mark Exdl, suitable for normal production drainage of mines containing explosive gas environments such as methane or coal dust, and emergency rescue and drainage of permeable mines, drainage and mine restoration.

• The impeller features a back-facing structure, achieving axial force balance, stable operation, and extended service life.
• Suitable for horizontal, inclined, and vertical installation scenarios.
• Equipped with a high-efficiency hydraulic model for enhanced pump efficiency.
• Designed with a water-filled motor and self-circulating water cooling system for effective heat dissipation.
• No overload at any head points design ensures safe operation.
• Key components are made of wear-resistant ZG1Cr13Mo material, extending service life and reducing pump lifting and disassembly frequency.
