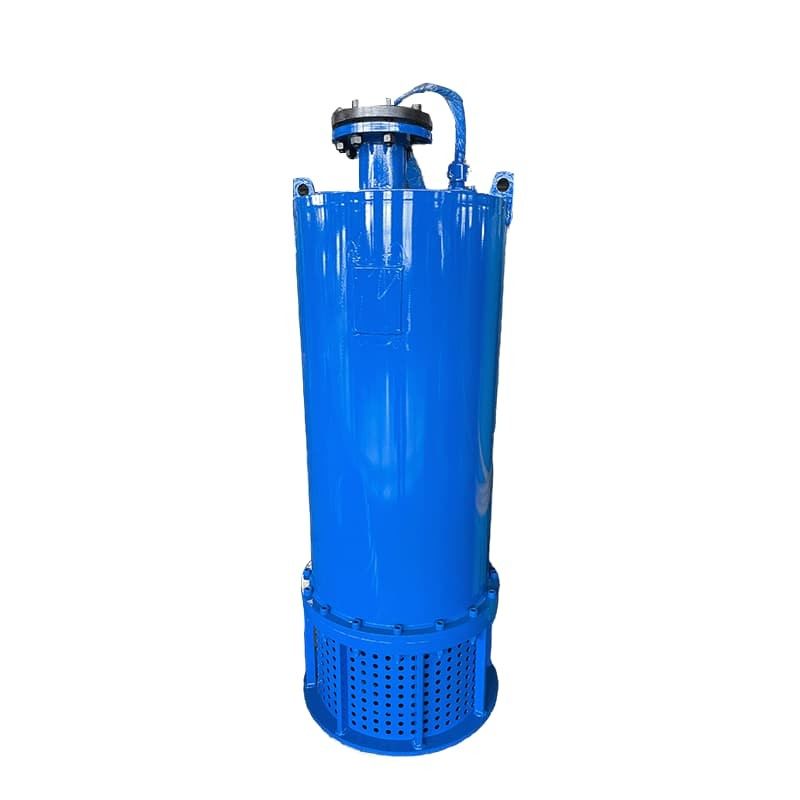

WQB 132kw High Power Industrial Explosion Proof Submersible Pumps Ultra Large Flow For Gas And Petrochemical Sewage Disposal

Brand Name: ATPUMP
Model Number: WQB1000-30-132
MOQ: 1
Price: USD 209-71999 / set
Packaging Details: Wooden box
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE、ISO 9001、ISO 14001、ISO45001
Rated Flow:
1000 M³
Rated Head:
30 M
Rated Power:
132 KW
Synchronous Speed:
1500 R/min
Rlectric Efficiency:
76 %
Outlet Diameter:
350 Mm
Voltage:
380/660 Or 660/1140 V （Customizable）
Medium Temperature:
≤40℃
PH:
4-10
Medium Density:
≤1100 Kg/m3
Maximum Submersion Depth:
10 M
Material:
QT600-3, SS304, SS316, SS316L, Duplex Stainless Steel,high Chromium Alloy
Color:
RAL 5005
Explosion Proof Sign:
ExdbII BT4Gb/ExdII CT4Gb
Applicable Level:
IIB / IIC
Temperature Group:
T1-T4
Drive:
Electric Pump
Cable Length（Standard）:
15m
Supply Ability:
100000 sets per year
Highlight:

industrial explosion proof submersible pumps

,

wqb explosion proof submersible pumps

,

wqb explosion proof submersible pump manufacturers

Product Description

WQB 132kw High - power Industrial Explosion - proof Submersible Pump: Boasting Ultra - large Flow for Gas and Petrochemical Sewage Disposal

WQB 132kw High Power Industrial Explosion Proof Submersible Pumps Ultra Large Flow For Gas And Petrochemical Sewage Disposal 0



The WQB series is predominantly applied in factories classified as IIB/IIC level, including those in the coal chemical and petrochemical industries, as well as other locations with stringent explosion - proof requirements. Tailored to diverse demands and applications, it offers customization options in terms of flow rate, head, and material, ensuring that it can effectively address a wide array of specific needs.



Every product within this series incorporates the innovative "No overload at any point" technology. This not only guarantees superior quality but also significantly extends the service life, making the WQB series a reliable and durable choice for various industrial scenarios.

WQB 132kw High Power Industrial Explosion Proof Submersible Pumps Ultra Large Flow For Gas And Petrochemical Sewage Disposal 1

WQB 132kw High Power Industrial Explosion Proof Submersible Pumps Ultra Large Flow For Gas And Petrochemical Sewage Disposal 2

No. Model



Rated flow

(m³/h)



Rated head

(m)



Rated power

(kW)

Synchronous
speed

(r/min)



Efficiency

(%)

 Outlet
diameter
(mm)
1 WQB600-50-132 600 50 132 1500 70 200
2 WQB500-60-132 500 60 132 1500 69 200
3 WQB800-35-132 800 35 132 1500 69.8 250
4 WQB1000-30-132 1000 30 132 1500 80 300

WQB 132kw High Power Industrial Explosion Proof Submersible Pumps Ultra Large Flow For Gas And Petrochemical Sewage Disposal 3

WQB 132kw High Power Industrial Explosion Proof Submersible Pumps Ultra Large Flow For Gas And Petrochemical Sewage Disposal 4

  • This product is suitable for explosion - proof marked applications in areas where explosion - proof requirements are mandatory.

    Power Supply
    The power supply voltage options include 380V, 400V, 440V, 460V, 660V, with frequencies of 50Hz or 60Hz. Custom - tailored voltage and frequency configurations can also be arranged upon request.

    Transport Medium Temperature
    The temperature of the transported medium should range from 0°C to 40°C. In cases where the temperature exceeds this range, alternative pump models specifically designed for handling hot water are available.

    PH Value of Transported Medium
    The pH value of the medium being transported should fall within the range of 4 - 10.

    Medium Density
    The density of the medium must be ≤1100 Kg/m³.

    Maximum Submersion Depth
    The maximum allowable submersion depth is 10m.

WQB 132kw High Power Industrial Explosion Proof Submersible Pumps Ultra Large Flow For Gas And Petrochemical Sewage Disposal 5

This explosion-proof submersible sewage pump is marked with explosion-proof certifications ExdbIIBT4Gb / ExdIICT4Gb. It is suitable for use in factory environments classified as IIB/IIC, with combustible gas or vapor forming explosive mixtures with air within temperature groups T1-T4.The maximum surface temperature of the unit must comply with the specifications in the table below.
Temperature Group
 T1 T2 T3 T4
Maximum surface temperature
 450 300 200 135

WQB 132kw High Power Industrial Explosion Proof Submersible Pumps Ultra Large Flow For Gas And Petrochemical Sewage Disposal 6

WQB 132kw High Power Industrial Explosion Proof Submersible Pumps Ultra Large Flow For Gas And Petrochemical Sewage Disposal 7

WQB 132kw High Power Industrial Explosion Proof Submersible Pumps Ultra Large Flow For Gas And Petrochemical Sewage Disposal 8

  • The flow parts adopt QBQ surface treatment process, which has excellent wear and corrosion resistance.
  • The thickened impeller, pump body, and pump cover effectively extend the service life of the components.
  • Suitable for long-term use in environments with corrosive liquids and abrasive particles (such as sediments and gravel).
  • The bottom inlet and bottom outlet design ensures strong clogging resistance and high flow capacity, making it suitable for a wider range of applications.
  • Simple strcuture, lightweight, easy to install and maintain.
  • The pump equipped with cooling jacket, which has high heat dissipation efficiency,could not fully submerged in the medium.

WQB 132kw High Power Industrial Explosion Proof Submersible Pumps Ultra Large Flow For Gas And Petrochemical Sewage Disposal 9

WQB 132kw High Power Industrial Explosion Proof Submersible Pumps Ultra Large Flow For Gas And Petrochemical Sewage Disposal 10

WQB 132kw High Power Industrial Explosion Proof Submersible Pumps Ultra Large Flow For Gas And Petrochemical Sewage Disposal 11

WQB 132kw High Power Industrial Explosion Proof Submersible Pumps Ultra Large Flow For Gas And Petrochemical Sewage Disposal 12

FAQ



Q1: What if the model I need isn't listed in your catalog?
A: We're more than happy to accommodate customizations. This encompasses aspects such as flow rate, head, material, and function, among others. Simply share the relevant details with us, and our professional technical team will promptly furnish you with comprehensive plans and detailed drawings.



Q2: How do I place an order?
A: Here's the step - by - step process:



  1. Send us an inquiry.
  2. Clearly communicate your requirements and the intended usage scenarios.
  3. We'll customize the drawings and, if necessary, provide samples.
  4. Engage in a detailed discussion.
  5. Make any required modifications and confirm the details.
  6. Sign a contract and pay the deposit.
  7. Commence mass production.
  8. Settle the final payment, and we'll arrange for delivery.
  9. Look forward to further cooperation.



Q3: What are the transportation options?
A: We offer a diverse range of transportation choices. If there's a port near your location, sea freight presents a cost - effective solution. In case of urgent need, we can also arrange air freight for you. Moreover, if you don't have your own freight forwarder, we can handle all aspects of the shipping process, from the point of origin to the destination port.



Q4: Why should I choose your company?
A: Since 2005, ATPUMP has been collaborating with leading domestic experts in product development and upgrading. To date, we've been involved in thousands of projects and have partnered with numerous major domestic undertakings. In China, we hold the distinction of being the sole manufacturer capable of producing products ranging from 1.5 - 4500kW. Our status as the preferred choice for many domestic companies and projects is a testament to our robust technical capabilities and unwavering quality assurance.



Q5: What assurances do I have when purchasing your products?
A: Our after - sales service adheres to the "2 - 4 - 24 standard". We guarantee a 2 - hour response time. Within 4 hours, we'll provide telephone - based remote guidance, and we'll offer a comprehensive solution within 24 hours. If circumstances demand, we can even provide on - site after - sales service.



Q6: I'm interested in becoming your dealer. What are the requirements?
A: That's great news! We recommend that you start by purchasing a sample for evaluation. If you have any unique requirements or modification ideas, our technical team is at your disposal around the clock. We're excited about the prospect of a mutually beneficial partnership!









Tags:

submersible waste pump

submersible pump

explosion proof submersible pump

RELATED PRODUCTS
BQS 55kW Explosion Proof Submersible Pumps Durable And Efficient Performance For Challenging Environments Video

BQS 55kW Explosion Proof Submersible Pumps Durable And Efficient Performance For Challenging Environments

Get Best Price
Reliable BQS 55kW Explosion Proof Submersible Pump For Mining And Oil Extraction Operations Video

Reliable BQS 55kW Explosion Proof Submersible Pump For Mining And Oil Extraction Operations

Get Best Price
Robust Explosion Proof Submersible Sump Pump BQS 45kW For Industrial Use Video

Robust Explosion Proof Submersible Sump Pump BQS 45kW For Industrial Use

Get Best Price
Mining And Oil Extraction Explosion Proof Submersible Pump BQS 45kW Video

Mining And Oil Extraction Explosion Proof Submersible Pump BQS 45kW

Get Best Price
Good price online

Products Details

Home > Products >
Explosion Proof Submersible Pumps
>
WQB 132kw High Power Industrial Explosion Proof Submersible Pumps Ultra Large Flow For Gas And Petrochemical Sewage Disposal
All Category

Submersible Sewage Pump

Submersible Drainage Pump

High Head Submersible Pump

Explosion Proof Submersible Pumps

Portable Submersible Pump

High Voltage Pump

Submersible Stainless Steel Pumps

Submersible Slurry Pump

Submersible Agitator Pump

Pneumatic Diaphragm Pump

Pneumatic Submersible Pump

Portable Slurry Pump

Pump Control Panel
name
  • name
  • name
  • name
  • name

WQB 132kw High Power Industrial Explosion Proof Submersible Pumps Ultra Large Flow For Gas And Petrochemical Sewage Disposal

Brand Name: ATPUMP
Model Number: WQB1000-30-132
MOQ: 1
Price: USD 209-71999 / set
Packaging Details: Wooden box
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Brand Name:
ATPUMP
Certification:
CE、ISO 9001、ISO 14001、ISO45001
Model Number:
WQB1000-30-132
Rated Flow:
1000 M³
Rated Head:
30 M
Rated Power:
132 KW
Synchronous Speed:
1500 R/min
Rlectric Efficiency:
76 %
Outlet Diameter:
350 Mm
Voltage:
380/660 Or 660/1140 V （Customizable）
Medium Temperature:
≤40℃
PH:
4-10
Medium Density:
≤1100 Kg/m3
Maximum Submersion Depth:
10 M
Material:
QT600-3, SS304, SS316, SS316L, Duplex Stainless Steel,high Chromium Alloy
Color:
RAL 5005
Explosion Proof Sign:
ExdbII BT4Gb/ExdII CT4Gb
Applicable Level:
IIB / IIC
Temperature Group:
T1-T4
Drive:
Electric Pump
Cable Length（Standard）:
15m
Minimum Order Quantity:
1
Price:
USD 209-71999 / set
Packaging Details:
Wooden box
Delivery Time:
20-35 work days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
100000 sets per year
Highlight:

industrial explosion proof submersible pumps

,

wqb explosion proof submersible pumps

,

wqb explosion proof submersible pump manufacturers

Product Description

WQB 132kw High - power Industrial Explosion - proof Submersible Pump: Boasting Ultra - large Flow for Gas and Petrochemical Sewage Disposal

WQB 132kw High Power Industrial Explosion Proof Submersible Pumps Ultra Large Flow For Gas And Petrochemical Sewage Disposal 0



The WQB series is predominantly applied in factories classified as IIB/IIC level, including those in the coal chemical and petrochemical industries, as well as other locations with stringent explosion - proof requirements. Tailored to diverse demands and applications, it offers customization options in terms of flow rate, head, and material, ensuring that it can effectively address a wide array of specific needs.



Every product within this series incorporates the innovative "No overload at any point" technology. This not only guarantees superior quality but also significantly extends the service life, making the WQB series a reliable and durable choice for various industrial scenarios.

WQB 132kw High Power Industrial Explosion Proof Submersible Pumps Ultra Large Flow For Gas And Petrochemical Sewage Disposal 1

WQB 132kw High Power Industrial Explosion Proof Submersible Pumps Ultra Large Flow For Gas And Petrochemical Sewage Disposal 2

No. Model



Rated flow

(m³/h)



Rated head

(m)



Rated power

(kW)

Synchronous
speed

(r/min)



Efficiency

(%)

 Outlet
diameter
(mm)
1 WQB600-50-132 600 50 132 1500 70 200
2 WQB500-60-132 500 60 132 1500 69 200
3 WQB800-35-132 800 35 132 1500 69.8 250
4 WQB1000-30-132 1000 30 132 1500 80 300

WQB 132kw High Power Industrial Explosion Proof Submersible Pumps Ultra Large Flow For Gas And Petrochemical Sewage Disposal 3

WQB 132kw High Power Industrial Explosion Proof Submersible Pumps Ultra Large Flow For Gas And Petrochemical Sewage Disposal 4

  • This product is suitable for explosion - proof marked applications in areas where explosion - proof requirements are mandatory.

    Power Supply
    The power supply voltage options include 380V, 400V, 440V, 460V, 660V, with frequencies of 50Hz or 60Hz. Custom - tailored voltage and frequency configurations can also be arranged upon request.

    Transport Medium Temperature
    The temperature of the transported medium should range from 0°C to 40°C. In cases where the temperature exceeds this range, alternative pump models specifically designed for handling hot water are available.

    PH Value of Transported Medium
    The pH value of the medium being transported should fall within the range of 4 - 10.

    Medium Density
    The density of the medium must be ≤1100 Kg/m³.

    Maximum Submersion Depth
    The maximum allowable submersion depth is 10m.

WQB 132kw High Power Industrial Explosion Proof Submersible Pumps Ultra Large Flow For Gas And Petrochemical Sewage Disposal 5

This explosion-proof submersible sewage pump is marked with explosion-proof certifications ExdbIIBT4Gb / ExdIICT4Gb. It is suitable for use in factory environments classified as IIB/IIC, with combustible gas or vapor forming explosive mixtures with air within temperature groups T1-T4.The maximum surface temperature of the unit must comply with the specifications in the table below.
Temperature Group
 T1 T2 T3 T4
Maximum surface temperature
 450 300 200 135

WQB 132kw High Power Industrial Explosion Proof Submersible Pumps Ultra Large Flow For Gas And Petrochemical Sewage Disposal 6

WQB 132kw High Power Industrial Explosion Proof Submersible Pumps Ultra Large Flow For Gas And Petrochemical Sewage Disposal 7

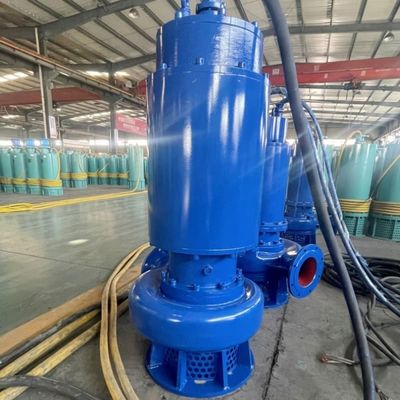

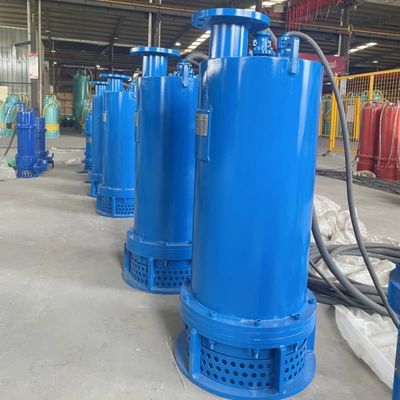

WQB 132kw High Power Industrial Explosion Proof Submersible Pumps Ultra Large Flow For Gas And Petrochemical Sewage Disposal 8

  • The flow parts adopt QBQ surface treatment process, which has excellent wear and corrosion resistance.
  • The thickened impeller, pump body, and pump cover effectively extend the service life of the components.
  • Suitable for long-term use in environments with corrosive liquids and abrasive particles (such as sediments and gravel).
  • The bottom inlet and bottom outlet design ensures strong clogging resistance and high flow capacity, making it suitable for a wider range of applications.
  • Simple strcuture, lightweight, easy to install and maintain.
  • The pump equipped with cooling jacket, which has high heat dissipation efficiency,could not fully submerged in the medium.

WQB 132kw High Power Industrial Explosion Proof Submersible Pumps Ultra Large Flow For Gas And Petrochemical Sewage Disposal 9

WQB 132kw High Power Industrial Explosion Proof Submersible Pumps Ultra Large Flow For Gas And Petrochemical Sewage Disposal 10

WQB 132kw High Power Industrial Explosion Proof Submersible Pumps Ultra Large Flow For Gas And Petrochemical Sewage Disposal 11

WQB 132kw High Power Industrial Explosion Proof Submersible Pumps Ultra Large Flow For Gas And Petrochemical Sewage Disposal 12

FAQ



Q1: What if the model I need isn't listed in your catalog?
A: We're more than happy to accommodate customizations. This encompasses aspects such as flow rate, head, material, and function, among others. Simply share the relevant details with us, and our professional technical team will promptly furnish you with comprehensive plans and detailed drawings.



Q2: How do I place an order?
A: Here's the step - by - step process:



  1. Send us an inquiry.
  2. Clearly communicate your requirements and the intended usage scenarios.
  3. We'll customize the drawings and, if necessary, provide samples.
  4. Engage in a detailed discussion.
  5. Make any required modifications and confirm the details.
  6. Sign a contract and pay the deposit.
  7. Commence mass production.
  8. Settle the final payment, and we'll arrange for delivery.
  9. Look forward to further cooperation.



Q3: What are the transportation options?
A: We offer a diverse range of transportation choices. If there's a port near your location, sea freight presents a cost - effective solution. In case of urgent need, we can also arrange air freight for you. Moreover, if you don't have your own freight forwarder, we can handle all aspects of the shipping process, from the point of origin to the destination port.



Q4: Why should I choose your company?
A: Since 2005, ATPUMP has been collaborating with leading domestic experts in product development and upgrading. To date, we've been involved in thousands of projects and have partnered with numerous major domestic undertakings. In China, we hold the distinction of being the sole manufacturer capable of producing products ranging from 1.5 - 4500kW. Our status as the preferred choice for many domestic companies and projects is a testament to our robust technical capabilities and unwavering quality assurance.



Q5: What assurances do I have when purchasing your products?
A: Our after - sales service adheres to the "2 - 4 - 24 standard". We guarantee a 2 - hour response time. Within 4 hours, we'll provide telephone - based remote guidance, and we'll offer a comprehensive solution within 24 hours. If circumstances demand, we can even provide on - site after - sales service.



Q6: I'm interested in becoming your dealer. What are the requirements?
A: That's great news! We recommend that you start by purchasing a sample for evaluation. If you have any unique requirements or modification ideas, our technical team is at your disposal around the clock. We're excited about the prospect of a mutually beneficial partnership!









Tags:

submersible waste pump

submersible pump

explosion proof submersible pump

RELATED PRODUCTS
BQS 55kW Explosion Proof Submersible Pumps Durable And Efficient Performance For Challenging Environments Video

BQS 55kW Explosion Proof Submersible Pumps Durable And Efficient Performance For Challenging Environments

Get Best Price
Reliable BQS 55kW Explosion Proof Submersible Pump For Mining And Oil Extraction Operations Video

Reliable BQS 55kW Explosion Proof Submersible Pump For Mining And Oil Extraction Operations

Get Best Price
Robust Explosion Proof Submersible Sump Pump BQS 45kW For Industrial Use Video

Robust Explosion Proof Submersible Sump Pump BQS 45kW For Industrial Use

Get Best Price
Mining And Oil Extraction Explosion Proof Submersible Pump BQS 45kW Video

Mining And Oil Extraction Explosion Proof Submersible Pump BQS 45kW

Get Best Price
15054873108
Quick link
Home About Us products Application news Cases Contact Us
Quick Contact

Address

Jining,Shandong,China

Tel

86-537-277-1006

15054873108
Our Newsletter
Subscribe to our newsletter for discounts and more.
Privacy Policy |  Sitemap  | China Good Quality Submersible Sewage Pump Supplier. Copyright © 2025 Jining Antai Mine Equipment Manufacturing Co., Ltd. . All Rights Reserved.
