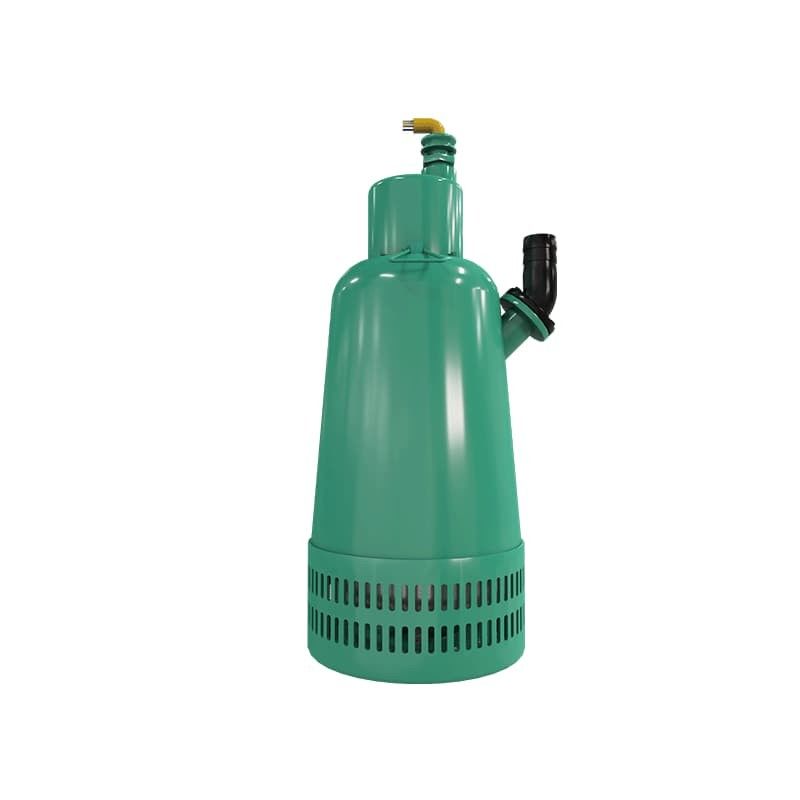

BQS 7.5kw Small power portable explosion-proof submersible pump

The BQS series explosion-proof submersible electric pump is a high-efficiency equipment designed for safe working environments. This electric pump integrates advanced technology, which not only ensures its safety in flammable and explosive environments, the small power in the series that is very portable and effectively improves work efficiency.

• Voltage: 380/660V,660/1140V,400V,440V,460V, customizable options are available.
• Medium: Temperature not exceeding 40°C, PH 4-10, medium density ≤ 1100 kg/m³.(Customizable for special requirements).
• Submersion depth: ≤20m.
• Materials suitable for highly corrosive fluids can be customized.
• The diameter of solid particles in the medium should comply with the regulations of MT/T671-2005. Please specify any special requirements when ordering.
• MT818.5-2009 flame-retardant cable for coal mines.

• Applicable to places with explosion hazards such as methane (gas), coal dust, etc.
• It can transport mixed sewage containing insoluble substances such as silt, coal slime, coal slag, and fiber.
• Applicable to buildings, hospitals, residential areas, municipal engineering, road construction, factory sewage discharge, etc., and discharges wastewater, rainwater and sewage containing solid particles and long fibers.
• The material of the product can be changed to cope with the situation of conveying corrosive liquids.

The outlet of the BQS external submersible pump is located at the bottom of the whole machine. Water is discharged directly from the pump body through the drain port. It has a simple structure, is light and practical, and has strong pollution-passing capacity. The motor housing of the internal structure has an interlayer, and the liquid in the interlayer helps cool the pump. It does not require special personnel to supervise, greatly reducing labor costs. The semi-internal structure combines the advantages of the two structures well.

FAQ


Q1: What if the model I need is not in your catalog?
A: We can accept customization, including but not limited to flow rate, head, material, function, etc. You only need to tell me the relevant information, and we have a professional technical team to provide you with plans and drawings.

Q2: How do I place an order?
A: Send us an inguiry - Tell us your needs and usage scenarios - Customize drawings and samples - Discuss details - Modify and confirm - Sign a contract/Deposit - Mass production - Final payment and delivery - Further cooperation.

Q3: How to transport?
A: We have a variety of transportation options. If there is a port in your area, sea transportation is an economical choice. If you are in a hurry to use it, we can ship it by air for you. If you don’t have your own freight forwarder, we can contract the relevant work from departure to arrival at the destination port.

Q4: Why choose you?
A: ATPUMP has been working with top domestic experts to develop and upgrade products since 2005. So far, it has participated in thousands of projects and cooperated with many major domestic projects. In China, we are the only one that can manufacture 1.5-4500kW products. We are the first choice for many domestic companies and projects, which proves that we have sufficient technical strength and quality support.

Q5: What guarantees do I have when buying your products?

A: Our after-sales service implements the "2-4-24 standard". 2-hour response, telephone remote guidance within 4 hours, and solutions within 24 hours. If there is a need, we can provide door-to-door after-sales service.

Q6: I want to be your dealer, what are the conditions?

A: No problem at all, dear, it is recommended that you purchase a sample first to try it out. If you have any special needs and modification suggestions, our technical team is at your service at any time. Looking forward to our further cooperation!
