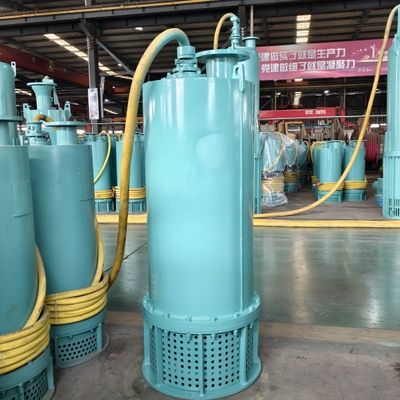

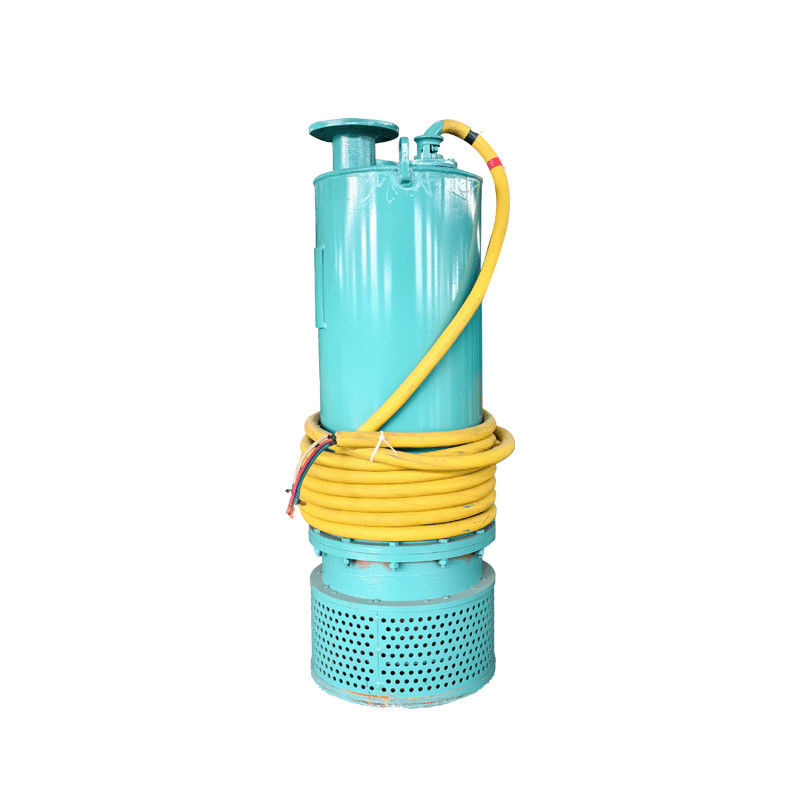

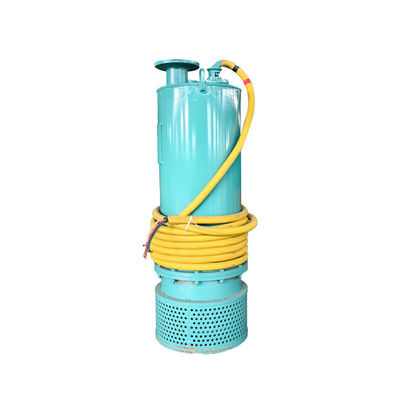

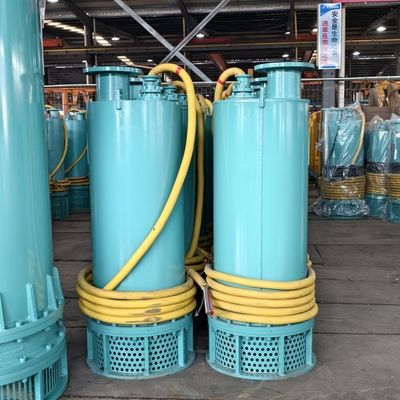

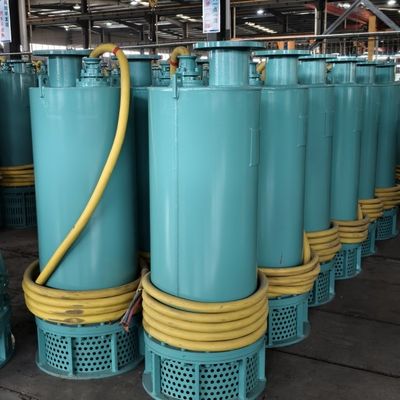

55kW Exd High Head Dewatering Pumps / Explosion Proof Sump Pump 90 M³/H Rated Flow

Brand Name: ATPUMP
Model Number: BQS90-120/2-55/N
MOQ: 1
Price: USD 219-71999 / set
Packaging Details: Wooden box
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE、ISO 9001、ISO 14001、ISO45001
Document:
BQS technical parameters.pdf
Rated Flow:
90 M³/h
Rated Head:
120 M
Rated Power:
55 Kw
Rated Voltage:
380/660 Or 660/1140 V
Rated Current:
107.3/61.95 Or61.95/35.77 A
Synchronous Speed:
3000 R/min
Efficiency:
43.8
Maximum Diameter Of Passed Particles:
11 Mm
Outlet Diameter:
150 Mm
Color:
RAL 6029
Material:
QT600-3, SS304, SS316, SS316L, Duplex Stainless Steel,high Chromium Alloy
Medium Temperature:
≤40℃
PH:
4-10
Medium Density:
≤1100 Kg/m³
Submergence Depth:
≤20m
Cable Length（Standard）:
15m
Cable Standards:
MT818.5-2009 Flame-retardant Cable
Motor Installation Form:
Built-in Sturcture
Customizable:
Yes
Explosion-Proof Rating:
Exd
Insulation Rating:
F/H
Frequency:
50Hz / 60Hz
Pump Type:
Submersible Electric Pump
Power Range:
1.5-315kW
Drive:
Electric Pump
Supply Ability:
100000 sets per year
Highlight:

exd high head dewatering pumps

,

explosion proof sump pump 90 m³/h

,

55kw explosion proof sump pump

Product Description

55kW High-Head Large-Flow Explosion-Proof Submersible Pump For Mining and Oil Extraction Powerful and Reliable55kW Exd High Head Dewatering Pumps / Explosion Proof Sump Pump 90 M³/H Rated Flow 0



BQS series, the earliest and most mature product line of ATPUMP, boasts a power range from 1.5 kW to 315 kW, with flow capacities spanning from 10 m³/h to 2500 m³/h, and head ranges from 7 meters to 800 meters. This series has filled a long-standing market gap in domestically produced explosion-proof submersible pumps for mining applications within China. Equipped with 56 patents, including the "no overload at any head point" technology which significantly extends pump service life, the BQS series represents a significant advancement in the field.



Collaborating with 28 senior technical engineers and professors from leading domestic universities, ATPUMP has tackled key challenges in explosion-proof submersible pump design, such as structural optimization, parameter refinement, manufacturing processes, operational efficiency, sealing against leaks, and material application. These efforts have culminated in a robust manufacturing process for motors and pumps, establishing ATPUMP as a leader in China’s explosion-proof submersible pump industry.

55kW Exd High Head Dewatering Pumps / Explosion Proof Sump Pump 90 M³/H Rated Flow 1

55kW Exd High Head Dewatering Pumps / Explosion Proof Sump Pump 90 M³/H Rated Flow 2

No. Model



Rated flow

(m3/h)



Rated head

(m)



Rated power

(kW)



Rated voltage

(V)



Synchronous

speed

(r/min)



Efficiency

(%)

Outlet
diameter
(mm)
1
BQS90-120/2-55/N
 90 120 55
380/660 or 660/1140
 3000 43.8 150
2 BQS120-80-55/N 120 80 55 380/660 or 660/1140 3000 46.7 150
3
BQS150-70-55/N
 150 70 55 380/660 or 660/1140 3000 50.4 150
4 BQS200-60-55/N 200 60 55 380/660 or 660/1140 3000 53.8 150
5 BQS220-50-55/N 220 50 55 380/660 or 660/1140 3000 54.1 150

























55kW Exd High Head Dewatering Pumps / Explosion Proof Sump Pump 90 M³/H Rated Flow 3

  • Voltage: 380/660V,660/1140V,400V,440V,460V, customizable options are available.
  • Medium: Temperature not exceeding 40°C, PH 4-10, medium density ≤ 1100 kg/m³.(Customizable for special requirements).
  • Submersion depth: ≤20m.
  • Materials suitable for highly corrosive fluids can be customized.
  • The diameter of solid particles in the medium should comply with the regulations of MT/T671-2005. Please specify any special requirements when ordering.
  • MT818.5-2009 flame-retardant cable for coal mines.

55kW Exd High Head Dewatering Pumps / Explosion Proof Sump Pump 90 M³/H Rated Flow 4

  • Applicable to places with explosion hazards such as methane (gas), coal dust, etc.
  • It can transport mixed sewage containing insoluble substances such as silt, coal slime, coal slag, and fiber.
  • Applicable to buildings, hospitals, residential areas, municipal engineering, road construction, factory sewage discharge, etc., and discharges wastewater, rainwater and sewage containing solid particles and long fibers.
  • The material of the product can be changed to cope with the situation of conveying corrosive liquids.

55kW Exd High Head Dewatering Pumps / Explosion Proof Sump Pump 90 M³/H Rated Flow 5

55kW Exd High Head Dewatering Pumps / Explosion Proof Sump Pump 90 M³/H Rated Flow 6

55kW Exd High Head Dewatering Pumps / Explosion Proof Sump Pump 90 M³/H Rated Flow 7

DOUBLE-END MECHANICAL SEAL



Precision machining, high efficiency；

Excellent sealing performance, long service life.



ExdI/ExdbII EXPLOSION-PROOF MOTOR



Professional explosion-proof motors；
Boast stable performance and powerful driving force.



HIGH-PRECISION ROTOR



High-precision finish-machined rotor;

Operates smoothly with low shaft end runout.



HIGH QUALITY BEARING



High-load bearings;

High precision of components, reliable operation.



SUPPORT CUSTOMIZATION



Customizable stainless steel material;

Corrosion and rust resistant pump will be more durable.



PRECISION MEASUREMENT IN THREE COORDINATES



High precision, improve measurement efficiency;

Reduce human error.





55kW Exd High Head Dewatering Pumps / Explosion Proof Sump Pump 90 M³/H Rated Flow 8

55kW Exd High Head Dewatering Pumps / Explosion Proof Sump Pump 90 M³/H Rated Flow 9

55kW Exd High Head Dewatering Pumps / Explosion Proof Sump Pump 90 M³/H Rated Flow 10

FAQ


Q1: What if the model I need is not in your catalog?
A: We can accept customization, including but not limited to flow rate, head, material, function, etc. You only need to tell me the relevant information, and we have a professional technical team to provide you with plans and drawings.



Q2: How do I place an order?
A: Send us an inguiry - Tell us your needs and usage scenarios - Customize drawings and samples - Discuss details - Modify and confirm - Sign a contract/Deposit - Mass production - Final payment and delivery - Further cooperation.



Q3: How to transport?
A: We have a variety of transportation options. If there is a port in your area, sea transportation is an economical choice. If you are in a hurry to use it, we can ship it by air for you. If you don’t have your own freight forwarder, we can contract the relevant work from departure to arrival at the destination port.



Q4: Why choose you?
A: ATPUMP has been working with top domestic experts to develop and upgrade products since 2005. So far, it has participated in thousands of projects and cooperated with many major domestic projects. In China, we are the only one that can manufacture 1.5-4500kW products. We are the first choice for many domestic companies and projects, which proves that we have sufficient technical strength and quality support.



Q5: What guarantees do I have when buying your products?

A: Our after-sales service implements the "2-4-24 standard". 2-hour response, telephone remote guidance within 4 hours, and solutions within 24 hours. If there is a need, we can provide door-to-door after-sales service.



Q6: I want to be your dealer, what are the conditions?

A: No problem at all, dear, it is recommended that you purchase a sample first to try it out. If you have any special needs and modification suggestions, our technical team is at your service at any time. Looking forward to our further cooperation!
